Supermicro SYS-530T-I Mini-Tower SuperWorkstation (SYS-530T-I)



Server-grade design and features for enhanced reliability and remote monitoring

The Supermicro 530T-I entry-level system delivers exceptional performance and expandability at an attractive cost-effective price. Powered by the latest Intel® Xeon® E-2300 series processors, up to 128GB of DDR4-3200 memory, and remote management (IPMI), this single-processor system is ideal for small office/home office (SOHO) or small/medium-sized businesses (SMB) for storage and centralized data backup system applications.



SYS-530T-I Side View





  • Key Features/Applications: Entry-Level System for SOHO/SMB, Storage, and Centralized Data Backup Systems
  • CPU: Single Intel® Xeon® E-2300 Series Processor, up to 8 Cores
  • Chassis: Mini-Tower
  • Drive: Up to 4x 3.5″ SATA + 1x M.2 NVMe Drive Bays
  • RAM: Up to 128GB of DDR4 ECC UDIMM in 4 DIMM Slots
  • Network Ports: 2x 1GbE RJ45 LAN Ports
SKU: SYS-530T-I Categorii: , , , , ,
SuperWorkstation SYS-530T-I
Processor
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU(s)
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® C252
Network Connectivity
  • 2 RJ45 1GbE with Intel® I210-AT

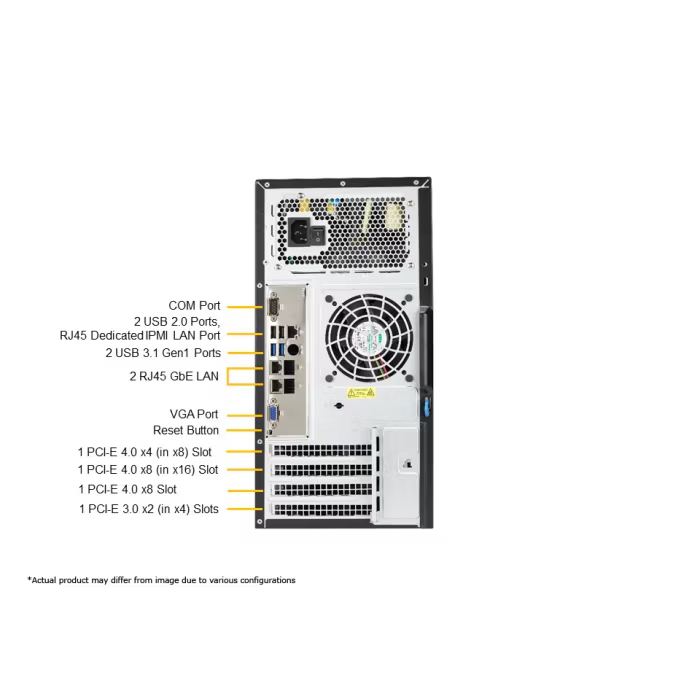

Input / Output
USB
  • 2 USB 2.0 Type-A port(s) (rear)
Video
  • 1 VGA port(s)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI 6.0 Power Management
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
Chassis
Form Factor
  • mini-tower
Model
  • CSE-731I-404B

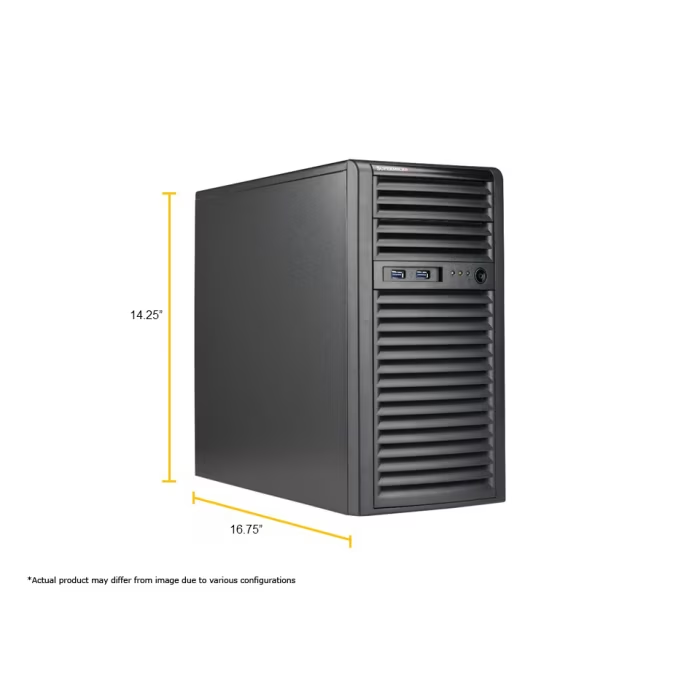

Dimensions and Weight
Height
  • 14.25″ (362 mm)
Width
  • 7.25″ (184 mm)
Depth
  • 16.75″ (425 mm)
Package
  • 20″ (H) x 11″ (W) x 21″ (D)
Weight
  • Gross Weight: 20 lbs (9.07 kg)
  • Net Weight: 16 lbs (7.26 kg)
Available Color
  • Black

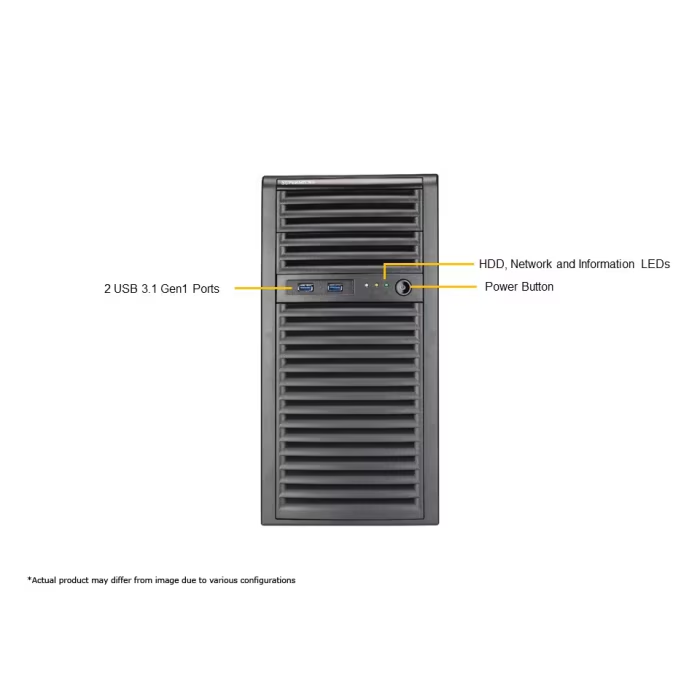

Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power LED
  • System Overheat LED
Buttons
  • Power On/Off button
Port
  • USB 3.0 Port(s)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 internal fixed 3.5″ SATA drive bay(s)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110)
Peripheral Bays
  • 2 5.25″ bay(s)
System Cooling
Fans
  • 1x 90mm Fan(s)
Power Supply
QtyWithPsu
  • 1x 400W
Description
  • 1x 400W Gold Level (90%) power supply
Dimension (WxHxL)
  • 150 x 86 x 140 mm
AC Input
  • 400W: 100-240Vac / 50-60Hz
+12V
  • Max: 12.62A / Min: 0.05A (100Vac-240Vac)
    Max: 12.62A / Min: 0A (100Vac-240Vac)
5V SB
  • Max: 2.23A / Min: 0A
Output Type
  • 24pin ATX
Certification
  •   Gold Level[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
