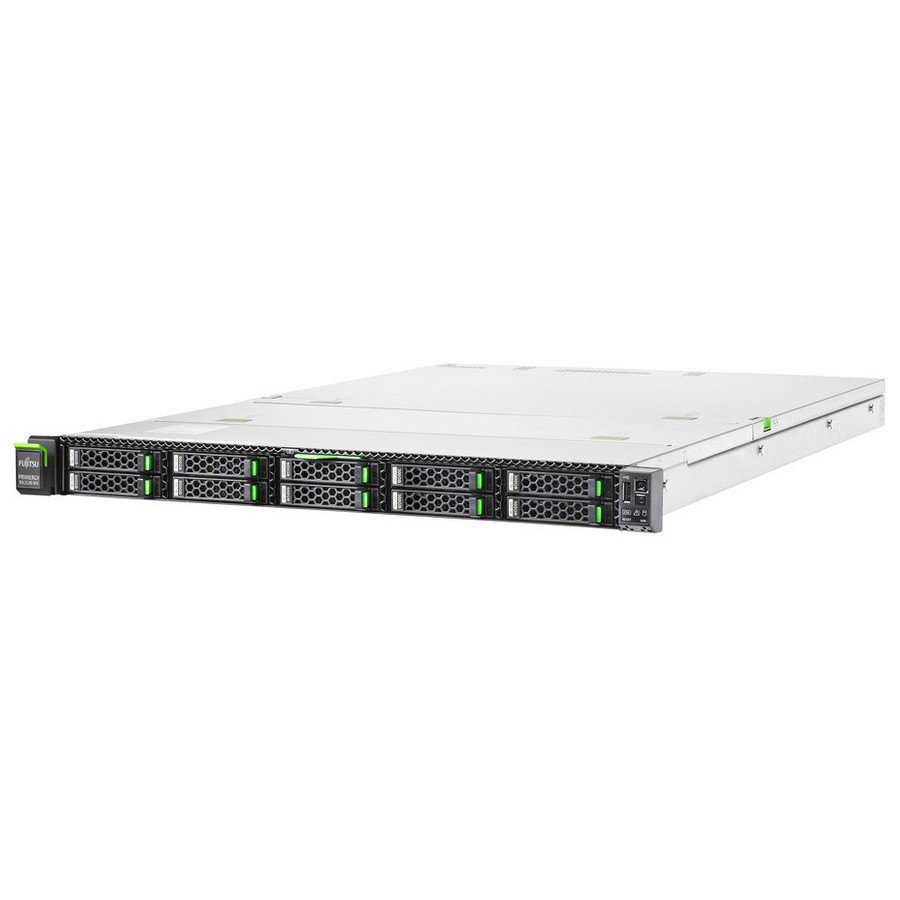

FUJITSU Server PRIMERGY RX2530 M5
PY RX2530 M5 8X 2.5 /ERP LOT9/ XEON SILVER 4208/INDEPENDENT MODE/ 16 GB RG 2933 1R/4X1GB OCP IF/ RMK F1-CMA SL/RACK MOUNT 1U SYM/
Standard warranty: 3 years, On-Site Service, 5 days / 9 hours (5×9, local business hours), FTS wide / FTS
- Maximum productivity in a space-saving 1U housing
- Ideal for virtualization, scale-out scenarios and small databases
- Support of Intel® Optane™ DC persistent memory
- Up to 7.5 TB memory for highest performance demands
- GPU support for VDI and graphic-intensive computing
| Chipset | Intel® C624 |
| Mainboard type | D3383-B |
| Product Type | Dual Socket Rack Server |
| Processor | Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor 1 – 2 x Intel® Xeon® Processor Scalable Family |
| Memory | 8 GB – 8 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules) |
| Memory slots | 24 (12 DIMMs per CPU, 6 channels with 2 slots per channel) |
| Memory protection | Advanced ECC, Memory Scrubbing, SDDC, Rank sparing memory support, Memory Mirroring support |
| Drives (optional) | DVD supermulti, ultraslim, SATA I |
| PCI-Express 3.0 x8 | 1 x Low profile (2nd processor required for slot 4) |
| PCI-Express 3.0 x16 | 3 x Low profile (2nd processor required for slot 4); 1×16 if fh slot selected |
| Accessible drive bays | 1 x 5.25/0.4-inch for CD-RW/DVD |
| Optional accessible drives | Ultra slim 9.5mm optical drive (optional) n/a Not for 10 x 2.5-inch base unit. All possible options described in relevant system configurator. |
| Storage drive bays | up to 8 x 2.5-inch, 10 x 2.5-inch or 4 x 3.5-inch baseunit up to 4x 3.5″ (LFF) hot plug drives (SAS/SATA) up to 4x 2.5″ (SFF) hot plug drives (SAS/SATA); option for upgrade to 8x 2.5″ (SFF) hot plug drives up to 8x 2.5″ (SFF) hot plug drives (SAS/SATA) up to 10x 2.5″ (SFF) hot plug drives (SAS/SATA); thereof up to 4x bays prepared for 2.5″ PCIe SSD up to 10x 2.5″ (SFF) hot plug drives (SATA or PCIe SSD) |
| LAN Controller | 2 x 1 Gbit/s onboard, Optional DynamicLoM OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28 (only for 10x HDD/SSD base unit) |
| Remote Management | Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible |
| USB ports | 5 x USB 3.0 (2x front, 2x rear, 1x internal) – for base unit with 10x 2.5″ drives 1x USB 2.0 front only |
| Graphics | 2 x VGA (thereof 1x front optional – not for base unit with 10x 2.5″ drives) |
| Management LAN (RJ45) | 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard LAN controller port, speed and connector is related to installed interface card. |
| Trusted Platform Module (TPM) | Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option) |
| Power supply configuration | 1 x hot-plug power supply or 2 x hot-plug power supply for redundancy |
| Active power (max. configuration) | 883 W |
| Weight | up to 16 kg |
| Rack (W x D x H) | 483 mm (Bezel) / 435mm (Body) x 770.7 x 43 mm |
| Mounting Depth Rack | 748.2 mm |
| DC Infrastructure Management | Infrastructure Manager (ISM) Essential Edition Advanced Edition |
| Server Management | Infrastructure Manager (ISM) Essential Edition Advanced Edition, ServerView Suite |
| Operating system | http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Warranty period | 3 years |
| Warranty type | Onsite warranty |
| Service Lifecycle | 5 years after end of product life |
| Service Weblink | http://www.fujitsu.com/emeia/products/product-support-services/ |
| Support Pack Options | Globally available in major metropolitan areas: 9×5, Next Business Day Onsite Response Time 9×5, 4h Onsite Response Time (depending on country) 24×7, 4h Onsite Response Time (depending on country) |
Recommended Service | 24×7, Onsite Response Time: 4h – For locations outside of EMEA please contact your local Fujitsu partner. |
