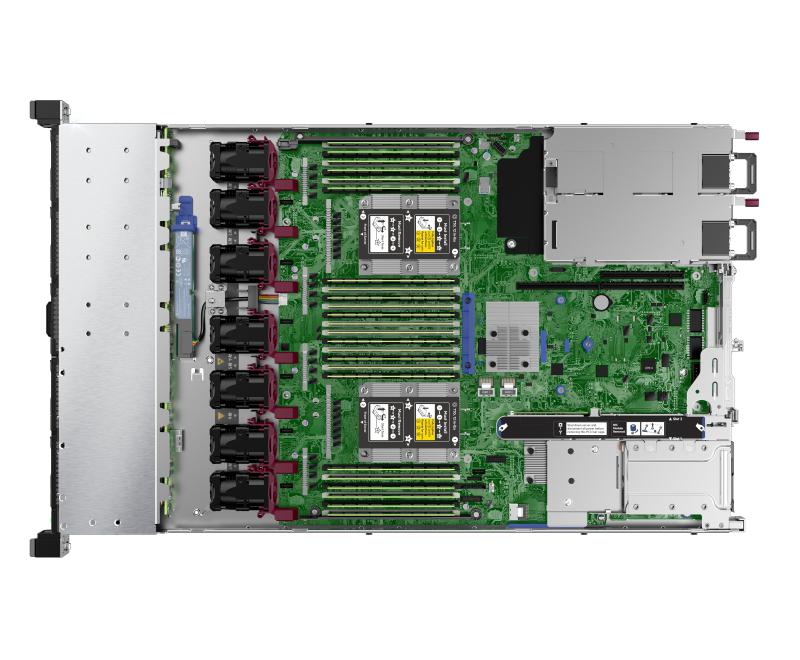

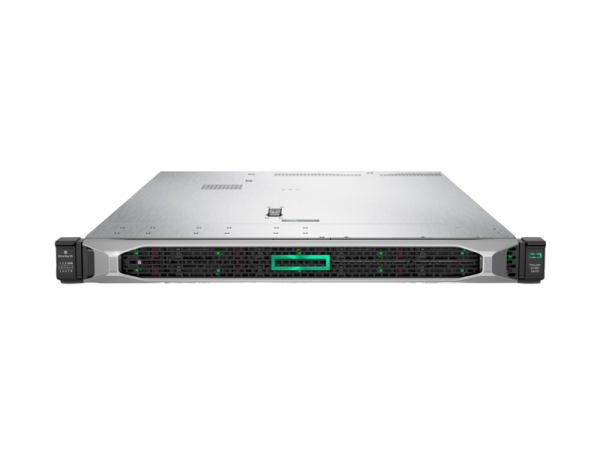

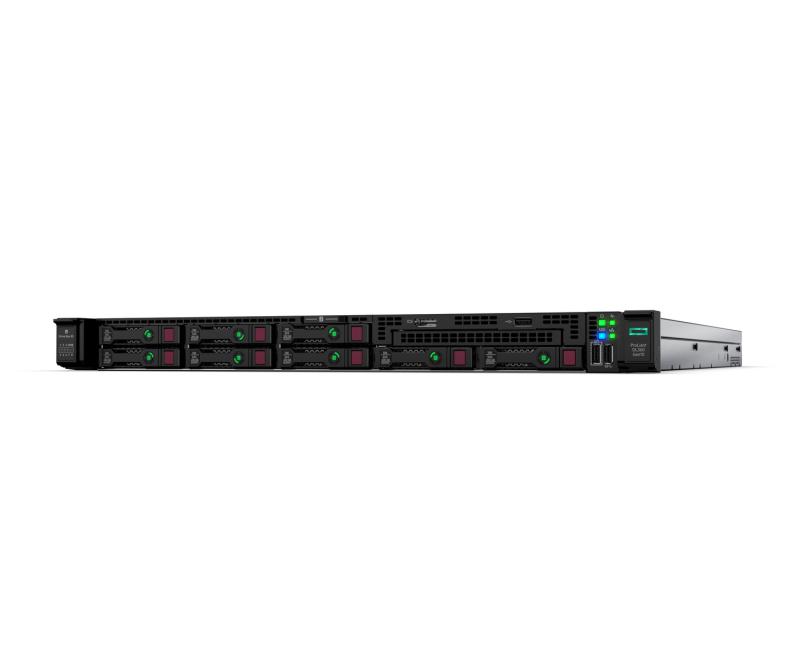

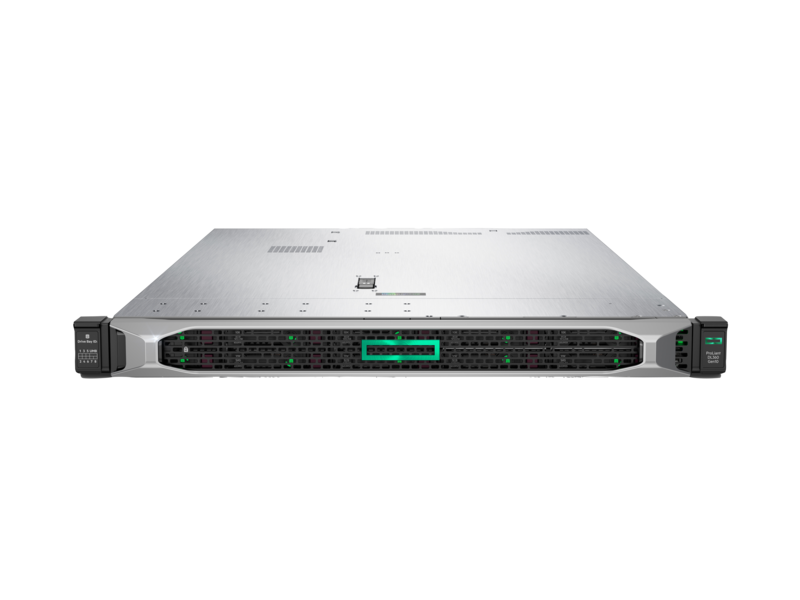

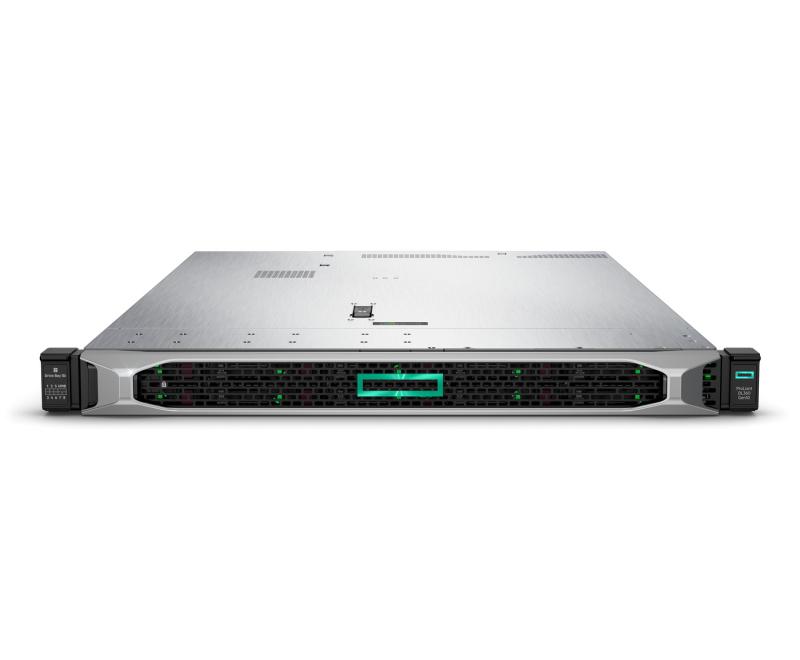

HPE SERVER DL360 GEN10 4208 1P/16G NC 8SFF SVR P19774-B21 (P19774-B21)

Lifecycle

• Obsolete Date 29-02-2024
• End of support date 31-10-2028

Specifications

• Number of processors 2, maximum depending on model
• Optical drive type None included
• Power supply type 1 HPE 500W Flex Slot Platinum hot-plug power supply
• Included hard drives None ship standard, 8 SFF drives supported
• System fan features 5 single rotor hot plug fans
• Processor speed 2.1 GHz
• Storage controller HPE Smart Array P408i-a/2 GB and Smart Storage Battery
• Weight 13.04 kg minimum, 16.27 kg maximum
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
• Network controller HPE Ethernet 1Gb 4-port 366FLR Adapter
• Processor Name Intel® Xeon® Scalable 4208 (8 core, 2.1 GHz, 85W)
• Processor number 1 processor
• Weight 28.74 lb minimum, 35.86 lb maximum
• Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
• Product Dimensions (imperial) 1.69 x 17.11 x 27.83 in
• Expansion slots 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs
• Memory, standard 16 GB (1 X 16GB) RDIMM
• Memory type HPE DDR4 SmartMemory
• Product Dimensions (metric) 4.29 x 43.46 x 70.7 cm
• Processor cache 11 MB L3
• Processor core available 8 core
• NVDIMM rank N/A
• NVDIMM type N/A
• NVDIMM capacity N/A
• Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
• Form factor 1U
