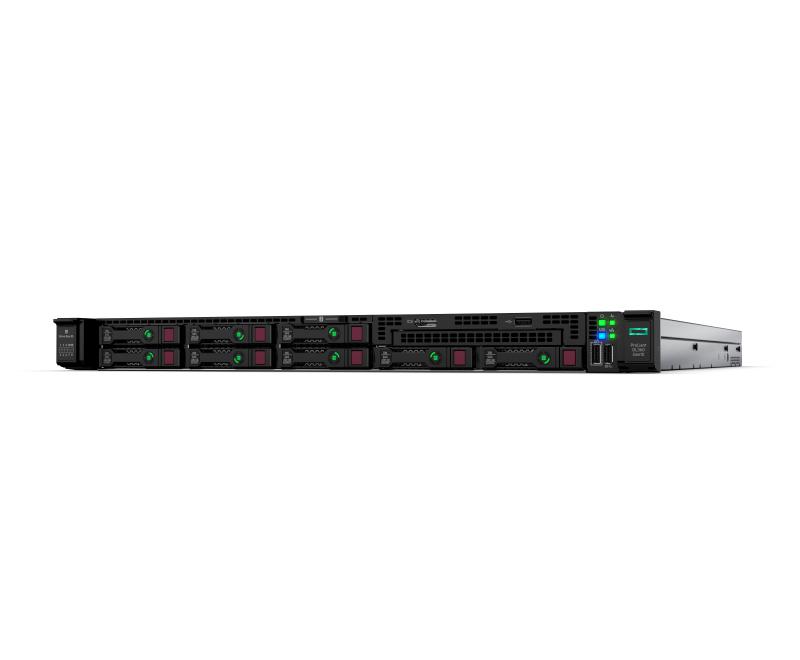

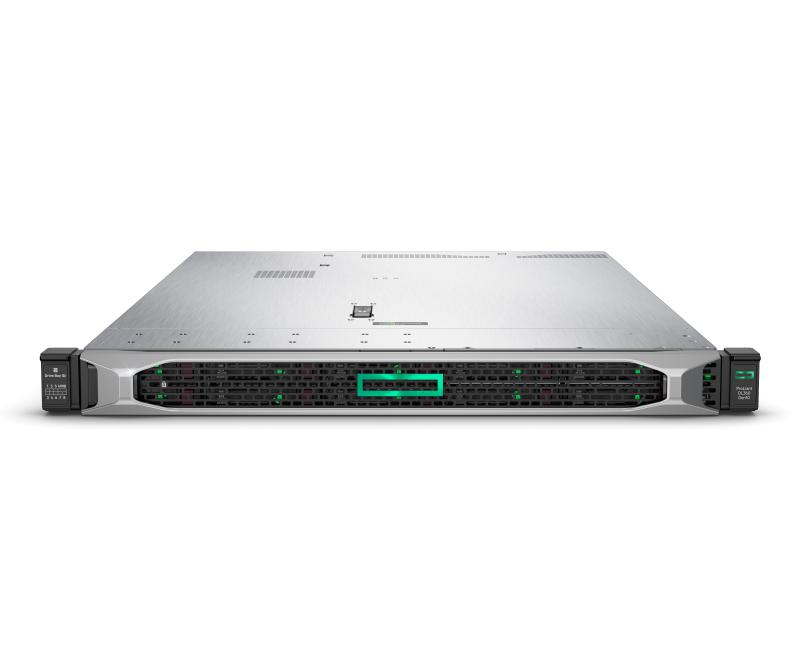

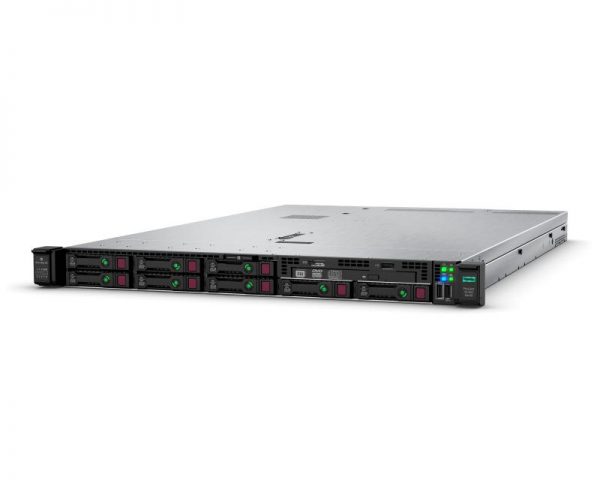

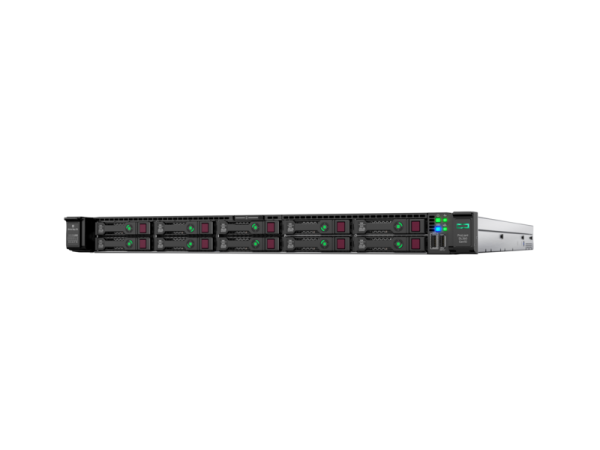

HPE SERVER DL360 GEN10 5218R/P24740-B21 (P24740-B21)

Lifecycle

• Obsolete Date 29-02-2024
• End of support date 31-10-2028

Specifications

• Network controller HPE Ethernet 10Gb 2-port 562FLR-T Adapter
• Form factor 1U
• Number of processors 2, maximum depending on model
• Weight 28.74 lb minimum, 35.86 lb maximum
• Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
• Product Dimensions (imperial) 1.69 x 17.11 x 27.83 in
• Product Dimensions (metric) 4.29 x 43.46 x 70.7 cm
• Processor cache 27.50 MB L3
• Processor core available 20 core
• Processor speed 2.1 GHz
• Processor Name Intel® Xeon® Scalable 5218R (20 cores, 2.1 GHz, 125W)
• Weight 13.04 kg minimum, 16.27 kg maximum
• NVDIMM rank N/A
• NVDIMM type N/A
• NVDIMM capacity N/A
• Expansion slots 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs
• Memory, standard 32 GB (1 X 32GB) RDIMM
• Memory type HPE DDR4 SmartMemory
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
• Storage controller HPE Smart Array S100i
• Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
• System fan features 5 standard hot plug fans
• Included hard drives None ship standard, 8 SFF drives supported
• Optical drive type None included
• Power supply type 1 HPE 800W Flex Slot Platinum hot-plug power supply
• Processor number 1 processor
