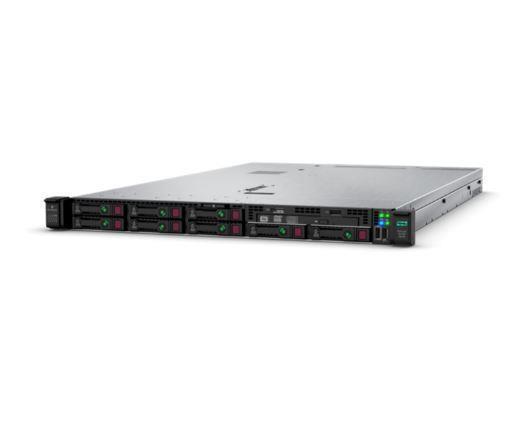

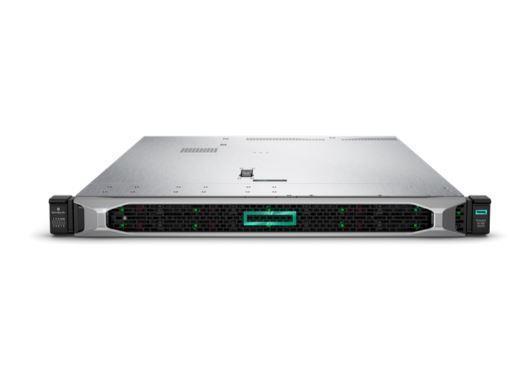

HPE SERVER DL360 GEN10 5222 1P/32G NC 8SFF SVR P19178-B21 (P19178-B21)

Lifecycle

• Obsolete Date 29-02-2024
• End of support date 31-10-2028

Specifications

• Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
• Power supply type 1 HPE 800W Flex Slot Platinum hot-plug power supply
• Included hard drives None ship standard, 8 SFF drives supported
• Optical drive type None included
• System fan features 5 single rotor hot plug fans
• Weight 28.74 lb minimum, 35.86 lb maximum
• Memory, standard 32 GB (1 X 32 GB) RDIMM
• Memory type HPE DDR4 SmartMemory
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
• Network controller HPE Ethernet 10/25 Gb 2-port 640FLR -SFP28 Adapter
• Form factor 1U
• Processor core available 4 core
• Expansion slots 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs
• Storage controller HPE Smart Array P408i-a/2 GB plus Smart Storage Battery
• Number of processors 2, maximum depending on model
• Weight 13.04 kg minimum, 16.27 kg maximum
• Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
• Product Dimensions (imperial) 1.69 x 17.11 x 27.83 in
• Product Dimensions (metric) 4.29 x 43.46 x 70.7 cm
• Processor cache 16.5 MB L3
• NVDIMM rank N/A
• NVDIMM type N/A
• NVDIMM capacity N/A
• Processor speed 3.8 GHz
• Processor Name Intel® Xeon® Scalable 5222 (4-core, 3.8 GHz, 105W)
• Processor number 1 processor
