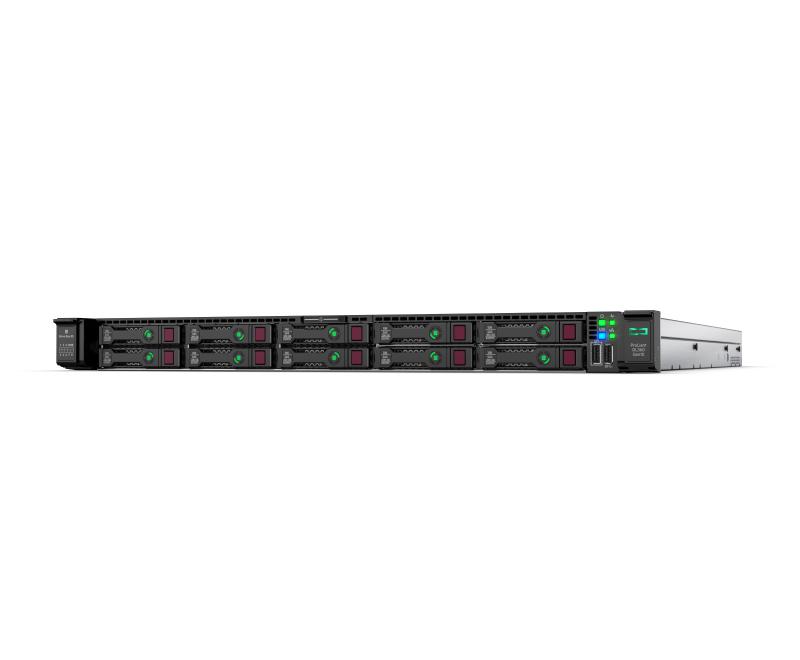

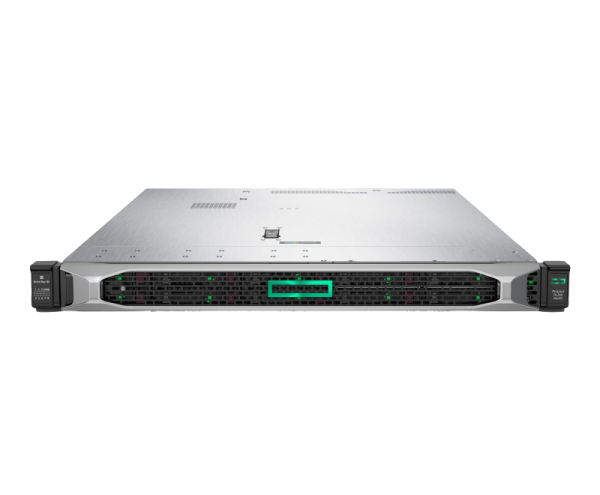

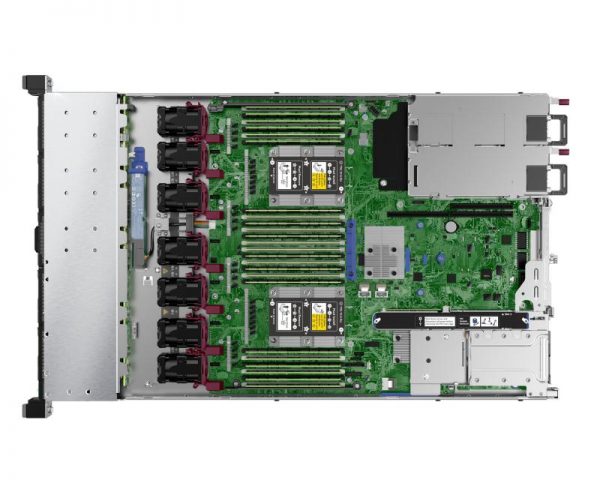

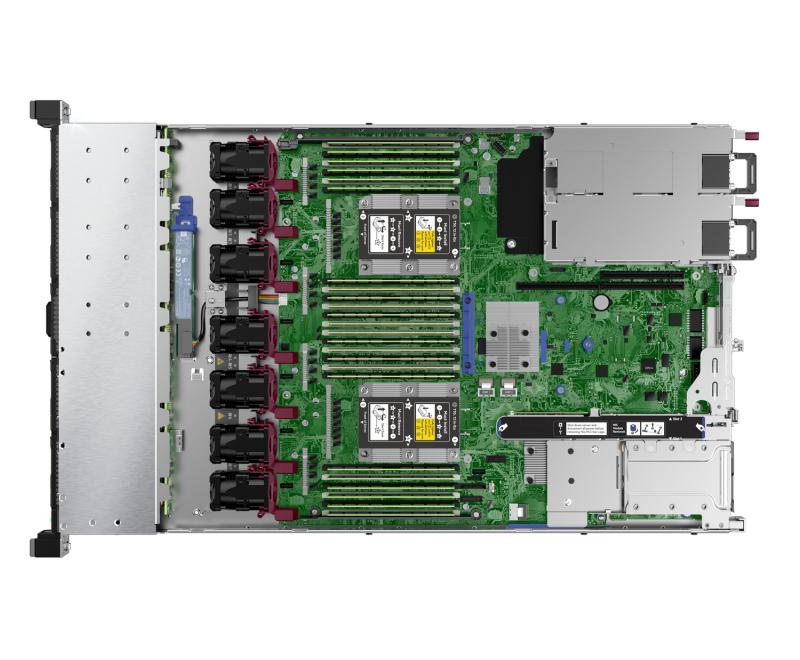

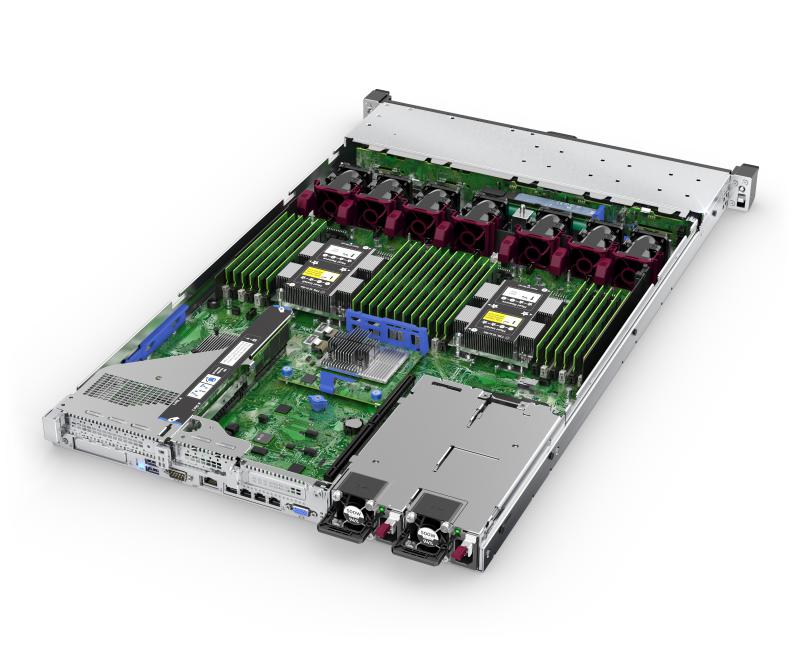

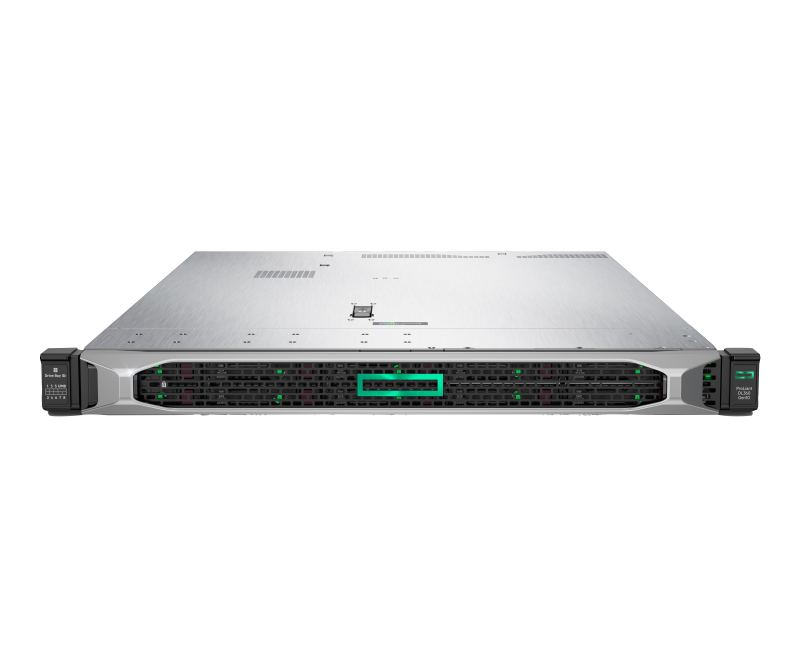

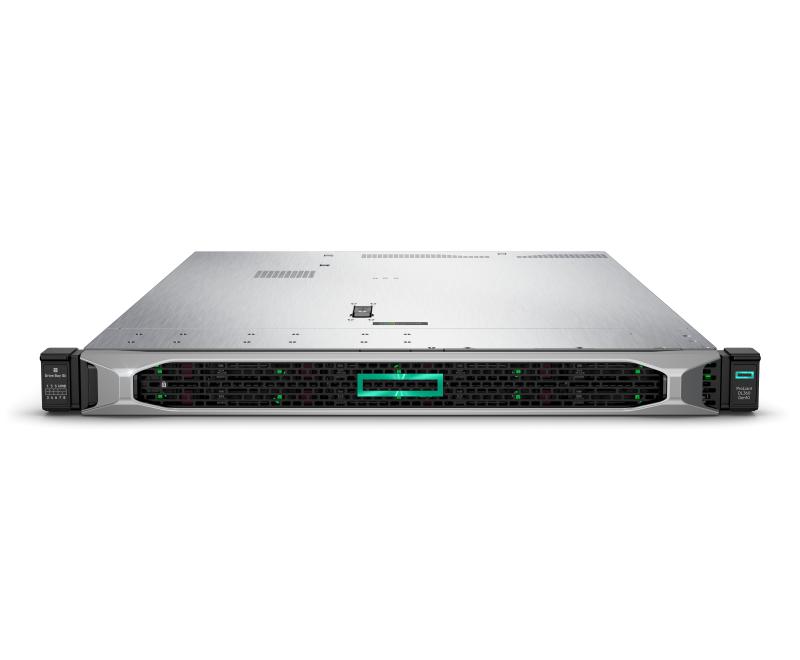

HPE SERVER DL360 GEN10 5222/P40404-B21 (P40404-B21)

Lifecycle

• Obsolete Date 29-02-2024
• End of support date 31-10-2028

Specifications

• Power supply type 1 HPE 800W Flex Slot Platinum hot-plug power supply
• System fan features 5 standard hot plug fans
• Included hard drives None ship standard, 8 SFF drives supported
• Optical drive type None included
• Storage controller HPE Smart Array P408i-a/2 GB plus Smart Storage Battery
• NVDIMM capacity N/A
• NVDIMM type N/A
• NVDIMM rank N/A
• Network controller HPE Ethernet 10/25Gb 2-port FLR-SFP28 BCM57414 Adapter
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
• Form factor 1U
• Memory type HPE DDR4 SmartMemory
• Memory, standard 32 GB (1 X 32GB) RDIMM
• Expansion slots 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs
• Number of processors 2, maximum depending on model
• Weight 28.74 lb minimum, 35.86 lb maximum
• Processor cache 16.5 MB L3
• Processor number 1 processor
• Processor Name Intel® Xeon® Scalable 5222 (4 core, 3.8 GHz, 105W)
• Processor speed 3.8 GHz
• Processor core available 4 core
• Product Dimensions (metric) 4.29 x 43.46 x 70.7 cm
• Product Dimensions (imperial) 1.69 x 17.11 x 27.83 in
• Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
• Weight 13.04 kg minimum, 16.27 kg maximum
• Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
