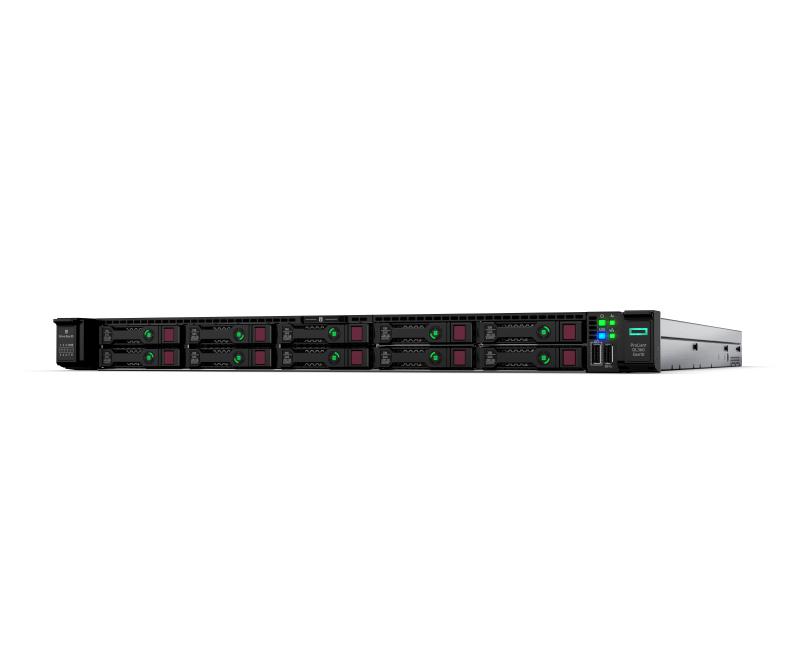

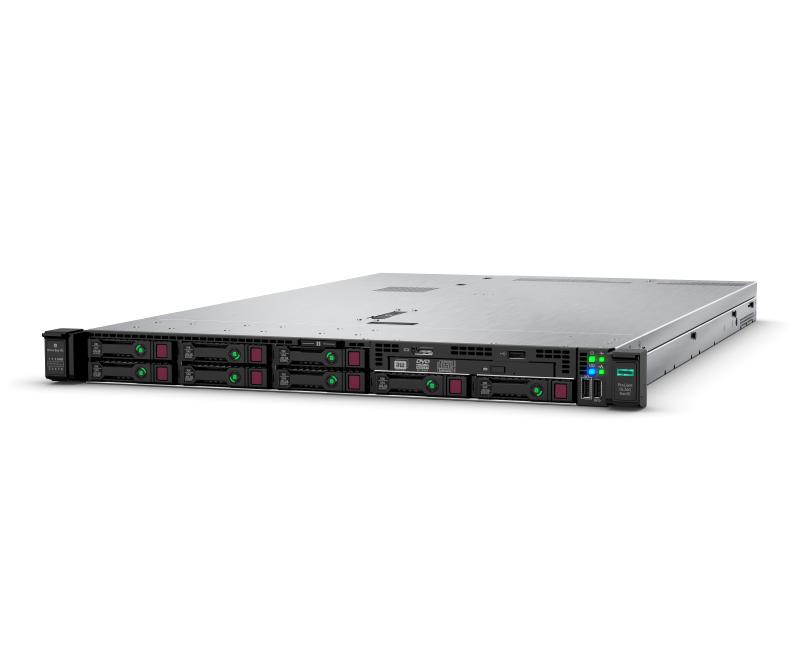

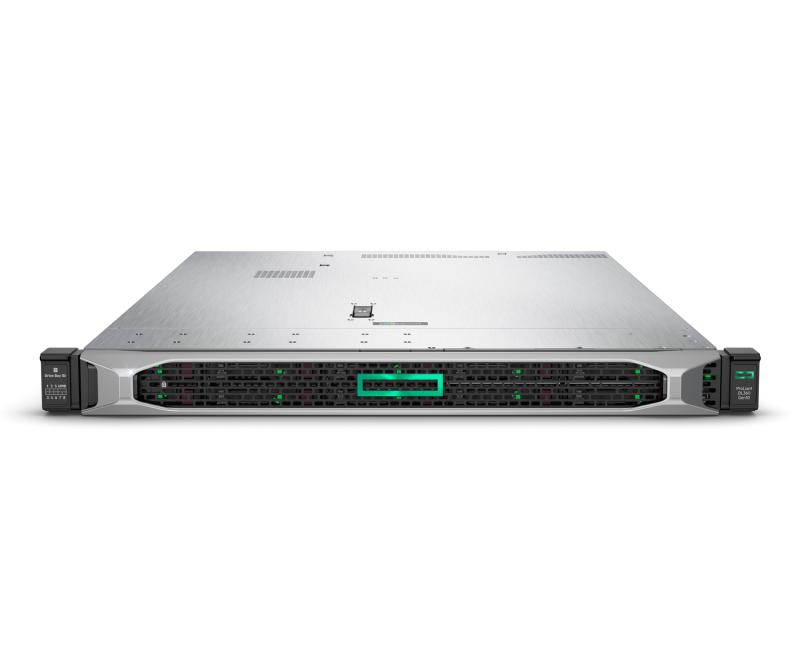

HPE SERVER DL360 GEN10 6248 2P/64G NC 8SFF SVR P19772-B21 (P19772-B21)

Lifecycle

• Obsolete Date 29-02-2024
• End of support date 31-10-2028

Specifications

• Number of processors 2, maximum depending on model
• System fan features 7 single rotor hot plug fans
• Power supply type 2 HPE 800W Flex Slot Platinum hot-plug power supplies
• Included hard drives None ship standard, 8 SFF drives supported
• Optical drive type None included
• Weight 28.74 lb minimum, 35.86 lb maximum
• Weight 13.04 kg minimum, 16.27 kg maximum
• Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
• Product Dimensions (imperial) 1.69 x 17.11 x 27.83 in
• Product Dimensions (metric) 4.29 x 43.46 x 70.7 cm
• Processor cache 27.5 MB L3
• Processor core available 20 core
• Processor speed 2.5 GHz
• Processor Name Intel® Xeon® Scalable 6248 (20-Core, 2.5 GHz, 150W)
• Processor number 2 processors
• Expansion slots 3 PCIe 3.0, for detailed descriptions reference the QuickSpecs
• Memory, standard 64GB (2 X 32GB) RDIMM
• Memory type HPE DDR4 SmartMemory
• Form factor 1U
• Storage controller HPE Smart Array P408i-a/2 GB plus Smart Storage Battery
• Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
• NVDIMM rank N/A
• NVDIMM type N/A
• NVDIMM capacity N/A
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
• Network controller HPE Ethernet 10/25 Gb 2-port 640FLR -SFP28 Adapter
