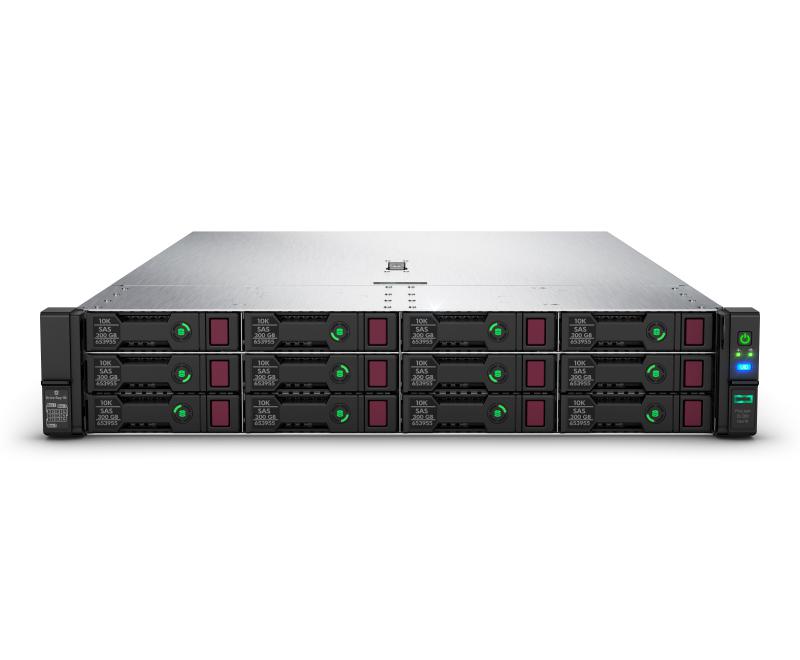

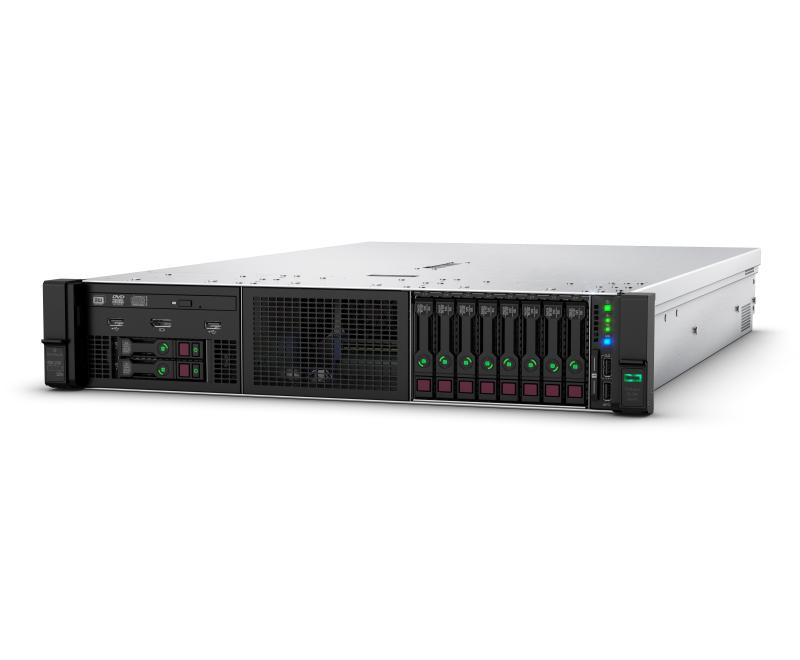

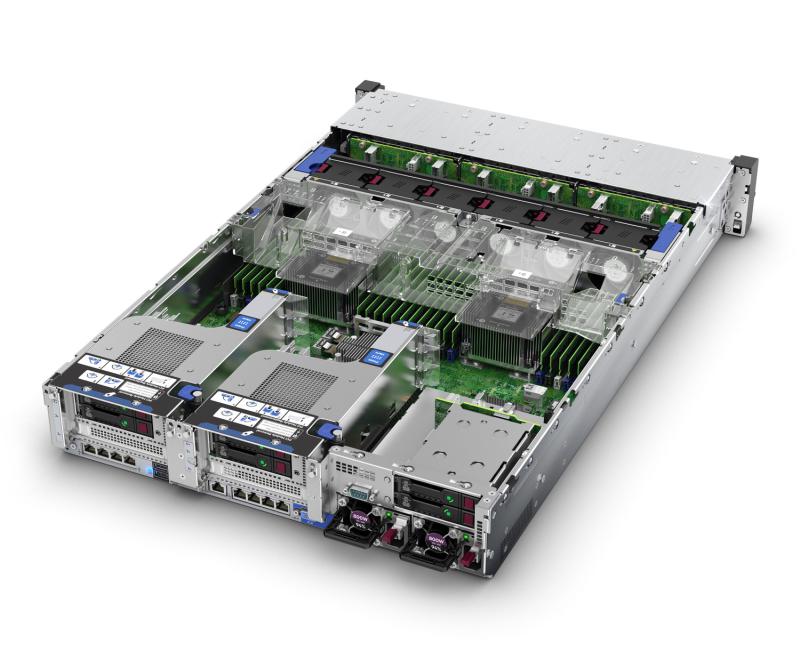

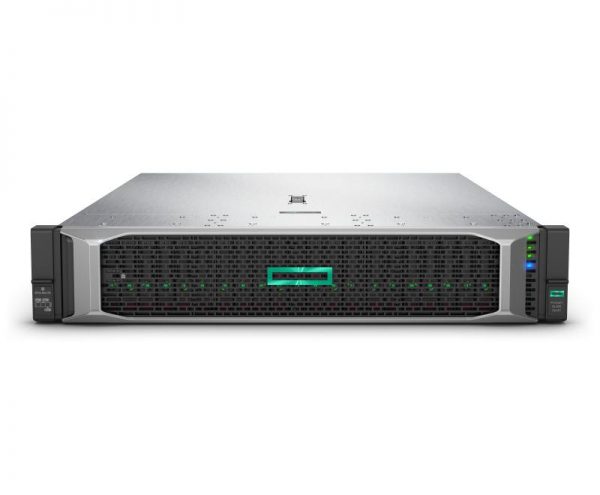

HPE SERVER DL380 GEN10 5220 1P/32G NC 8SFF SVR P20248-B21
Lifecycle
- Obsolete Date 29-02-2024
- End of support date 31-10-2028
Specifications
- Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)
- Network controller 1 HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter plus optional stand-up card *NOTE: No embedded networking
- Expansion slots 8, for detailed descriptions reference the QuickSpecs
- Memory, standard 32 GB (1x 32GB) RDIMM
- Memory type HPE DDR4 Smart Memory with optional Intel Optane Persistent Memory for HPE
- Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
- Form factor 2U
- NVDIMM rank Not applicable
- NVDIMM type HPE DC Persistent Memory featuring Intel® Optane™ Technology
- NVDIMM capacity Up to 1 TB per processor
- Storage controller 1 HPE Smart Array P408i-a Controller
- Processor speed 2.2 GHz
- Processor Name Intel® Xeon® Scalable 5220 (18 core, 2.2 GHz, 24.75 MB, 125W)
- Processor number 1
- Weight 32.6 lb
- Weight 14.76 kg
- Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
- Product Dimensions (imperial) 17.54 x 28.75 x 3.44 in
- Product Dimensions (metric) 44.55 x 73.03 x 8.74 cm
- Processor cache 24.75 MB L3
- Processor core available 18, per processor
- System fan features 4 single-rotor, standard fans included
- Power supply type 1 HPE 800W Flex Slot Universal Hot Plug Low Halogen
- Included hard drives None ship standard, 8 SFF drives supported
- Optical drive type Optional via Universal Media Bay
