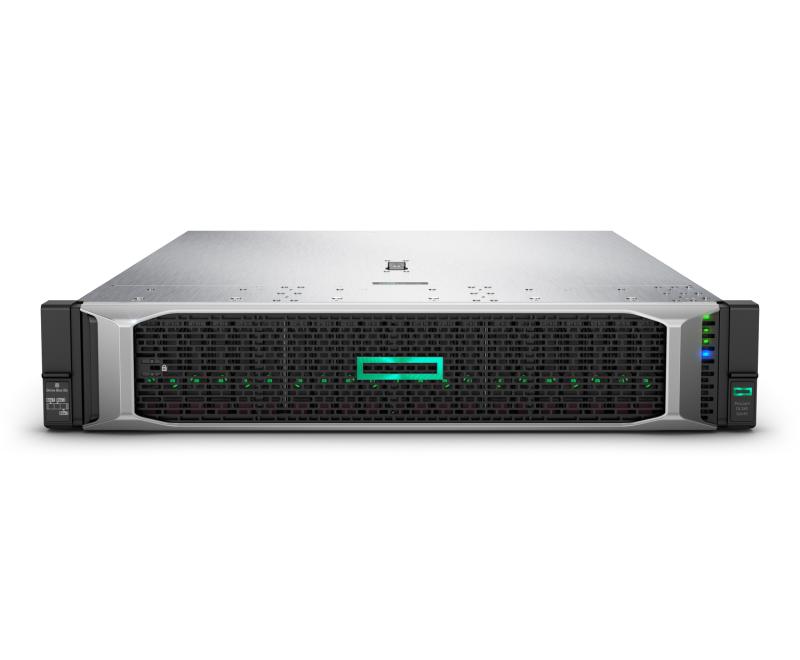

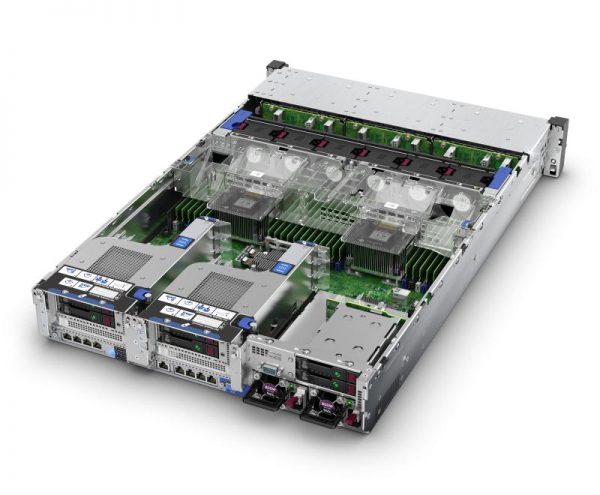

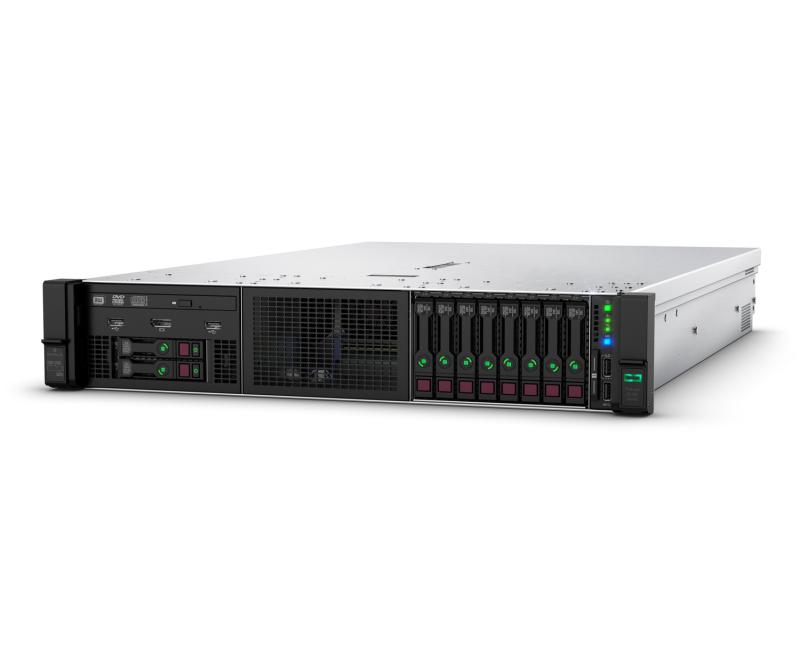

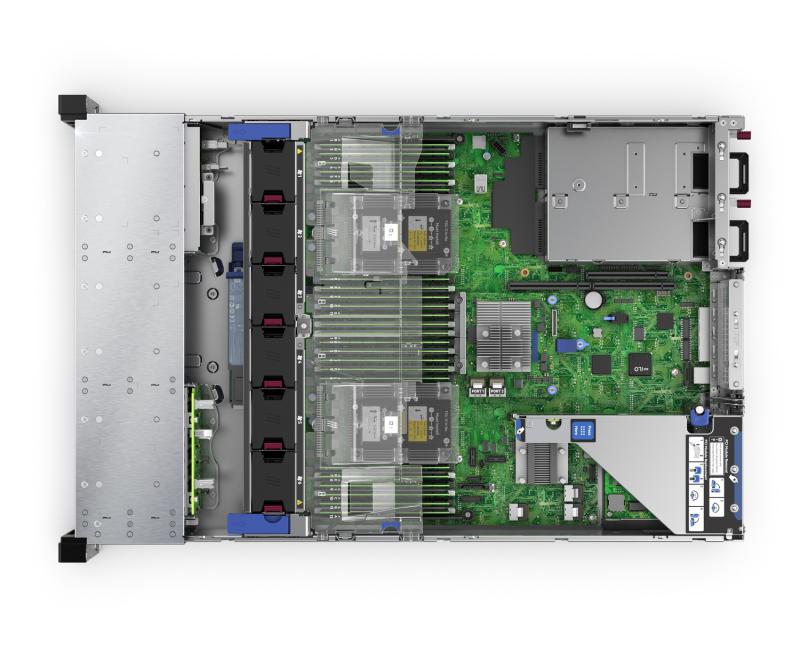

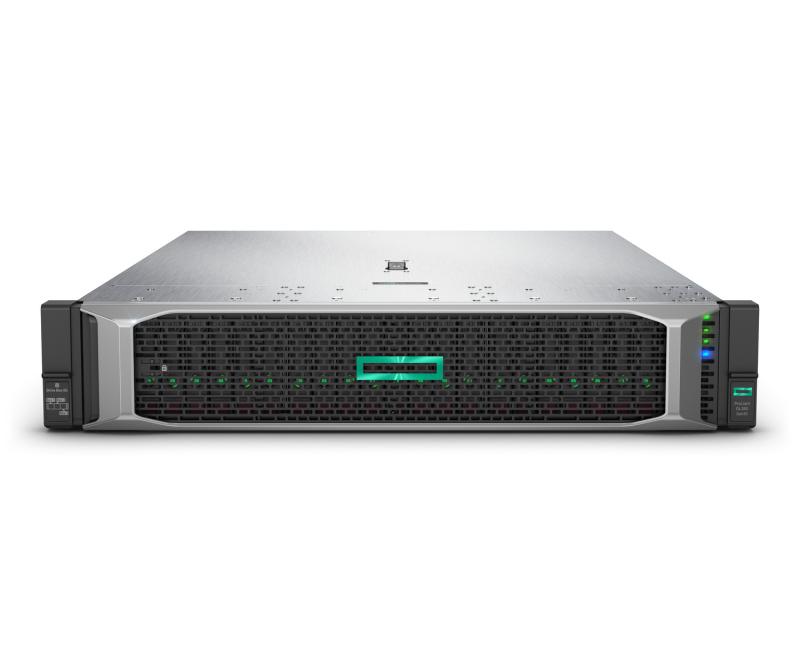

HPE SERVER DL380 GEN10 5222 1P/32G NC 8SFF SVR P24845-B21
Lifecycle
- Obsolete Date 29-02-2024
- End of support date 31-10-2028
Specifications
- NVDIMM rank Single rank
- NVDIMM type HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors
- NVDIMM capacity 16 GB
- Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)
- Form factor 2U
- Expansion slots 8, for detailed descriptions reference the QuickSpecs
- Memory, standard 32 GB (1x 32GB) RDIMM
- Memory type HPE DDR4 Smart Memory with optional Intel Optane Persistent Memory for HPE
- Weight 14.76 kg
- Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
- Product Dimensions (imperial) 17.54 x 28.75 x 3.44 in
- Product Dimensions (metric) 44.55 x 73.03 x 8.74 cm
- Processor cache 16.5 MB L3
- Processor core available 4, per processor
- Processor speed 3.8 GHz
- Processor Name Intel® Xeon® Scalable 5222 (4 core, 3.8 GHz, 16.5 MB, 105W)
- Processor number 1
- Weight 32.6 lb
- Network controller 1 HPE Ethernet 10Gb 2-port 562FLR-SFP+ FlexibleLOM Adapter (665240-B21) plus optional stand-up card *NOTE: No embedded networking
- System fan features 4 single-rotor, standard fans included
- Power supply type 1 HPE 800W Flex Slot Universal Hot Plug Low Halogen
- Included hard drives None ship standard, 8 SFF drives supported
- Optical drive type Optional
- Storage controller 1 HPE Smart Array S100i
- Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
