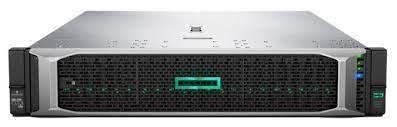

HPE SERVER DL380 GEN10 6242 1P/32G NC 8SFF SVR P20245-B21
Lifecycle
- Obsolete Date 29-02-2024
- End of support date 31-10-2028
Specifications
- Power supply type 1 HPE 800W Flex Slot Universal Hot Plug Low Halogen
- Included hard drives None ship standard, 8 SFF drives supported
- Optical drive type Optional via Universal Media Bay
- System fan features 4 single-rotor, standard fans included
- NVDIMM type HPE DC Persistent Memory featuring Intel® Optane™ Technology
- NVDIMM capacity Up to 1 TB per processor
- Form factor 2U
- Product Dimensions (metric) 44.55 x 73.03 x 8.74 cm
- Weight 14.76 kg
- Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
- Product Dimensions (imperial) 17.54 x 28.75 x 3.44 in
- Processor cache 22 MB L3
- Processor core available 16, per processor
- Processor speed 2.8 GHz
- Processor Name Intel® Xeon® Scalable 6242 (16 core, 2.8GHz, 22 MB, 150W)
- Processor number 1
- Weight 32.6 lb
- Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)
- Network controller 1 HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter plus optional stand-up card *NOTE: No embedded networking
- Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
- Expansion slots 8, for detailed descriptions reference the QuickSpecs
- Memory, standard 32 GB (1x 32GB) RDIMM
- Memory type HPE DDR4 Smart Memory with optional Intel Optane Persistent Memory for HPE
- NVDIMM rank Not applicable
- Storage controller 1 HPE Smart Array P408i-a Controller
