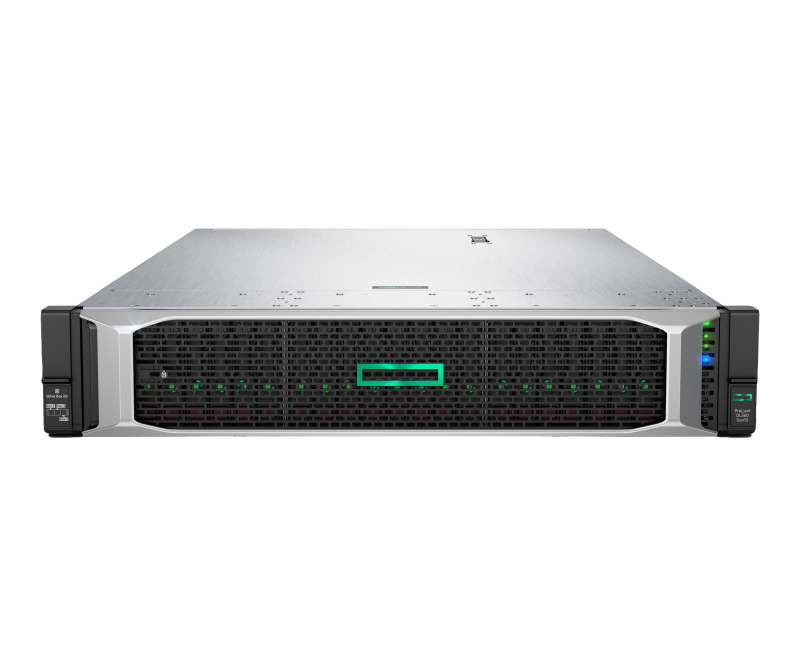

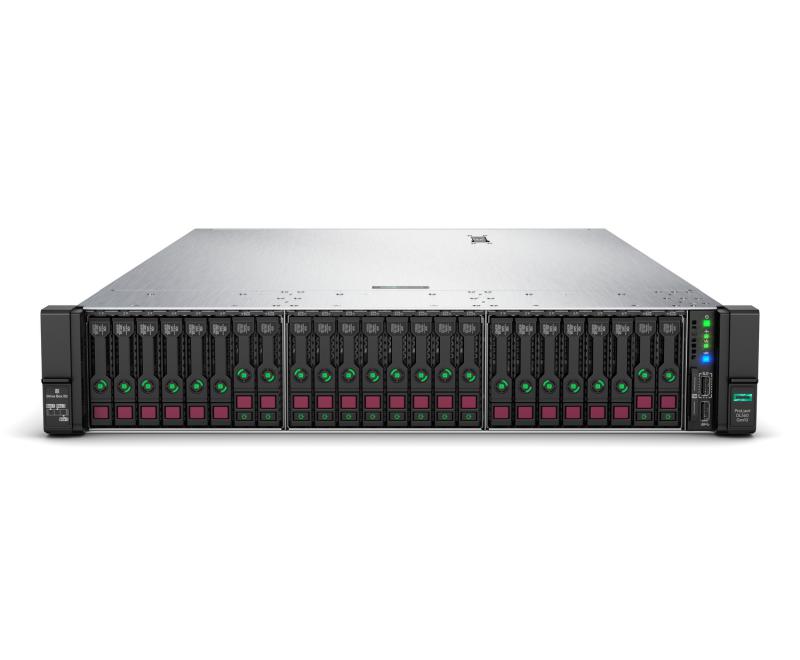

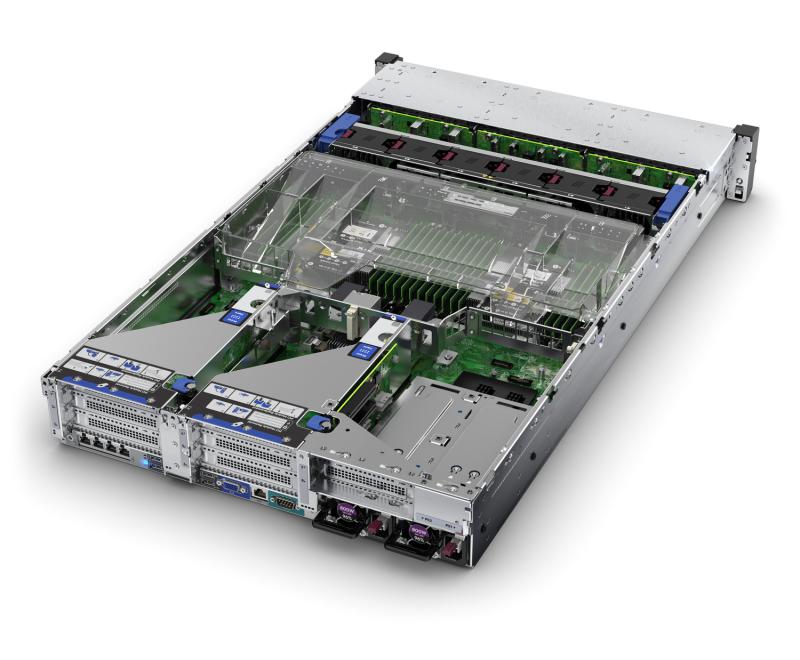

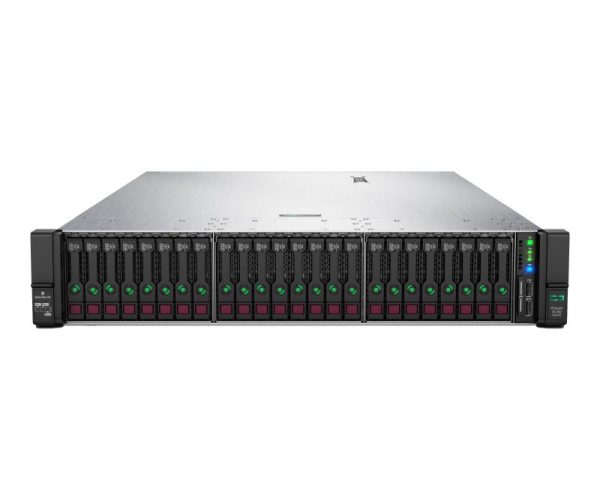

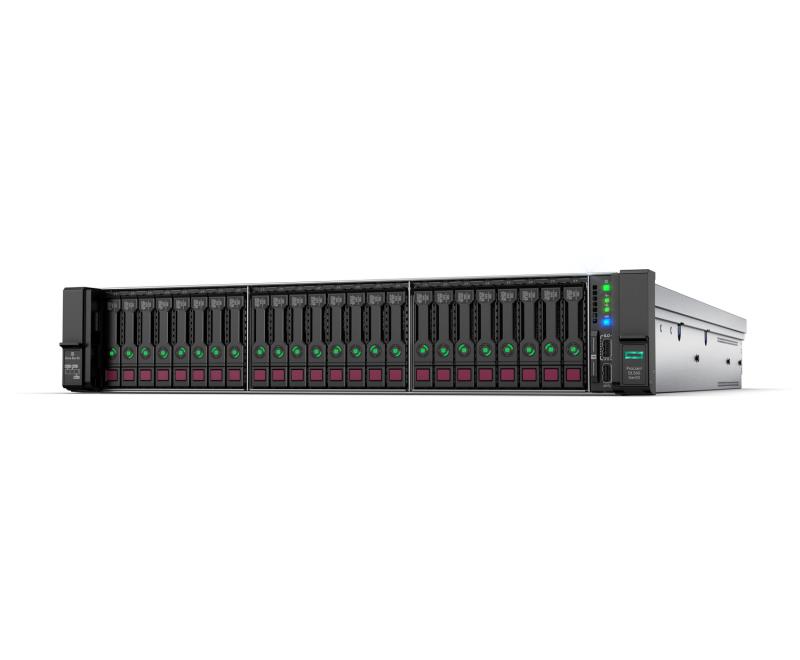

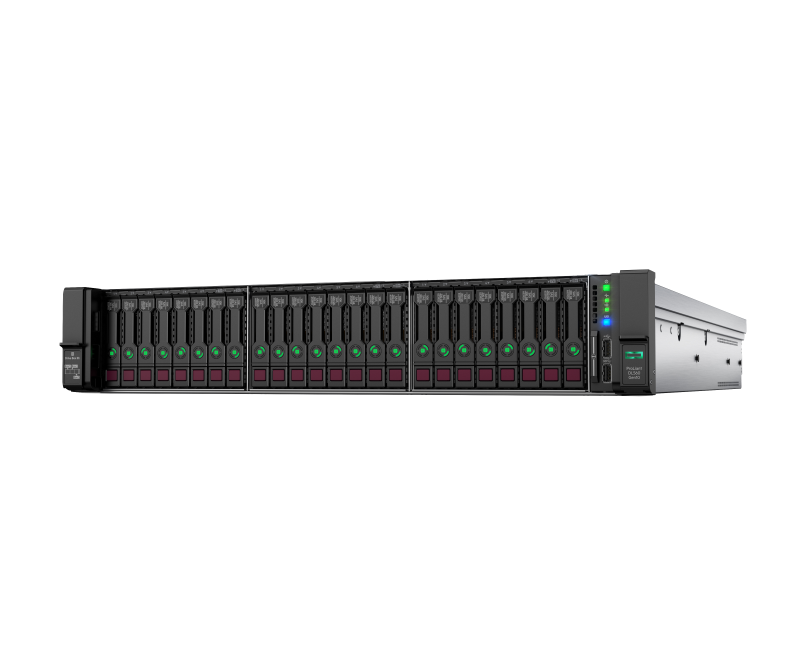

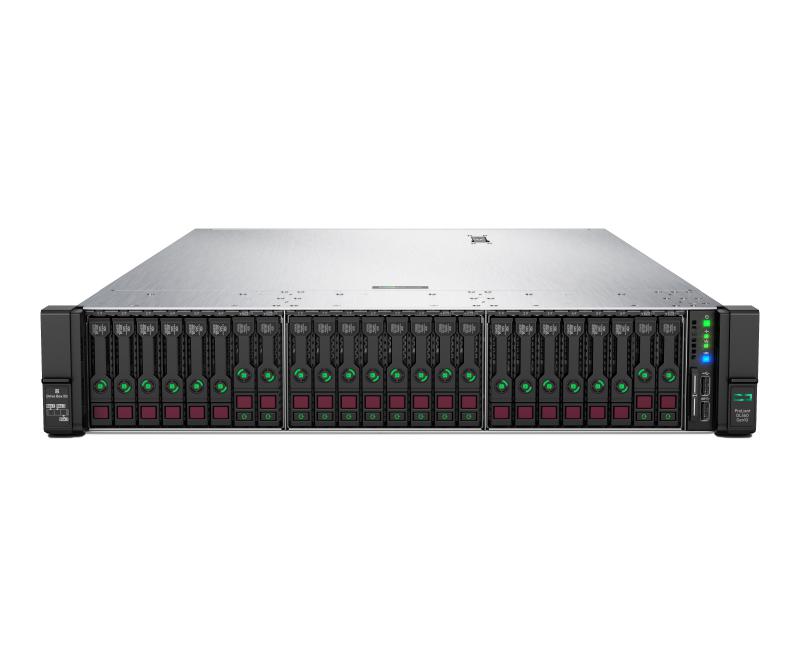

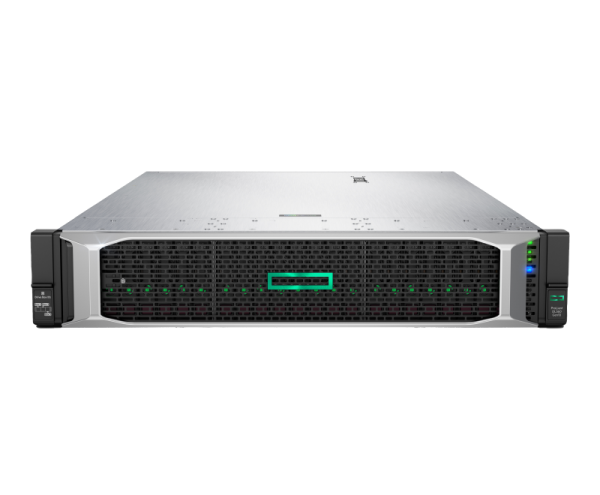

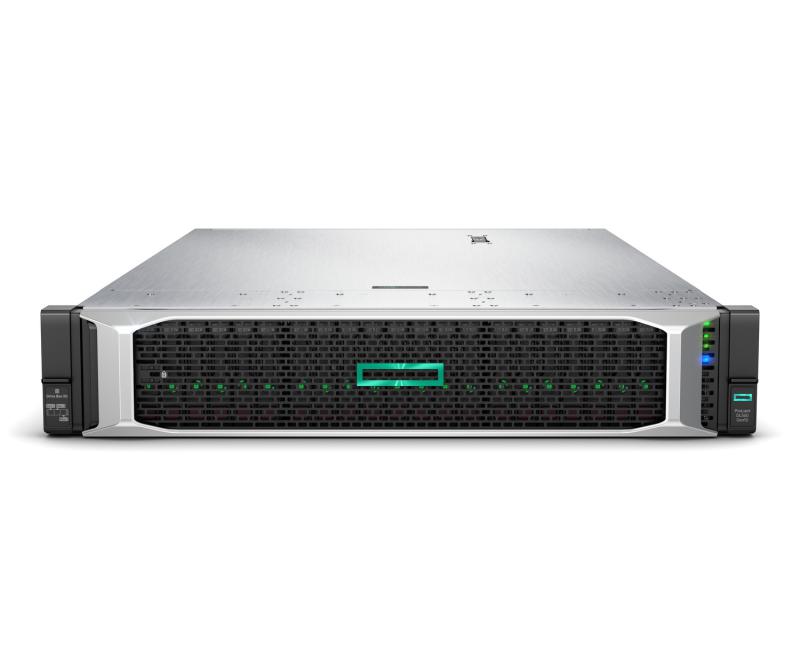

HPE SERVER DL560 GEN10 5220/2P 64G 8SFF SVR P21271-B21 (P21271-B21)

Lifecycle

• Obsolete Date 31-05-2024
• End of support date 31-01-2029

Specifications

• System fan features 6 hot plug redundant fans, standard
• Storage controller 1 HPE Smart Array P408i-a SR Gen10 Controller
• Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
• Form factor Rack (2U)
• Expansion slots 3 PCIe 3.0, for detailed descriptions refer the QuickSpecs
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses)
• Network controller 1 HPE 1 Gb 366FLR Ethernet adapter, 4-ports per controller
• Memory, standard 64 GB (2x 32 GB) RDIMM
• Memory type HPE DDR4 SmartMemory and HPE Persistent Memory
• Included hard drives None ship standard, 8 SFF SAS/SATA drives supported
• Optical drive type Optional
• Processor core available 18, per processor
• Weight 34.12 kg
• Processor speed 2.2 GHz
• Power supply type 1 1600W Flex Slot Platinum hot plug power supply
• Processor Name Intel® Xeon® Scalable 5220 (2.2GHz/18-core/125W)
• Processor number 2 processors included
• Product Dimensions (imperial) 3.44 x 17.54 x 29.71 in
• Product Dimensions (metric) 8.75 x 44.55 x 75.47 cm
• Processor cache 24.75 MB L3
• Weight 75.23 lb
