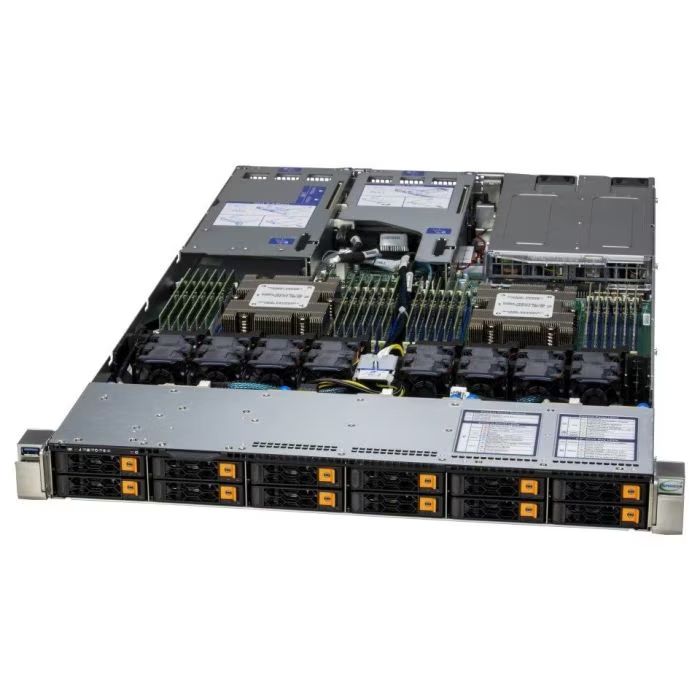

Supermicro AS -1125HS-TNR 1U Rackmount H13 Hyper SuperServer (AS -1125HS-TNR)

Favorite
Compara
Pretul afisat contine TVA (19%).

31.247,32 lei

Compara

Supermicro AS -1125HS-TNR 1U Rackmount H13 Hyper SuperServer (AS -1125HS-TNR)



Hyper SuperServer is a high-performance, highly configurable system designed for enterprise and telco applications, making it an optimal choice for workloads requiring powerful computing capabilities. With its flexible front and rear I/O configurations, you can easily integrate this system into their existing infrastructure.

AS -1125HS-TNR supports dual 4th Gen AMD EPYC™ 9004 Series Processors and up to 6TB DDR5-4800 memory in 24 DIMM slots. In addition, this system offers flexible networking options with an AIOM slot, allowing businesses to easily pick and choose the networking card that best suit their needs.

AS -1125HS-TNR

HyperSuperServer features lightning-fast storage, powered by the latest generation PCIe 5.0 NVMe SSDs. With up to 8 2.5” hot-swappable hybrid NVMe/SATA/SAS drive bays, this system is capable of handling your storage needs. Hyper SuperServer also features a tool-less design that simplifies serviceability and lowers maintenance time, resulting in lower TCO.

The Hyper SuperServer product family is optimized for your 5G Core, edge, hyperconverged storage, cloud computing, and AI inferencing/machine learning needs.



  • Key Features/Applications: Virtualization, AI Inferencing & Machine Learning, Enterprise Server, Software-Defined Storage, Cloud Computing

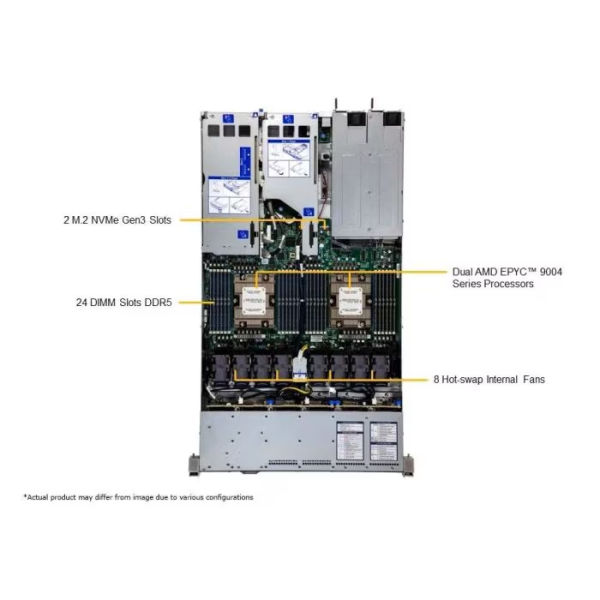

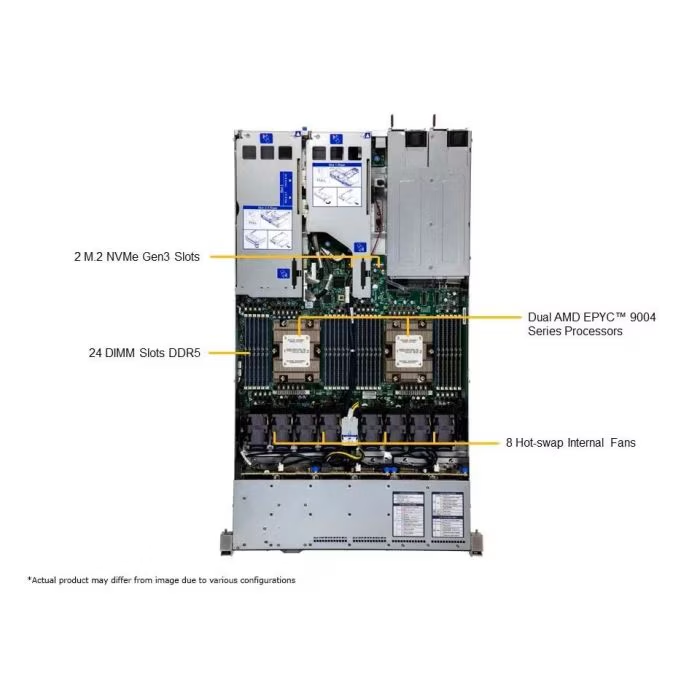

  • CPU: Dual 4th Gen AMD EPYC™ 9004 Series Processors, up to 128 Cores
  • Chassis: 1U
  • Drive: Up to 8x 2.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 6TB of DDR5 ECC RDIMM in 24 DIMM Slots
  • Network Ports: Flexible Networking Options
SKU: AS -1125HS-TNR Categorii: , , , , , , , , , ,
Product SKUs
A+ Server AS -1125HS-TNR
Processor
CPU
  • Dual Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 256C/512T
Note
  • Supports up to 360W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 280W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM

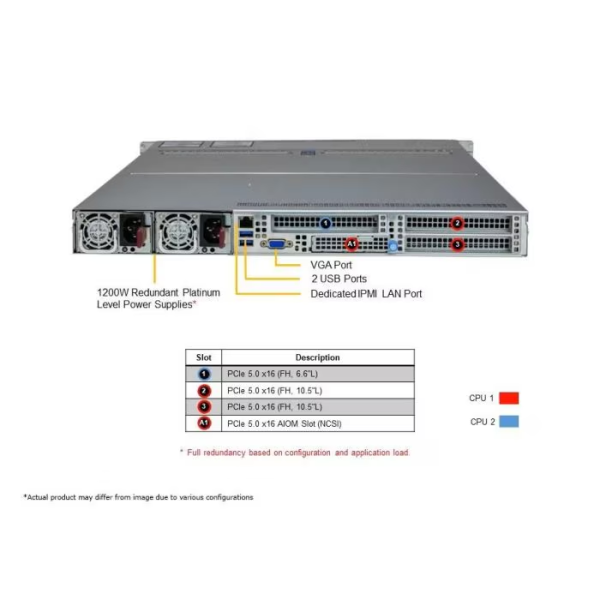

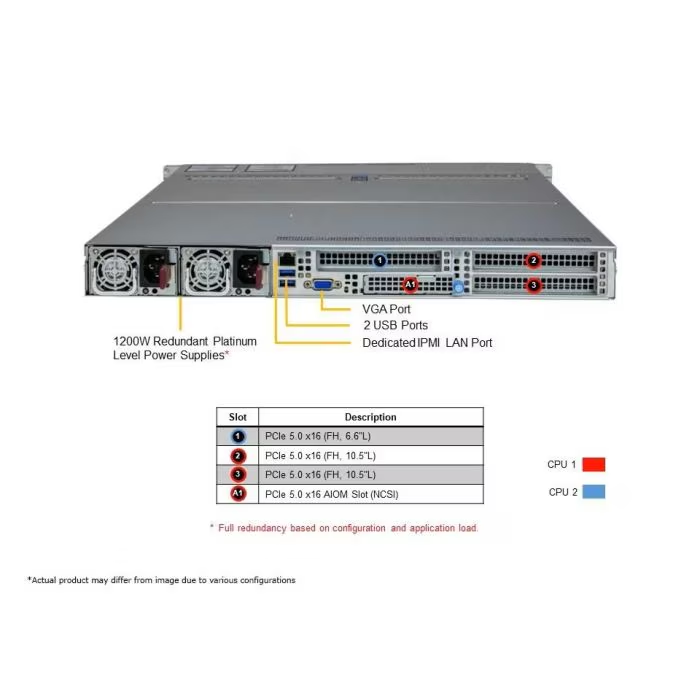

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 1 USB 3.0 port(s) (front)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 1U
Model
  • CSE-HS119-R1K24P2-A
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.4″ (747 mm)
Package
  • 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Gross Weight: 51 lbs (23.1 kg)
  • Net Weight: 32 lbs (14.5 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button

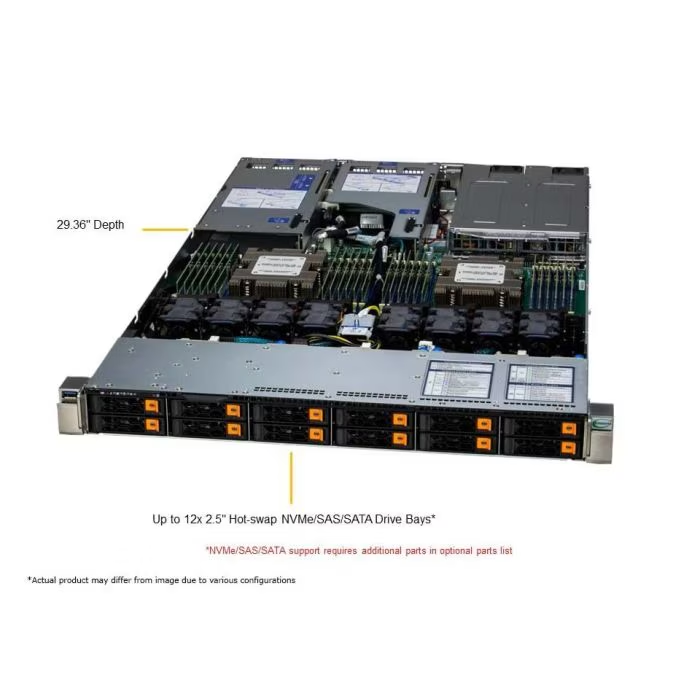

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • Option A: Total 12 bay(s)
    • 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 1200W
Description
  • 2x 1200W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
