Supermicro AS -4124GS-TNR+ 4U Rackmount GPU SuperServer (AS -4124GS-TNR+)

Favorite
Compara
Pretul afisat contine TVA (19%).

45.481,09 lei

Compara

Supermicro AS -4124GS-TNR+ 4U Rackmount GPU SuperServer (AS -4124GS-TNR+)



Unleash GPU Power for Ultimate Performance

Discover the Supermicro AS -4124GS-TNR+, a powerhouse designed for cutting-edge applications. Tailored for AI, Deep Learning, High-Performance Computing, and Cloud Gaming, this server supports up to 8 double-width GPUs with direct connect technology, ensuring maximum performance.

Dual AMD EPYC™ Processors for Unmatched Processing

Equipped with dual AMD EPYC™ 7003/7002 Series Processors, the AS -4124GS-TNR+ guarantees unparalleled processing capabilities. Accompanied by 8TB Registered ECC DDR4 memory and 9 PCI-E 4.0 x16 slots, it provides the muscle needed for demanding workloads.

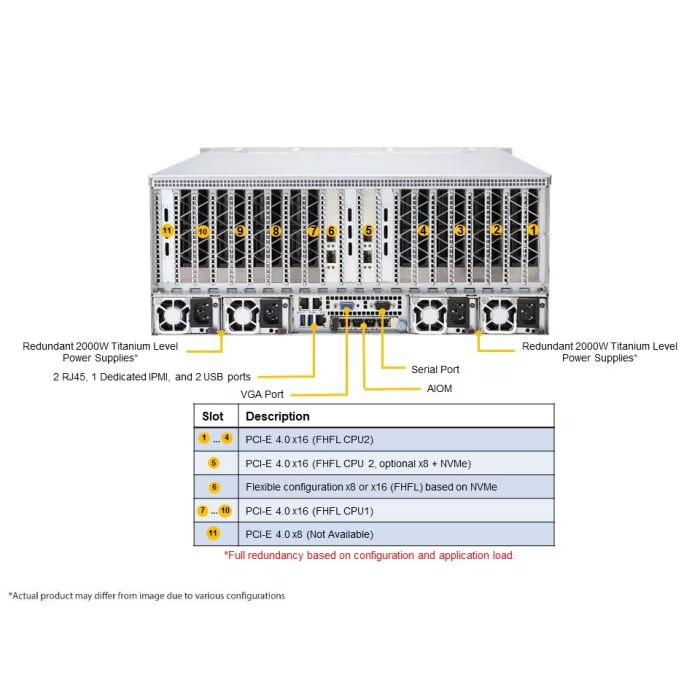

AS-4124GS-TNR+ Rear

Flexible Storage and Robust Redundancy

Featuring up to 24 Hot-swap 2.5″ drive bays and options for RAID configurations (with optional storage controller), and NVMe Gen4 support, the server adapts to diverse storage needs. With 2 GbE LAN ports, 8 cooling fans, and 2000W Redundant Power Supplies, it ensures reliability and stability even under heavy loads.

Seamless Integration, Unrivaled Efficiency

Benefit from the server’s seamless integration, user-friendly design, and Titanium-level power efficiency (96%+). Perfect for professionals seeking advanced GPU performance without compromising on reliability. Elevate your computing experience with Supermicro’s AS -4124GS-TNR+.



  • Key Features/Applications: AI / Deep Learning, High Performance Computing (HPC), Cloud Gaming, Molecular Dynamics Simulation
  • CPU: Dual AMD EPYC™ 7003/7002 Series Processors, up to 128 Cores
  • Chassis: 4U
  • Drive: Up to 24x 2.5″ SAS/SATA Drive Bays
  • RAM: Up to 8TB of DDR4 ECC RDIMM/LRDIMM in 32 DIMM Slots
  • GPU: Up to 8 GPUs
  • Power Supply: 2000W (2+2) Redundant Titanium Level Power Supplies
  • Network Ports: 2x 1GbE RJ45 LAN Ports
SKU: AS -4124GS-TNR+ Categorii: , , , , , , , , , ,
Product SKUs
AS -4124GS-TNR+
  • A+ Server 4124GS-TNR+ (Black)
Motherboard
Super H12DSG-O-CPU
Processor/Cache
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • Socket SP3
  • Supports CPU TDP up to 280W**
Cores
  • Up to 128 Cores (64 per CPU)
Note * Supports 2 CPUs only – single socket not supported
** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

\

GPU
Supported GPUs
  • 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length)
  • NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct
  • Supports both active and passive cooled GPUs
  • Compatible GPU list
CPU-GPU Interconnect
  • PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)
System Memory
Memory Capacity
  • 32 DIMM slots*
  • Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • 3200MHz ECC DDR4 RDIMM/LRDIMM**
Note
  • * Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors
  • ** In 2DPC configurations memory speed is up to 2933MHz
On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Provided via riser card
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
SATA/SAS
  • 24 SATA/SAS with a controller
LAN
  • 2 RJ45 GbE LAN ports (rear)
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA Connector
COM Port
  • 1 COM port (header)
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SPM, SUM
  • SuperDoctor® 5
  • Watchdog
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Other Features
  • RoT
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00057-0N)
Model
  • CSE-418G2TS-R4016BP
Dimensions
Height
  • 7.0″ (178mm)
Width
  • 17.2″ (437mm)
Depth
  • 29″ (737mm)
Package
  • 26.57″ (H) x 27″ (W) x 41″ (D)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)
Available Colors
  • Black
Drive Bays / Storage
Hot-swap
  • Up to 24x 2.5″ SAS/SATA drive bays
  • 2x 2.5″ SATA supported natively*
  • 4x 2.5″ NVMe Gen4 supported natively
  • RAID controller option available for 24 HDDs
Note * 2x drives in RAID 1 only via onboard Marvell 9230
Expansion Slots
PCI-Express
  • 9 PCI-E 4.0 x16 (FHFL) slots
  • or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices
System Cooling
Fans
  • 8x 11.5K RPM heavy duty fans
Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 127Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 220 – 240Vac (UL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 12-9A / 50-60Hz
  • 200-220Vac / 10-9.8A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 220-240Vac / 11-10A / 50-60Hz (UL only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166A / Min: 0A (230-240Vac)
  • Max: 166A / Min: 0A (220-240Vac) (UL only)
12Vsb
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%Titanium Level
[ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
