Supermicro AS -4125GS-TNRT 4U Rackmount H13 GPU SuperServer (AS -4125GS-TNRT)

Favorite
Compara
Pretul afisat contine TVA (19%).

54.878,51 lei

Compara

Supermicro AS -4125GS-TNRT 4U Rackmount H13 GPU SuperServer (AS -4125GS-TNRT)



Empowering Intensive AI/Deep Learning and HPC Applications

Supermicro’s H13 AS -4125GS-TNRT GPU SuperServer is designed and optimized for the most demanding High-Performance Computing, AI/Deep Learning, Inference, Virtual Desktop Infrastructure (VDI), Virtual Workstation (vWS), and Graphical workloads and applications.

The Supermicro AS -4125GS-TNRT is the ultimate solution with maximum performance and flexibility to execute intensive AI/Deep learning and HPC applications. Powered by dual AMD EPYC 9004 Series (Genoa) Processors with up to 96 cores/192 threads along with 24 DDR5 DIMM slots to tackle the most complex tasks and workloads.

AS -4125GS-TNRT

Superior Expandability

A total of 9 PCI-E GEN-5 Slots allow for flexible and optimized configurations with support for up to eight double-wide GPUs. Two onboard 10GbE LAN ports, one dedicated IPMI port, and optional AIOM/OCP 3.0 support will keep you seamlessly connected no matter where you are.

Storage for Data-Intensive Applications

Equipped with bigger, faster storage options featuring 24 hot-swap 2.5″ NVMe/SATA/SAS drive bays providing superior storage capabilities to easily execute intensive data processing and workloads. The AS -4125GS-TNRT SuperServer is powered by four 2000W redundant titanium power supplies, giving you one of the most reliable and efficient GPU servers available today.

Up to 8 Double-Wide Full-Length GPUs

The Supermicro AS -4125GS-TNRT SuperServer can be configured and optimized for specific or target workloads and applications by integrating up to eight double-wide full-length GPUs.



  • Key Features/Applications: High-Performance Computing, AI / Deep Learning

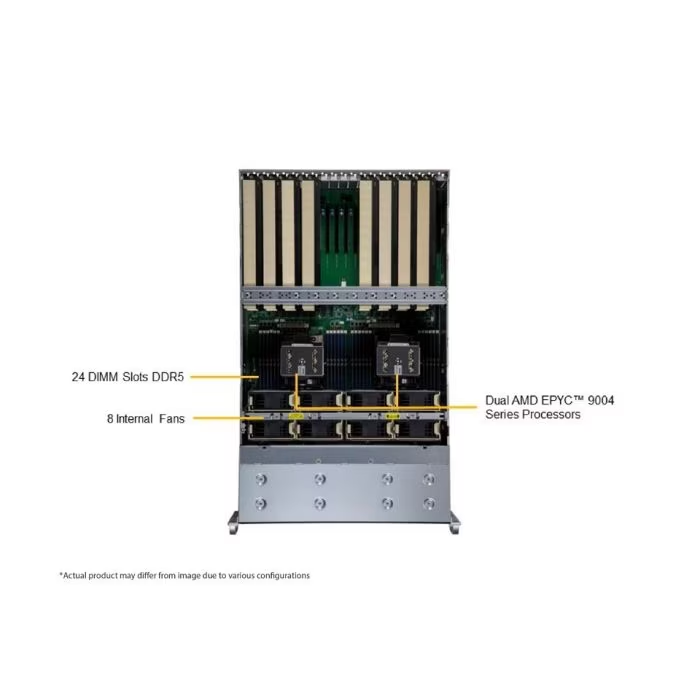

  • CPU: Dual AMD EPYC™ 9004 Series Processors, up to 128 Cores
  • Chassis: 4U

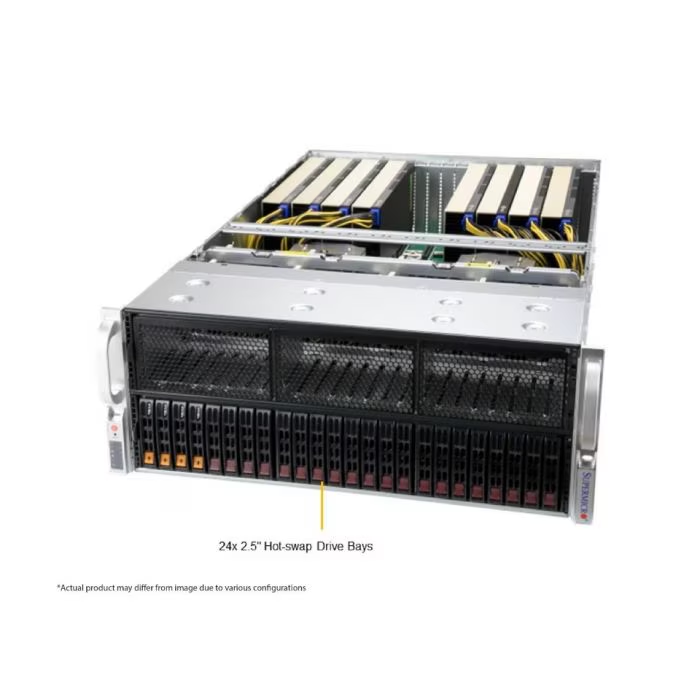

  • Drive: Up to 24x 2.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 6TB of DDR5 ECC RDIMM/LRDIMM in 24 DIMM Slots
  • GPU: Up to 8 GPUs
  • Network Ports: 2x 10GbE RJ45 LAN Ports
SKU: AS -4125GS-TNRT Categorii: , , , , , , , , , ,
Product SKUs
A+ Server AS -4125GS-TNRT
Processor
CPU
  • Dual Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 128C/256T
Note
  • Supports up to 400W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 double-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100 NVL, H100, RTX 4000 SFF Ada Generation, L40, RTX A5500, RTX A4000, RTX 6000, RTX 5000, L40S, A40, A30, A100
  • AMD PCIe: Instinct MI210
CPU-GPU Interconnect
  • Direct Attached
GPU-GPU Interconnect
  • NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • AMD SP5
Network Connectivity
  • 2 RJ45 10GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 RJ45 10 GBASE-T LAN port(s)
USB
  • 2 port(s) (rear)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418G2TS
Dimensions and Weight
Height
  • 7″ (178 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29″ (737 mm)
Package
  • 26.57″ (H) x 27″ (W) x 41″ (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Front Panel
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button
Drive Bays / Storage

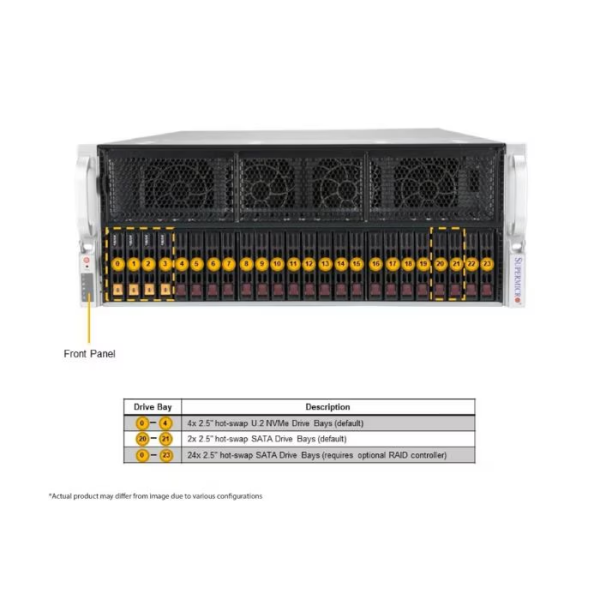

Drive Bays Configuration
  • Default: Total 6 bay(s)
    • 2 front hot-swap 2.5″ SATA drive bay(s)
    • 4 front hot-swap 2.5″ NVMe drive bay(s)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key)
System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control

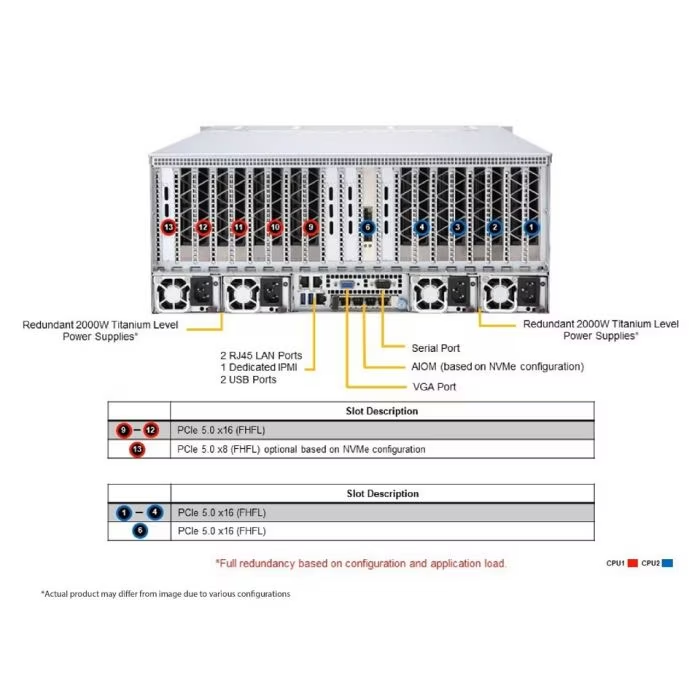

Power Supply
QtyWithPsu
  • 4x 2000W
Description
  • 4x 2000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
    1800W: 200-220Vac / 50-60Hz
    1980W: 220-230Vac / 50-60Hz
    2000W: 220-240Vac / 50-60Hz (for UL only)
    2000W: 230-240Vac / 50-60Hz
    2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 150A / Min: 0A (200Vac-220Vac)
    Max: 165A / Min: 0A (220Vac-230Vac)
    Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
