SUPERMICRO CloudDC SuperServer SYS-120C-TN10R (SYS-120C-TN10R)

Favorite
Compara
Pretul afisat contine TVA (19%).

14.402,84 lei

Compara
Specifications
Product SKUs
SYS-120C-TN10R
  • SuperServer SYS-120C-TN10R (Black)
Motherboard
Super X12DDW-A6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
  • CPUs with TDP higher than 185W may have support conditions due to power and thermal limitations.
Cores
  • Up to 40C/80T; Up to 60MB Cache
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • U.2
  • NVMe; RAID 0/1/5/10 support ((*VROC is required))
Chipset
  • Intel® C621A
Network Connectivity
  • Via Slim-AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 1 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SCC
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitorin
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
Dimensions and Weight
Height
  • 1.7″ (43mm)
Width
  • 17.2″ (437mm)
Depth
  • 23.5″ (597mm)
Package
  • 7.7″ (H) x 23.7″ (W) x 31.8″ (D)
Weight
  • Gross Weight: 40 lbs (18.14 kg)
Available Color
  • Black

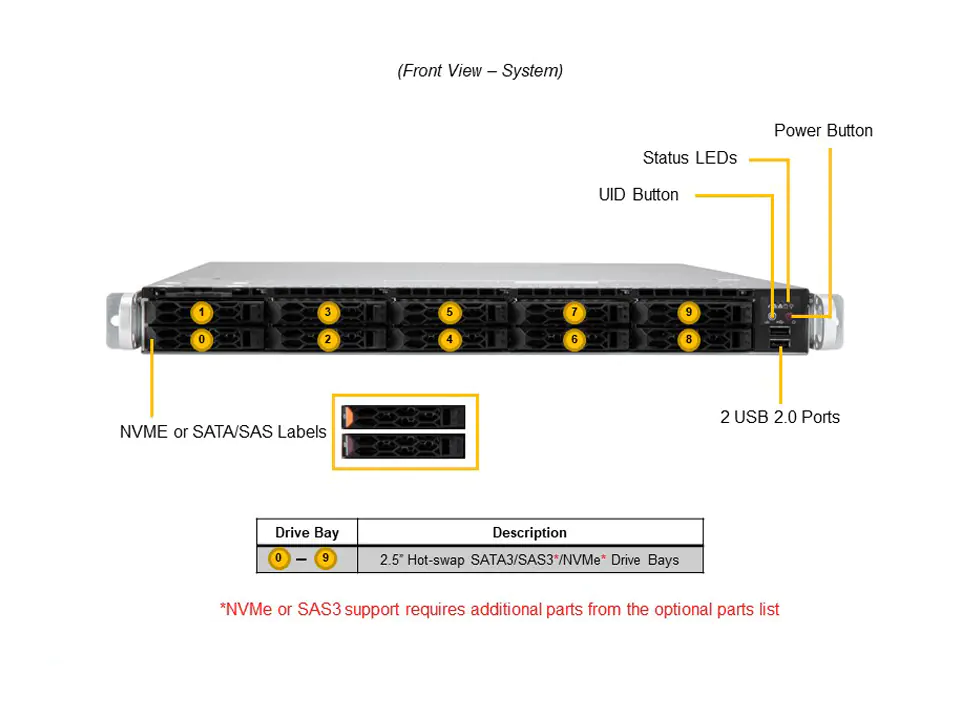

Front Panel
Buttons
  • Power On/Off
  • Universal Information (UID)
LEDs
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FHHL
  • Slot 2: PCI-E 4.0 x16 FHHL

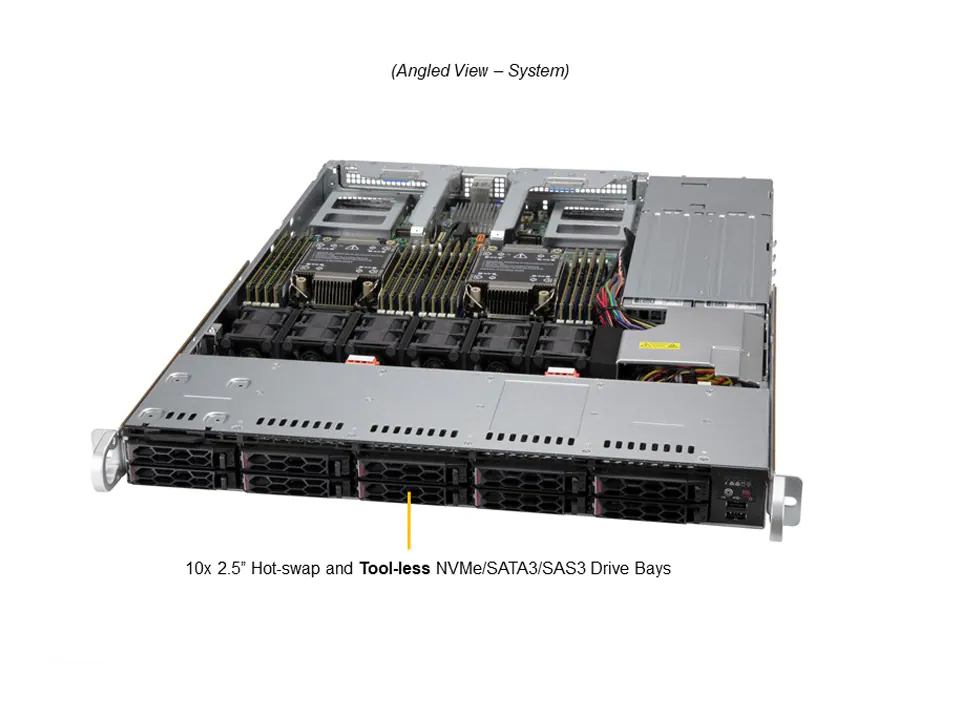

Drive Bays / Storage
Hot-swap
  • 10x 2.5″ hot-swap NVMe/SATA/SAS drive bays (10x 2.5″ NVMe hybrid) (NVMe drives require additional cables from the optional parts list.)
  • U.2 drive support
M.2
  • 2 M.2 NVMe
  • M-Key, 2280
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
AC 860W, Platinum Level, Redundant Power Supply, 54.5mm width
Dimension

(W x H x L)
  • 54.5 x 40.25 x 320 mm
Output Type
  • Gold Finger
Certification Platinum Level Certified94%+  Platinum Level



[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
