SUPERMICRO Hyper SuperServer SYS-620H-TN12R (SYS-620H-TN12R)

Favorite
Compara
Pretul afisat contine TVA (19%).

22.276,61 lei

Compara
Specifications
Product SKUs
SYS-620H-TN12R
  • SuperServer SYS-620H-TN12R
Motherboard

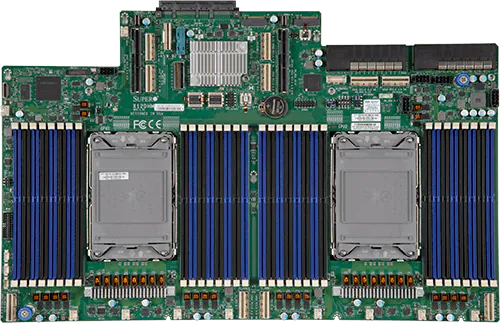

Super X12DHM-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T; Up to 60MB Cache
System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support (Intel® VROC RAID Key required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE BaseT with Intel® i350-AM2 (optional)
  • 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional)
  • 2x 10GbE SFP+ with Intel® X710-BM2 (optional)
  • 4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
  • 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
  • 2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
  • 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
  • 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
  • 4x 1GbE BaseT with Intel® i350-AM4 (optional)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS829-R1K24P
Dimensions and Weight
Height
  • 3.5″ (88.9mm)
Width
  • 17.2″ (436.88mm)
Depth
  • 31.6″ (803mm)
Package
  • 10.07″ (H) x 23.81″ (W) x 37.28″ (D)
Weight
  • Net Weight: 37 lbs (16.8 kg)
  • Gross Weight: 63 lbs (28.6 kg)
Available Color
  • N/A

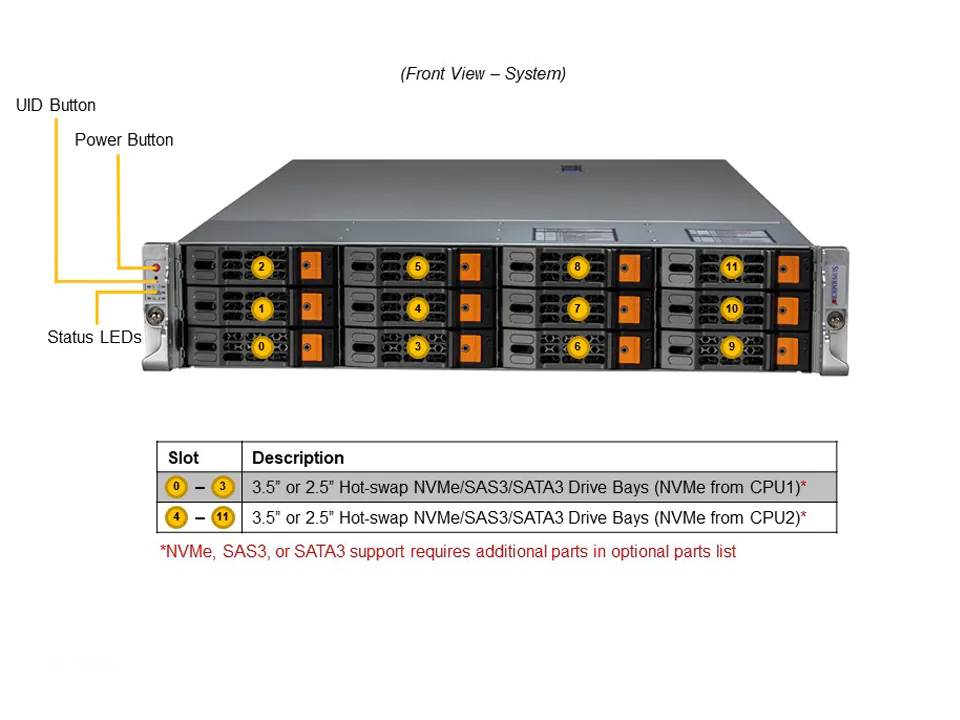

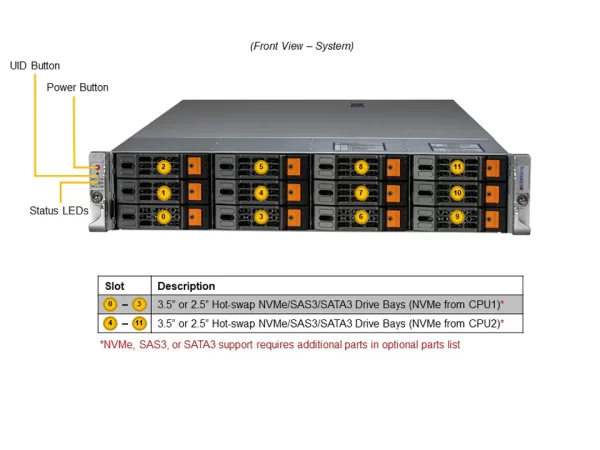

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • Power status
  • System information

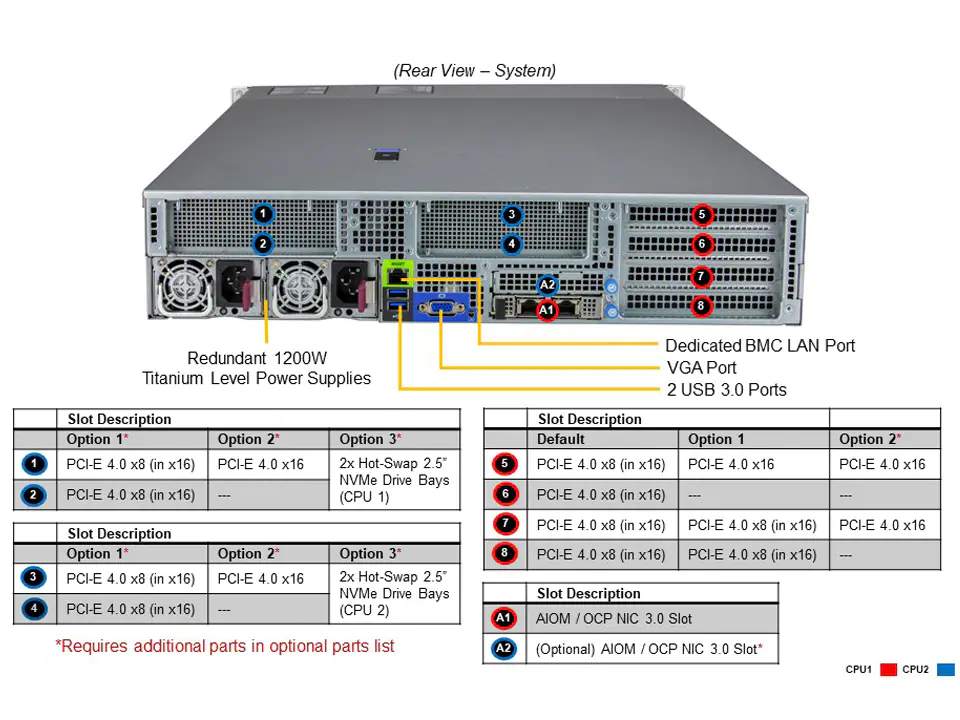

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5″L
  • Slot 2: (Optional) PCI-E 4.0 x8 FH, 10.5″L
  • Slot 3: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5″L
  • Slot 4: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5″L
  • Slot 5: PCI-E 4.0 x8 FH, 10.5″L
  • Slot 6: PCI-E 4.0 x8 FH, 10.5″L
  • Slot 7: PCI-E 4.0 x8 FH, 10.5″L
  • Slot 8: PCI-E 4.0 x8 FH, 10.5″L
Note
  • If Slot 1 is configured as PCI-E x16, Slot 2 will be disabled; If Slot 3 is configured as PCI-E x16, Slot 4 will be disabled; If Slot 5 is configured as PCI-E x16, Slot 6 will be disabled; If Slot 7 is configured as PCI-E x16, Slot 8 will be disabled.
Drive Bays / Storage
Hot-swap

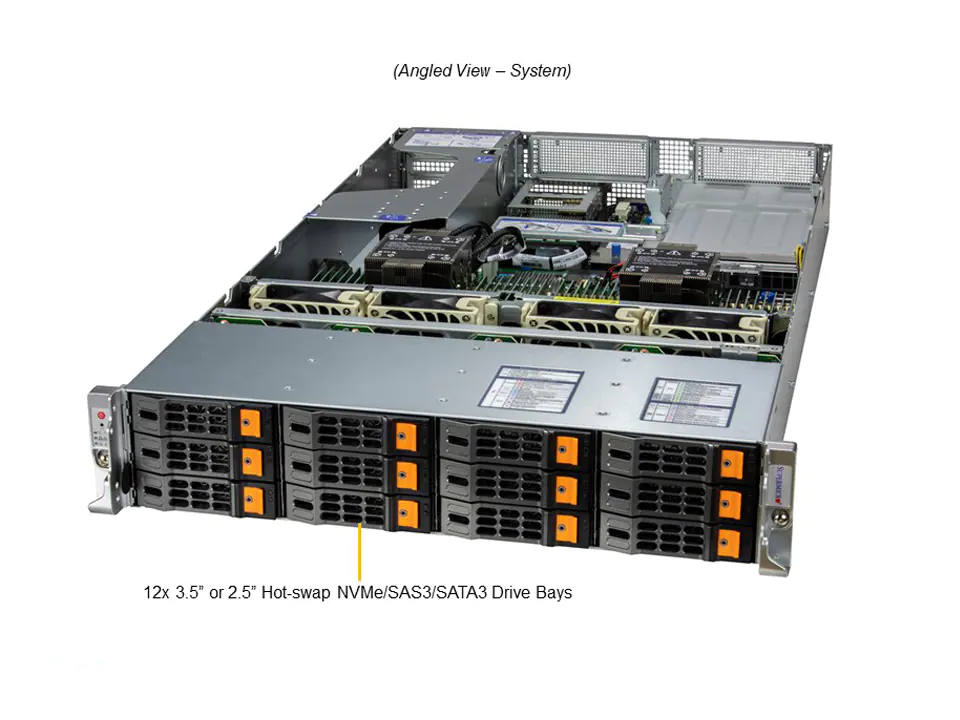

  • 12x 3.5″ hot-swap NVMe/SATA/SAS drive bays (NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
1200W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 800W: 100-127Vac / 9.8A-7A / 50-60Hz
  • 1200W: 200-240Vac / 7.5A-6A / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 166A / Min: 0A (200Vac-220Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
