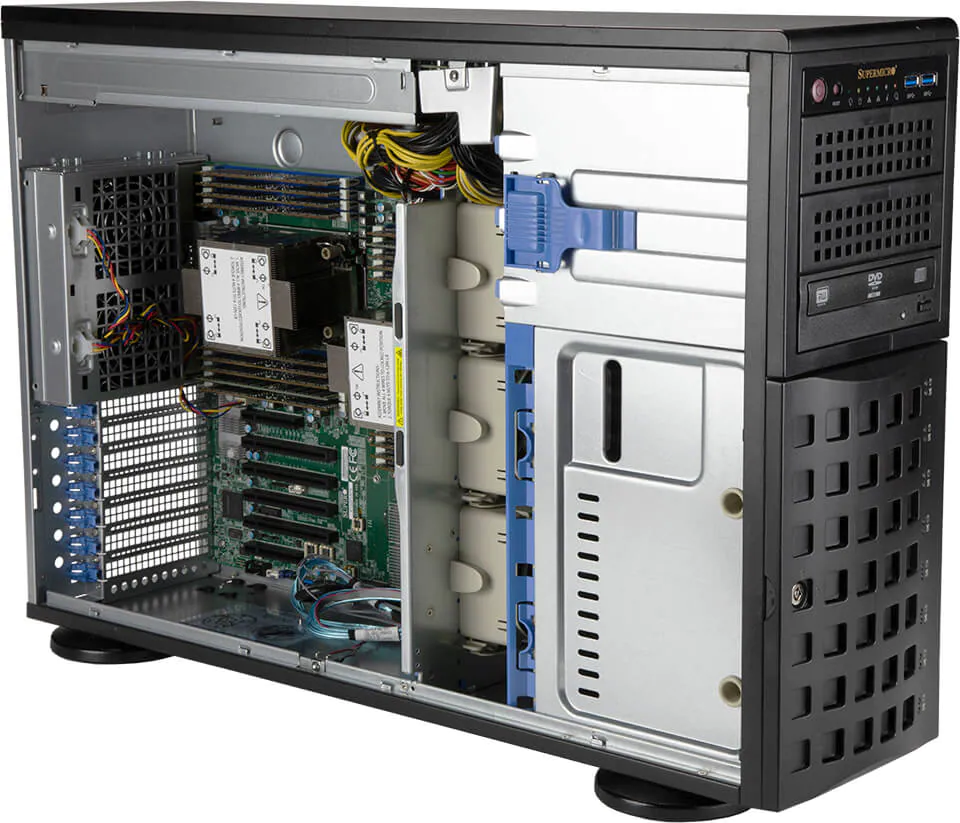

SUPERMICRO Mainstream SuperServer SYS-740P-TR (SYS-740P-TR)

Favorite
Compara
Pretul afisat contine TVA (19%).

14.817,24 lei

Compara
Specifications
Product SKUs
SYS-740P-TR
  • SuperServer SYS-740P-TR (Black)
Motherboard

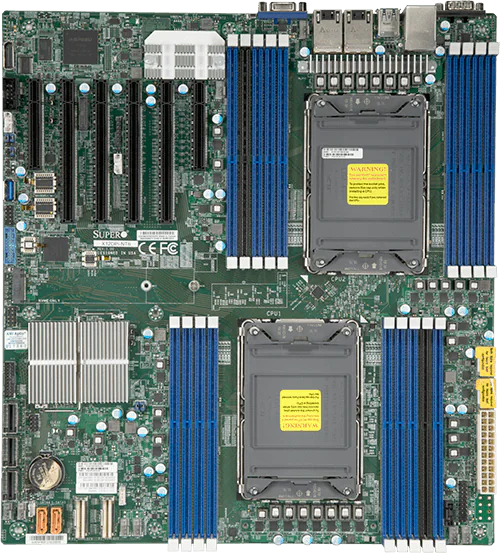

Super X12DPi-N6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 36C/72T; Up to 60MB Cache
System Memory
Memory

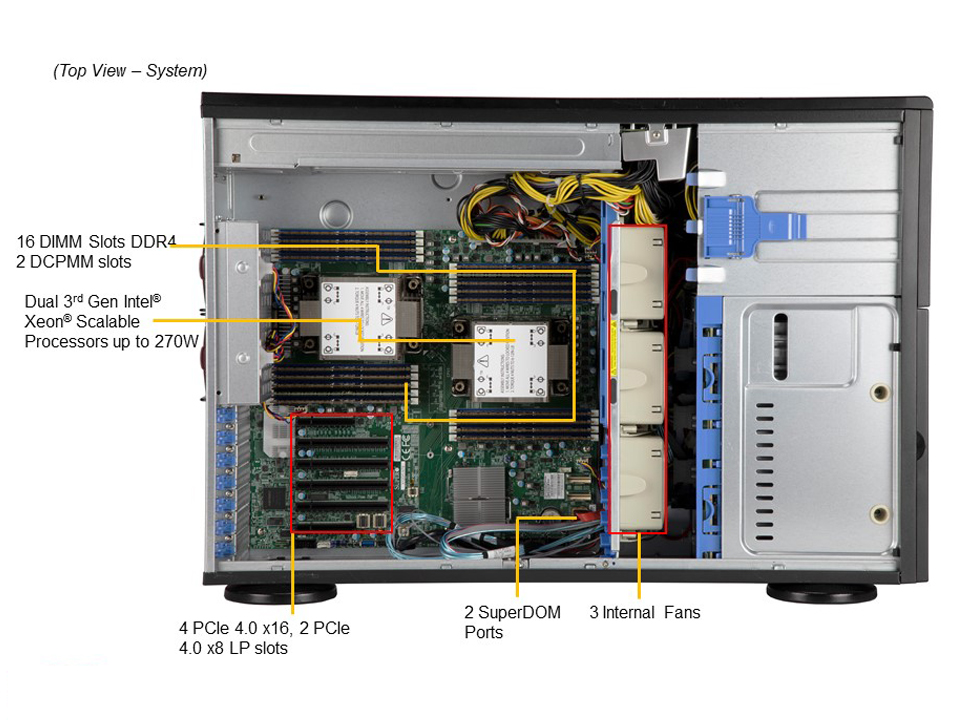

  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: PMem and DRAM
  • Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4
  • Intel® Optane™ persistent memory 200 series
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 decicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 4 USB 3.0 port(s) (4 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Tower/4U
Model
  • CSE-745BTS-R1K23BP
Dimensions and Weight
Height
  • 17.8″ (452mm)
Width
  • 7″ (178mm)
Depth
  • 25.5″ (647mm)
Package
  • 24.6″ (H) x 14″ (W) x 31.3″ (D)
Weight
  • Net Weight: 56 lbs (25.6 kg)
  • Gross Weight: 73.5 lbs (33.6 kg)
Available Color
  • Black

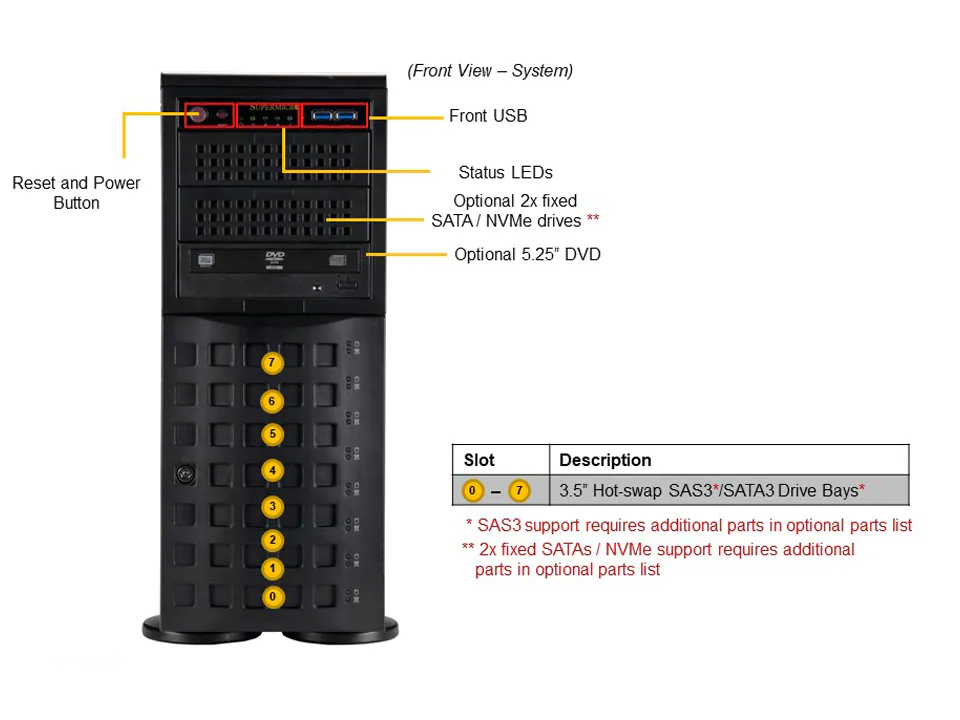

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

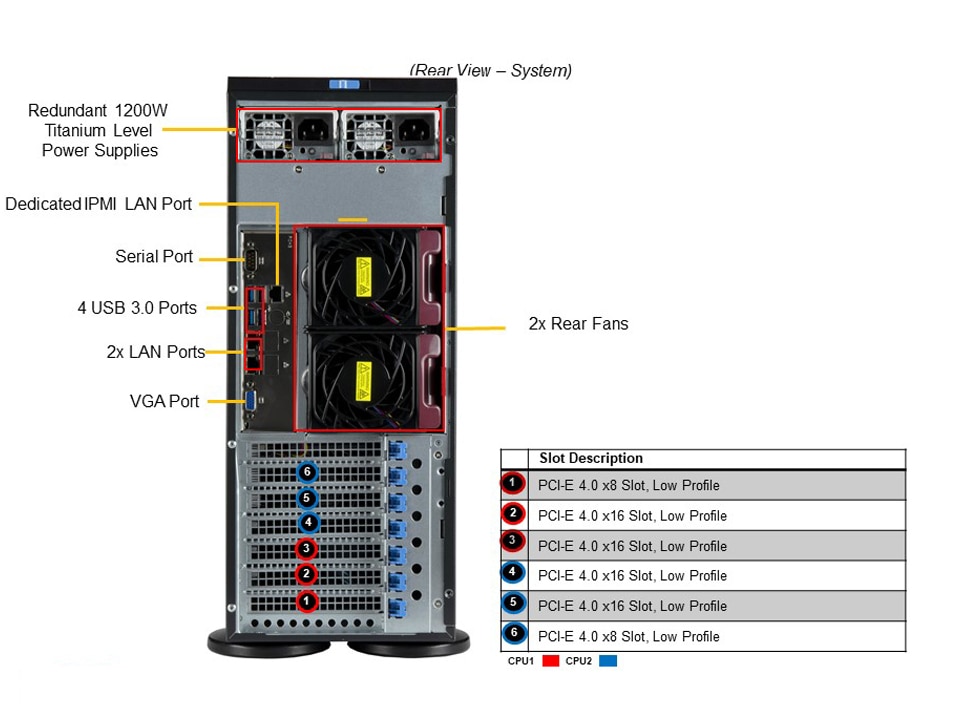

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x8 Full-height
  • Slot 2: PCI-E 4.0 x16 Full-height
  • Slot 3: PCI-E 4.0 x16 Full-height
  • Slot 4: PCI-E 4.0 x16 Full-height
  • Slot 5: PCI-E 4.0 x16 Full-height
  • Slot 6: PCI-E 4.0 x8 Full-height
Drive Bays / Storage
Hot-swap

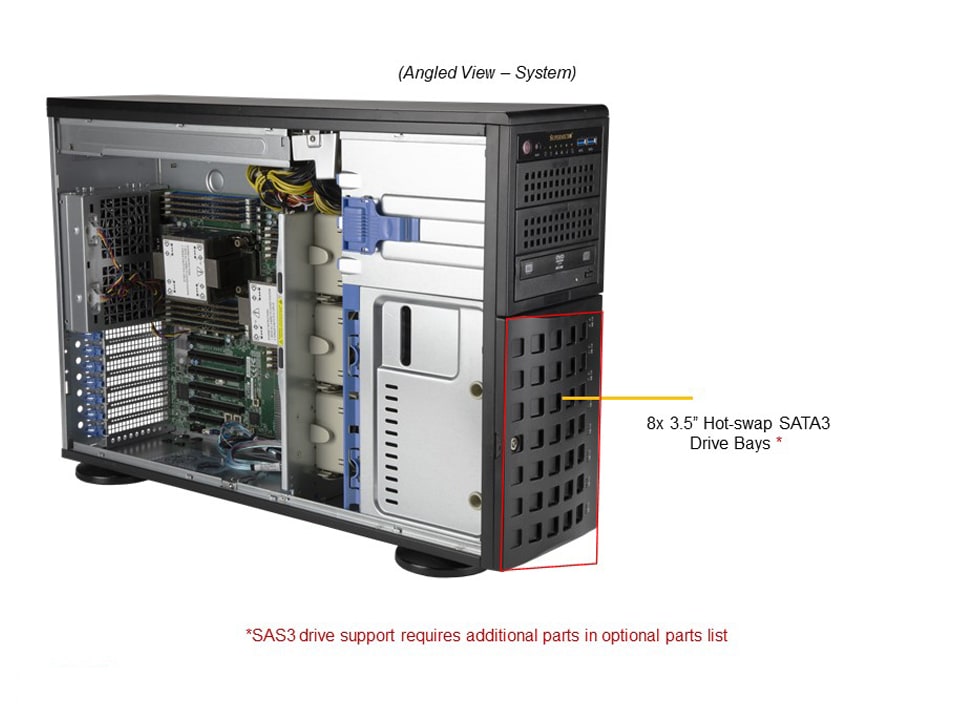

  • 8x 3.5″ hot-swap SATA3 drive bays (8x 3.5″ hot-swap SATA drive bays can be converted to 8x SAS drive bays by adding 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-01)
M.2
  • 1 M.2 NVMe
Peripheral Bays
  • 1x 5.25″ DVD drive bays (optional)
System Cooling
Fans
  • 2 rear Fan(s)
  • 3 middle Fan(s)
Power Supply
1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 12A-15A / 50-60Hz
  • 1200W: 200-240Vac / 7A-8.5A / 50-60Hz
DC Output
  • 200-240Vdc CCC only/ 7A-8.5A / 50-60Hz
Output Type
  • Gold Finger (19 pair connector)
Certification Titanium Level94%+  Titanium Level



[ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
    5% to 95% (Non-Condensing)
SKU: SYS-740P-TR Categorii: , , , , , , , ,
