Supermicro SSG-640P-E1CR36H 4U Rackmount SuperStorage Server







SSG-640P-E1CR36H

The Supermicro SSG-640P-E1CR36H is a powerful 4U Double-sided StorageTM Server that is ideal for high capacity storage applications with standard rack depth installation requirements. Popular in both cloud and enterprise environments.

The SSG-640P-E1CR36H features a dual-processor Intel Xeon Scalable CPU, with 16x DIMMs providing the computing power and flexibility for general purpose storage workloads as well as compute capability for data processing and text analysis. With support for up to 36 hot-swap 3.5″ SAS/SATA drives, and up to 4 NVMe this server offers ample storage capacity for large-scale data storage within a standard rack depth. The drive bays are driven by SAS3 12Gbps support and feature a built in JBOD expansion port for fast data transfer rates and expansion without opening the top.

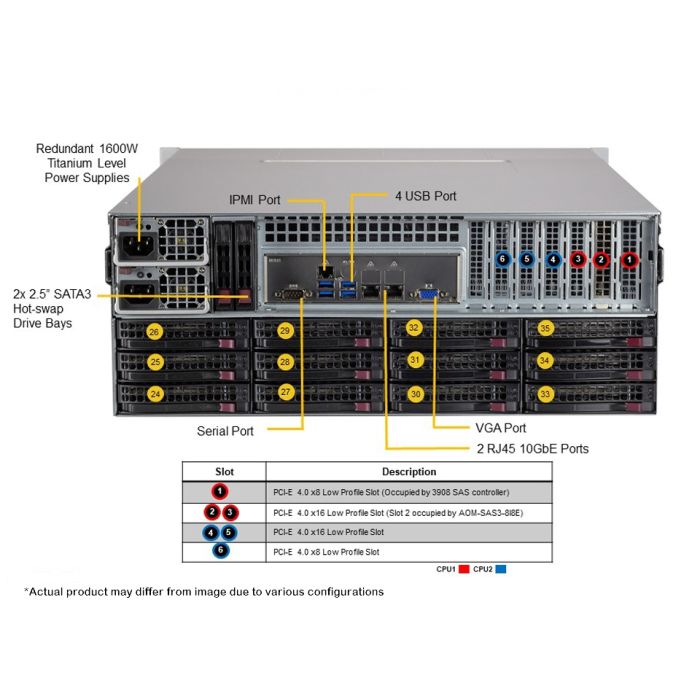

SSG-640P-E1CR36H-Rear

In terms of memory, the SSG-640P-E1CR36H supports up to 4TB of DDR4 ECC memory in 16 DIMM slots, providing the server with the necessary memory resources to handle demanding workloads. The server also comes equipped with onboard dual 10GbE LAN ports, and a dedicated IPMI port for remote management.

With multiple x16 Gen4 PCIe expansion slots, multiple 25G to 200G NICs can be added. Additional features include redundant power supplies and advanced cooling options for reliable and efficient operation.







SKU: SSG-640P-E1CR36H Categorii: , , , , , , , , , ,
Product SKUs
SuperServer SSG-640P-E1CR36H
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W – 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X550
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 4 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
DOM
  • 2 SuperDOM (Disk on Module) port(s)
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-847BTS-R1K68LPBP4
Dimensions and Weight
Height
  • 7″
Width
  • 17.2″
Depth
  • 27.5″
Package
  • 15″ (H) x 27″ (W) x 39″ (D)
Weight
  • Gross Weight: 102.5 lbs (46.4 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 38 bay(s)

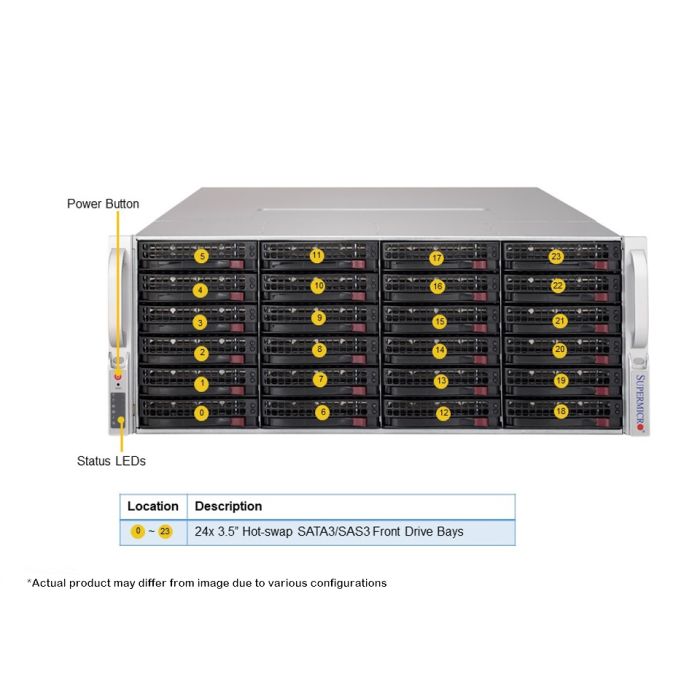

    • 24 front hot-swap 3.5″ SAS/SATA drive bay(s)
    • 12 rear hot-swap 3.5″ SAS/SATA drive bay(s)
    • 2 rear hot-swap 2.5″ SAS*/SATA drive bay(s)
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 NVMe slot(s) (M-key)
System Cooling
Fans
  • 7 Heavy Duty 8cm Fan(s)
Power Supply
QtyWithPsu
  • 2x 1600W
Description
  • 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 800W: 100-140Vac / 50-60Hz
    1600W: 180-240Vac / 50-60Hz
+12V
  • Max: 66A / Min: 0A (100Vac-140Vac)
    Max: 133A / Min: 0A (180Vac-240Vac)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level94%+  Titanium Level

    [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
