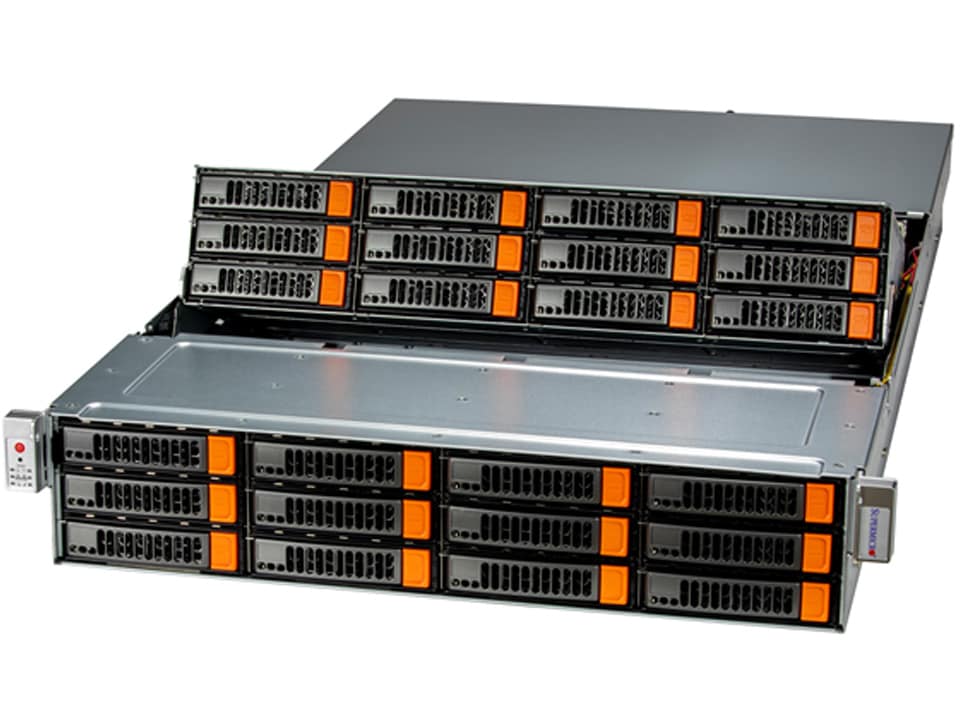

SUPERMICRO Storage SuperServer SSG-620P-E1CR24H (SG-620P-E1CR24H)

Favorite
Compara
Pretul afisat contine TVA (19%).

3.539.392,30 lei

Compara
Specifications
Product SKUs
SSG-620P-E1CR24H
  • SuperServer SSG-620P-E1CR24H (Silver)
Motherboard

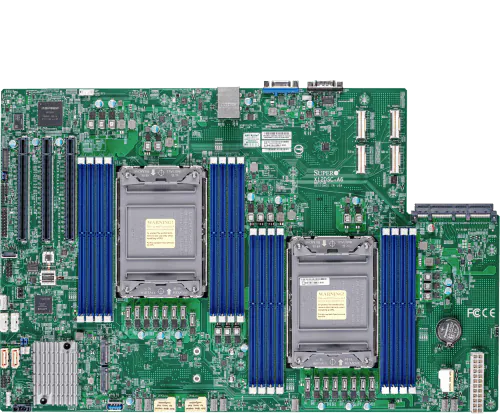

Super X12DSC-A6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 120-205W
Cores
  • Up to 38C/76T; Up to 57MB Cache
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

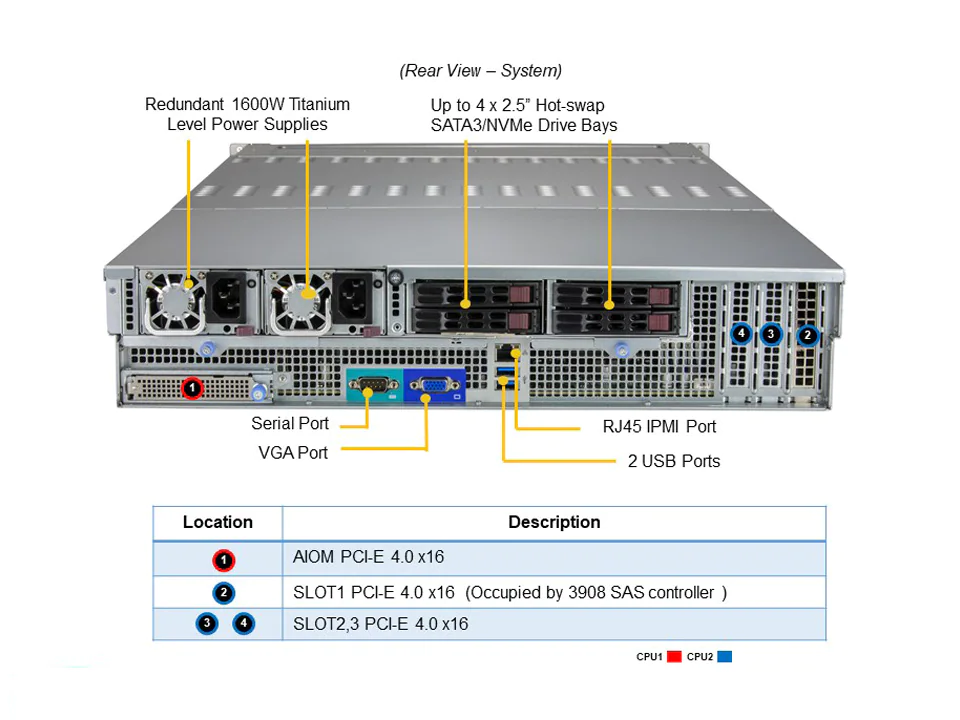

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors



Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826STS-R1K62P1
Dimensions and Weight
Height
  • 3.5″
Width
  • 17.2″
Depth
  • 34″
Package
  • 12″ (H) x 29″ (W) x 52″ (D)
Weight
  • Net Weight: 52 lbs (23.59 kg)
  • Gross Weight: 74.5 lbs (33.79 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCI-E)
  • Slot 2: PCI-E 4.0 x16 LP
  • Slot 3: PCI-E 4.0 x16 LP
  • Slot 4: PCI-E 4.0 x16 AIOM
Drive Bays / Storage
Hot-swap

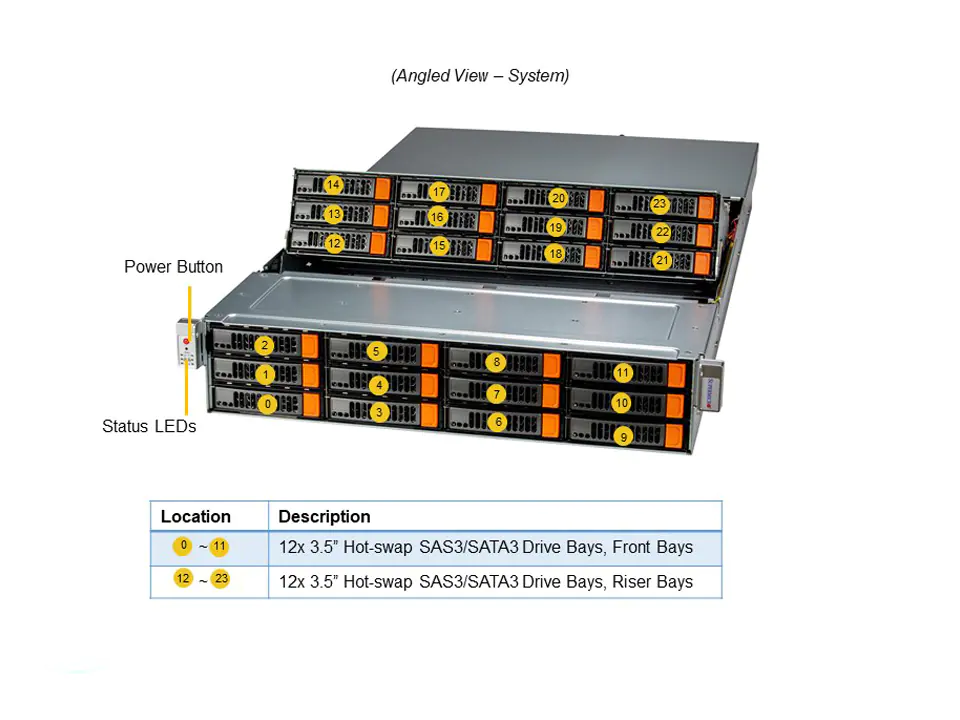

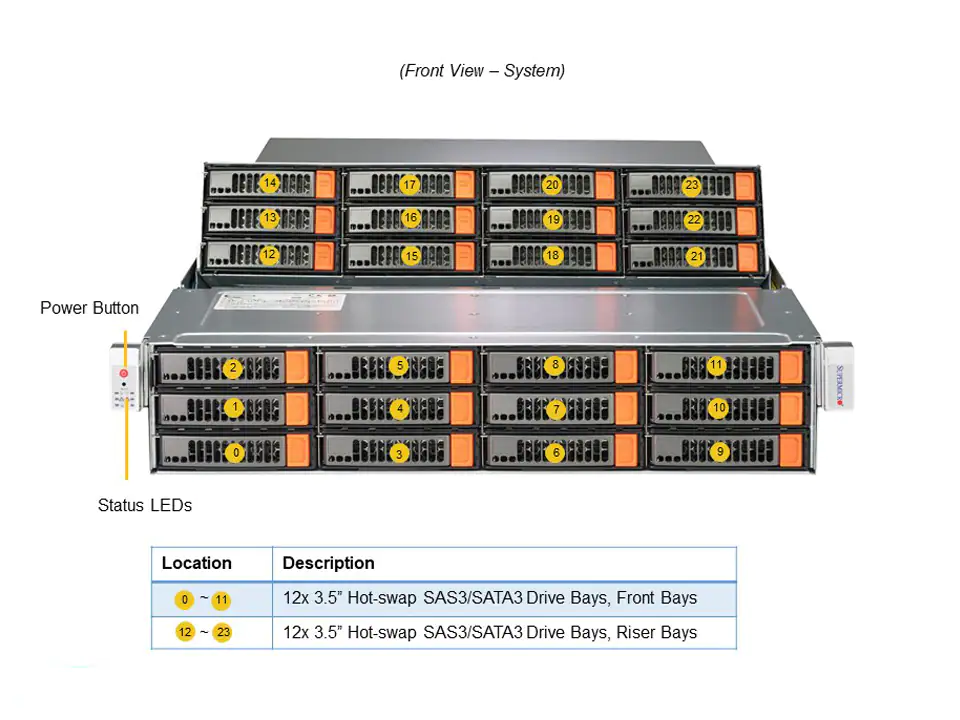

  • 24x 3.5″ hot-swap SATA3/SAS2 drive bays
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)
Power Supply
1600W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • AC-Input
Certification Titanium Level94%+  Titanium Level



[ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
    5% to 95% (Non-Condensing)
