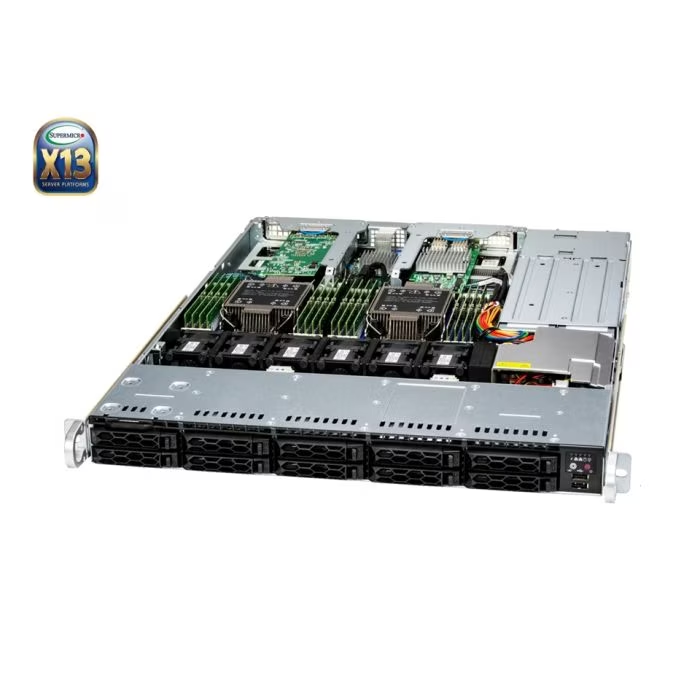

Supermicro SYS-121C-TN10R 1U Rackmount X13 CloudDC SuperServer (SYS-121C-TN10R)



The CloudDC (Cloud Data Center) product family is optimized for data centers and cloud solutions. CloudDC provides customers with the flexibility to fine-tune their configuration to get the best value.

SYS-121C-TN10R supports dual 5th/4th generation Intel® Xeon® Scalable Processor (up to 270W), 4TB DDR5-4800MHz memory in 16 DIMM slots, and 2 PCIe slots including 2 PCIe 5.0 x16. In addition, this system has 2 flexible AIOM ports (OCP 3.0) so you can easily swap in 1GbE, 10GbE, 25GbE, 100GbE AIOM cards to support your networking requirements.

This system includes 10 hot-swappable 2.5” NVMe/SATA/SAS hybrid bays. Whether you want a system with 10 blazing fast drives or just one SATA drive, this system is able to handle your storage needs. If you want to change or add any PCIe or AIOM cards, the two brackets that hold the 2 PCIe cards are all tool-less so you can easily swap out cards at ease.

If you are in the market for a server that is extremely flexible, easy to use, and future-proof, CloudDC is the server for you.

  • Key Features/Applications: Web Server, Firewall Application, Cloud Computing, Compact Server, Data Center Optimized, Value IaaS, DNS & Gateway Servers, CDN, Edge Nodes
  • CPU: Dual 5th/4th Gen Intel® Xeon® Scalable Processors, up to 32 Cores
  • Chassis: 1U
  • Drive: Up to 10x 2.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 4TB of DDR5 ECC RDIMM in 16 DIMM Slots
  • Network Ports: 1x IPMI LAN Port + Flexible AIOM Option
SKU: SYS-121C-TN10R Categorii: , , , , , , , , , ,
Product SKUs
SuperServer SYS-121C-TN10R
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 82.5MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: L4, A2
  • Intel PCIe: Intel Data Center GPU Flex 140
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(VROC HW key required)
Chipset
  • Intel® C741
Network Connectivity
  • Via Slim-AIOM

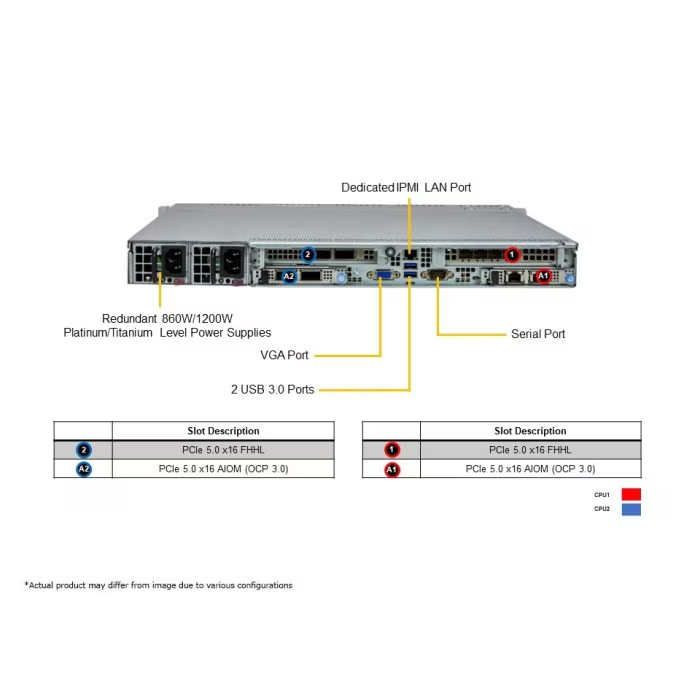

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 2 USB 2.0 port(s) (front)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8 Phase-switching voltage regulator
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R0AWNP3
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 23.5″ (597 mm)
Package
  • 7.8″ (H) x 23.8″ (W) x 32.4″ (D)
Weight
  • Gross Weight: 40 lbs (18.1 kg)
  • Net Weight: 25 lbs (11.3 kg)
Available Color
  • Black front & silver body

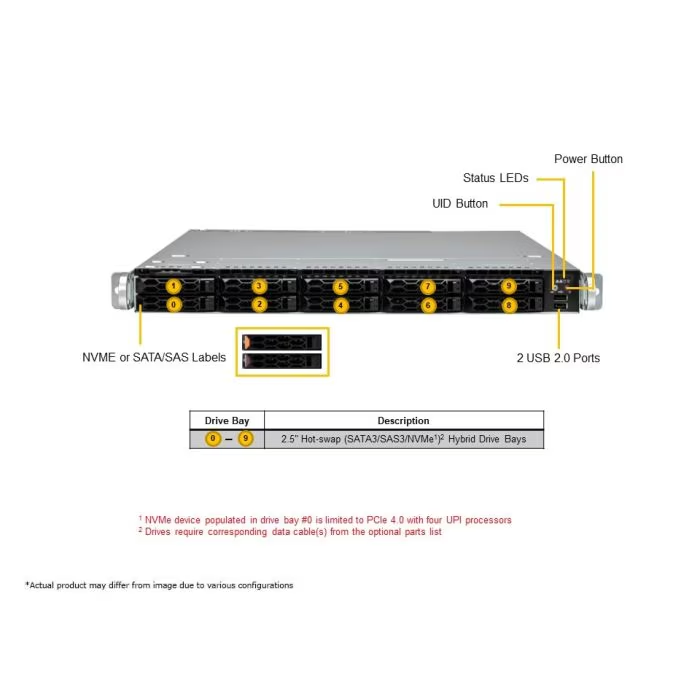

Front Panel
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information
Buttons
  • Power On/Off
  • Unit Identifier (UID)

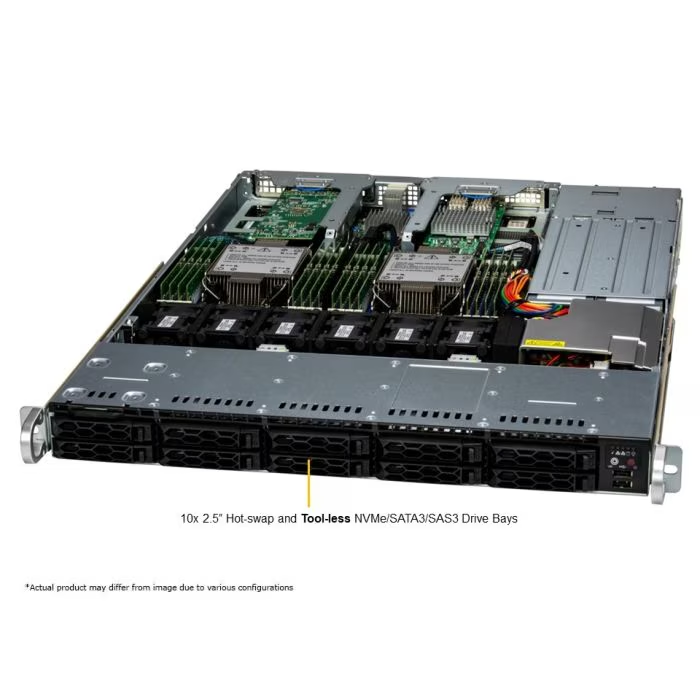

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bay(s)
    • 10 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

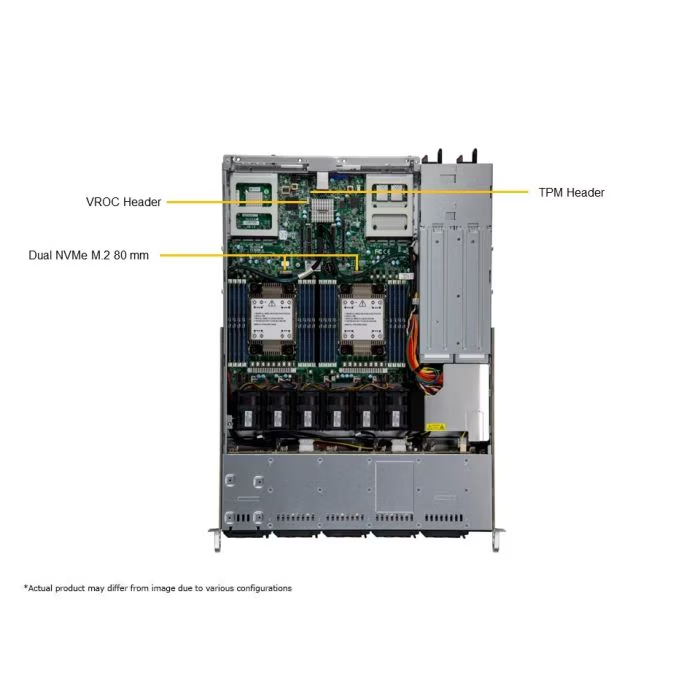

M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280; VROC required for RAID)
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
QtyWithPsu
  • 2x 860W
Description
  • 2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    860W: 240Vdc / 50-60Hz
+12V
  • Max: 66.67A / Min: 0A (100Vac-127Vac)
    Max: 71.67A / Min: 0A (200Vac-240Vac)
    Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Name: A2
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
