Supermicro SYS-121H-TNR 1U Rackmount X13 Hyper SuperServer (SYS-121H-TNR)



SYS-121H-TNR-Top

Hyper SuperServer is a high-performance, highly configurable system designed for enterprise and telco applications, making it an optimal choice for workloads requiring powerful computing capabilities. With its flexible front and rear I/O configurations, you can easily integrate this system into their existing infrastructure.

SYS-121H-TNR supports dual 4th Generation Intel® Xeon® Scalable Processors, 8TB DDR5-4800 memory in 32 DIMM slots, In addition, this system offers flexible networking options with an AIOM slot, allowing businesses to easily pick and choose the networking card that best suit their needs.
HyperSuperServer features lightning-fast storage, powered by the latest generation PCIe 5.0 NVMe SSDs. With up to 12 2.5” hot-swappable hybrid NVMe/SATA/SAS drive bays, this system is capable of handling your storage needs. Hyper SuperServer also features a tool-less design that simplifies serviceability and lowers maintenance time, resulting in lower TCO.
The Hyper SuperServer product family is optimized for your 5G Core, edge, hyperconverged storage, cloud computing, and AI inferencing/machine learning needs.
  • Key Features/Applications: Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
  • CPU: Dual 4th Gen Intel® Xeon® Scalable Processors, up to 60 Cores
  • Chassis: 1U
  • Drive: Up to 8x 2.5″ Hot-Swap NVMe/SATA/SAS + 2x M.2 NVMe/SATA Drive Bays. Supports up to 12x 2.5″ Hot-Swap NVMe/SATA/SAS Drive Bays (Optional)
  • RAM: Up to 8TB of DDR5 ECC RDIMM in 32 DIMM Slots
  • Network Ports: Flexible Networking Options
SKU: SYS-121H-TNR Categorii: , , , , , , , ,
Product SKUs
SuperServer SYS-121H-TNR
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)*
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
  • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 1 double-width or 3 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100, RTX A5000, RTX A4000, L40S, L4
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
Certification
System Memory

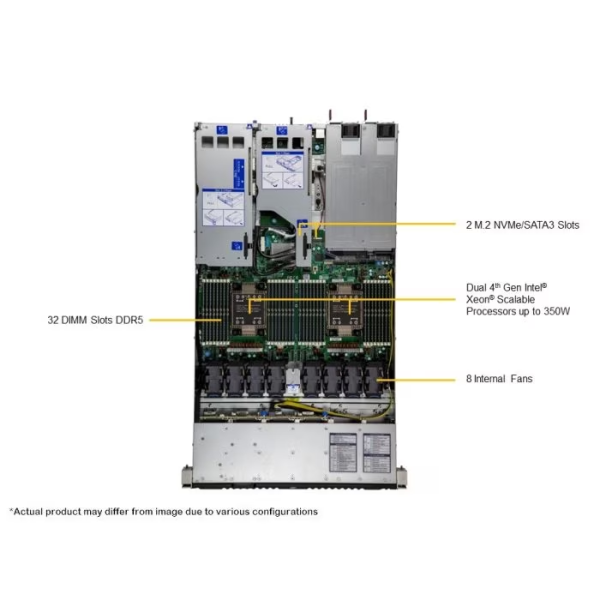

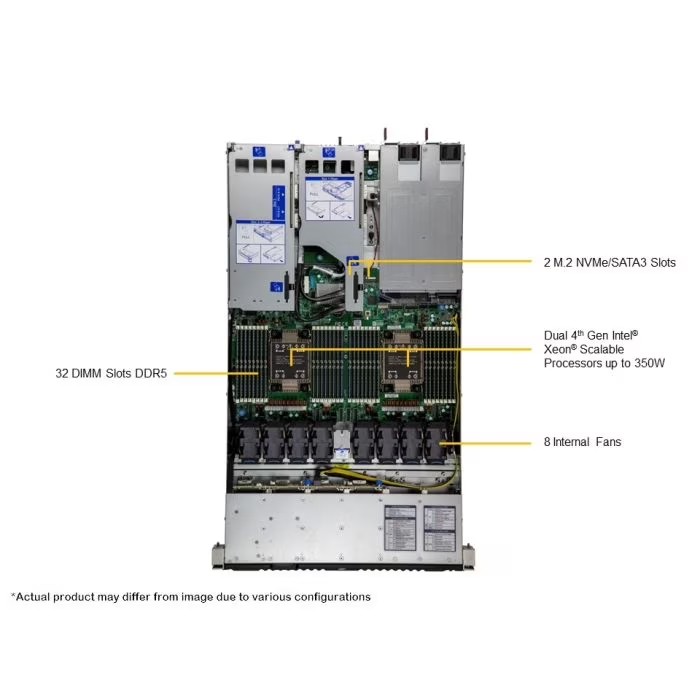

Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset
  • Intel® C741
Network Connectivity
  • Via AIOM

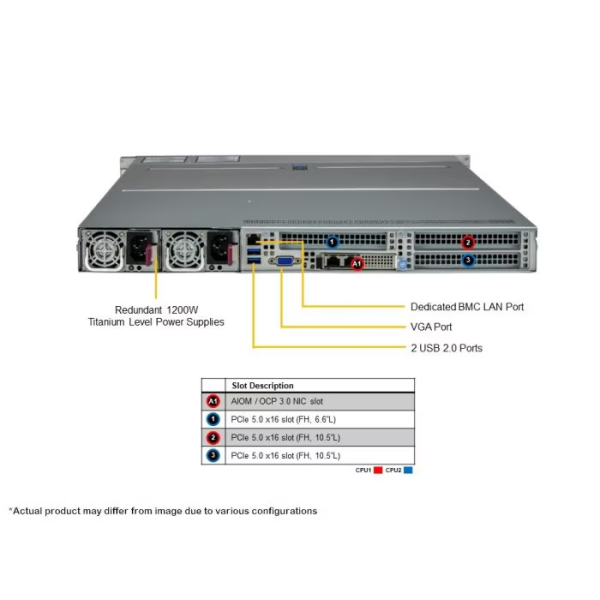

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB
  • 2 USB 2.0 port(s) (rear)
  • 1 USB 3.0 port(s) (front)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-HS119-R1K24P2
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.4″ (747 mm)
Package
  • 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Gross Weight: 49 lbs (22.2 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • N/A

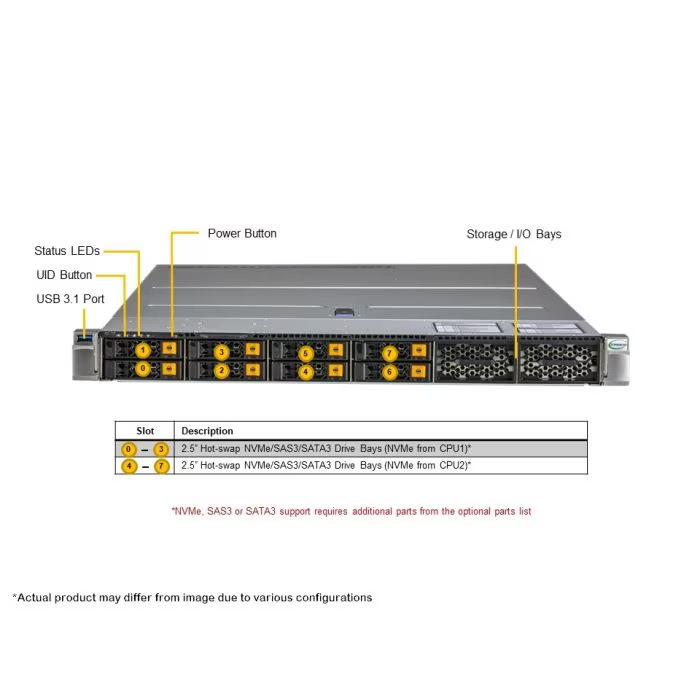

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power
  • System information
Buttons
  • Power On/Off
  • UID button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • Option A: Total 12 bay(s)
    • 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
QtyWithPsu
  • 2x 1200W
Description
  • 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
