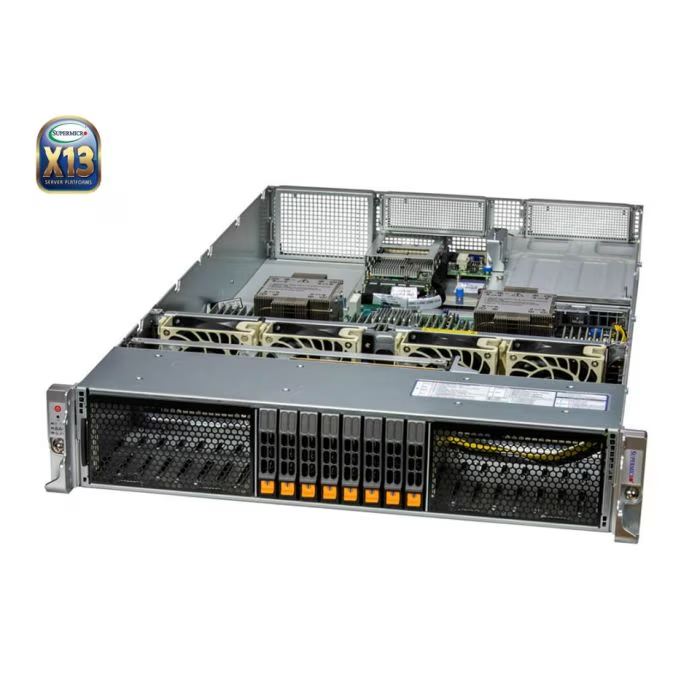

Supermicro SYS-221H-TNR 2U Rackmount X13 Hyper SuperServer (SYS-221H-TNR)



Powerful Processing for Diverse Applications

The SYS-221H-TNR, powered by dual 4th Gen Intel® Xeon® Scalable processors, caters to a spectrum of applications, from virtualization and software-defined storage to AI inference and machine learning. Its processing capabilities make it a robust solution for cloud computing and enterprise server needs.

Scalable Memory and Flexible Expansion

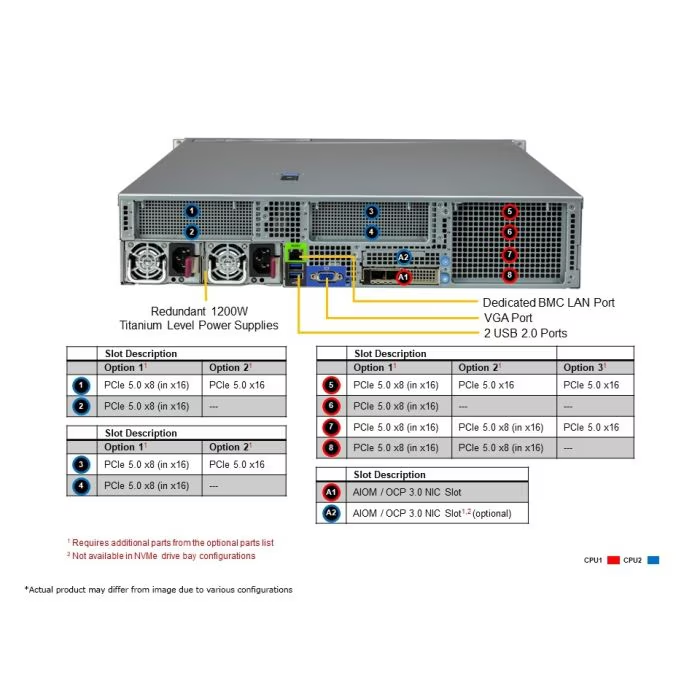

With 32 DIMM slots supporting up to 8TB of DDR5-4800 memory, this server ensures optimal performance and scalability. Tailor the system to your needs with flexible PCIe configurations, offering up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots, accommodating double-width GPU/accelerator cards for enhanced capabilities.

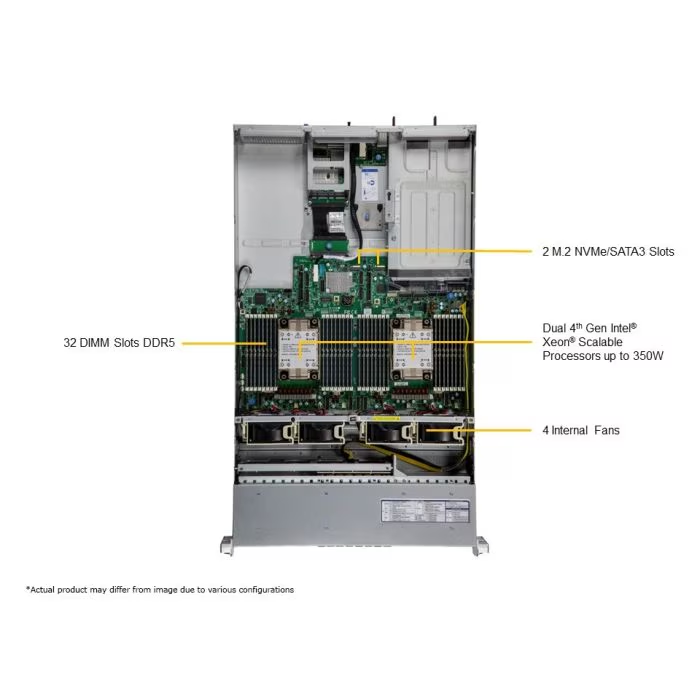

SYS-221H-TNR Top

Storage Efficiency and Redundancy

The SYS-221H-TNR maximizes storage efficiency with 8 hot-swap NVMe/SATA/SAS drive bays, expandable to 16 with optional configurations. Internal M.2 NVMe/SATA slots and RAID support options ensure data integrity and redundancy for critical applications.

Smart Cooling and Networking Solutions

Experience optimal thermal management with 4 heavy-duty hot-swap fans and adjustable fan speed control. The server provides flexible networking options, incorporating up to 2 AIOM networking slots (OCP NIC 3.0 compatible) for tailored connectivity solutions. Elevate your infrastructure with the Supermicro SYS-221H-TNR, where power meets versatility.



  • Key Features/Applications: Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
  • CPU: Dual 4th Gen Intel® Xeon® Scalable Processors, up to 60 Cores
  • Chassis: 2U
  • Drive: Up to 8x 2.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 8TB of DDR5 ECC DRAM in 32 DIMM Slots
  • Network Ports: Flexible Networking Options
SKU: SYS-221H-TNR Categorii: , , , , , , , , , , , ,
Product SKUs
SuperServer SYS-221H-TNR
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 4 double-width or 4 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100, L40, RTX A6000, RTX A4000, L40S, A40, A16, A100
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset
  • Intel® C741
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB
  • 2 USB 2.0 port(s) (rear)
  • 2 USB 3.0 port(s) (Header)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS219-R1K24P
Dimensions and Weight
Height
  • 3.5″ (88.9 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.9″ (760 mm)
Package
  • 10.4″ (H) x 23.8″ (W) x 43.6″ (D)
Weight
  • Gross Weight: 66 lbs (30 kg)
  • Net Weight: 40 lbs (18.2 kg)
Available Color
  • N/A

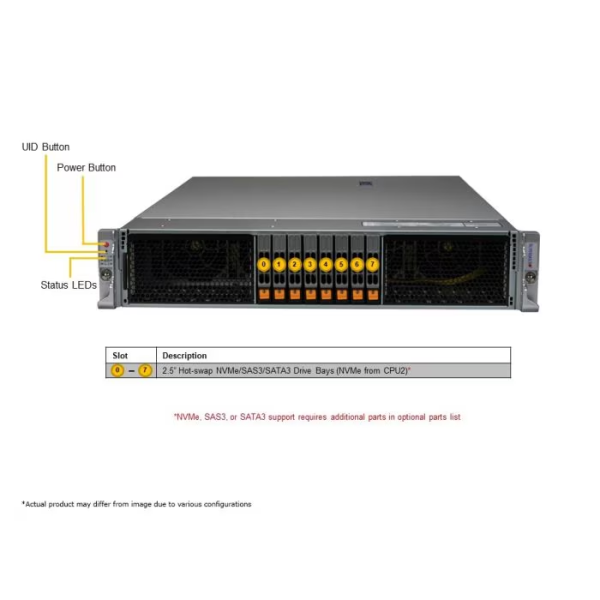

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power
  • Power Fail
  • System information
Buttons
  • Power On/Off
  • UID button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • Option A: Total 16 bay(s)
    • 16 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 4 counter-rotating 80x80x38mm Fan(s)

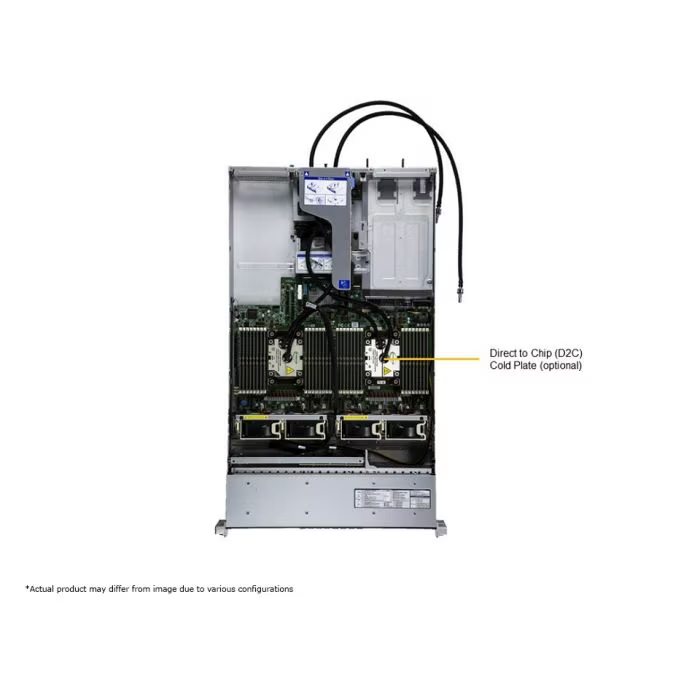

Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
QtyWithPsu
  • 2x 1200W
Description
  • 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
