Supermicro SYS-611C-TN4R 1U Rackmount X13 CloudDC SuperServer (SYS-611C-TN4R)



Versatile CloudDC SYS-611C-TN4R: Unleashing Scalability and Performance

Experience superior performance with dual sockets supporting the latest 5th and 4th Gen Intel® Xeon® Scalable processors. The 16 DIMM slots allow scalability up to 4TB of 3DS ECC DDR5-5600 memory, making it an ideal choice for web servers, data center optimization, cloud computing, DNS & gateway servers, CDN, and edge nodes.

Flexible Configurations and Storage Solutions

Tailor your system to meet specific requirements with 2 PCIe 5.0 x16 FHHL slots and 2 PCIe 5.0 x4 NVMe M.2 slots. The server’s adaptability extends to its storage options, featuring 4 hot-swappable hybrid NVMe/SATA/SAS drive bays.

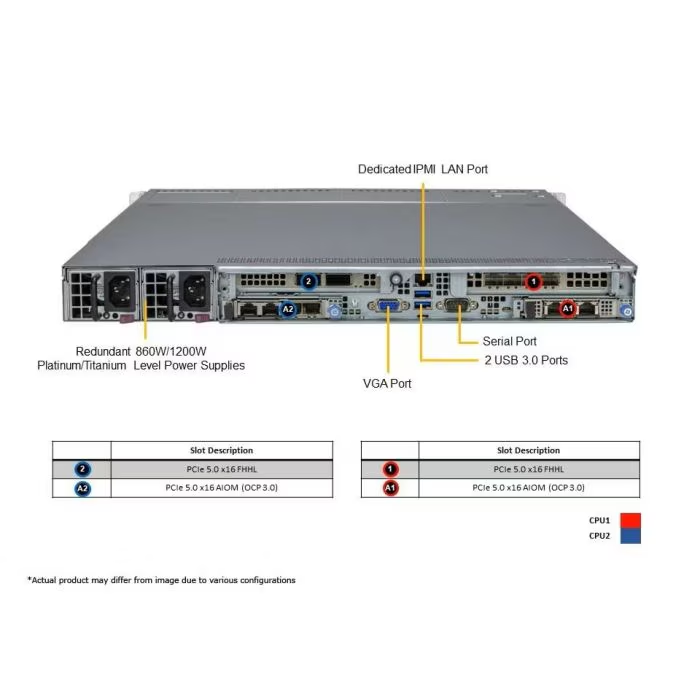

SYS-611C-TN4R Rear

Efficient and Reliable CloudDC Family

The CloudDC product family is meticulously designed for data centers and cloud solutions, offering users flexibility in configuration to maximize value. With 860W redundant Titanium-level power supplies and advanced cooling technology, this server guarantees reliability and longevity.

User-Friendly, Future-Ready Solution

CloudDC SYS-611C-TN4R is not just a server; it’s a flexible, user-friendly, and future-proof solution. Whether you seek scalability, performance, or adaptability, CloudDC is your go-to choice for a reliable, efficient, and powerful server infrastructure.



  • Key Features/Applications: Web Server, Firewall Application, Cloud Computing, Compact Server, Data Center Optimized, Value IaaS, DNS & Gateway Servers, CDN, Edge Nodes
  • CPU: Dual 5th/4th Gen Intel® Xeon® Scalable Processors, up to 32 Cores
  • Chassis: 1U

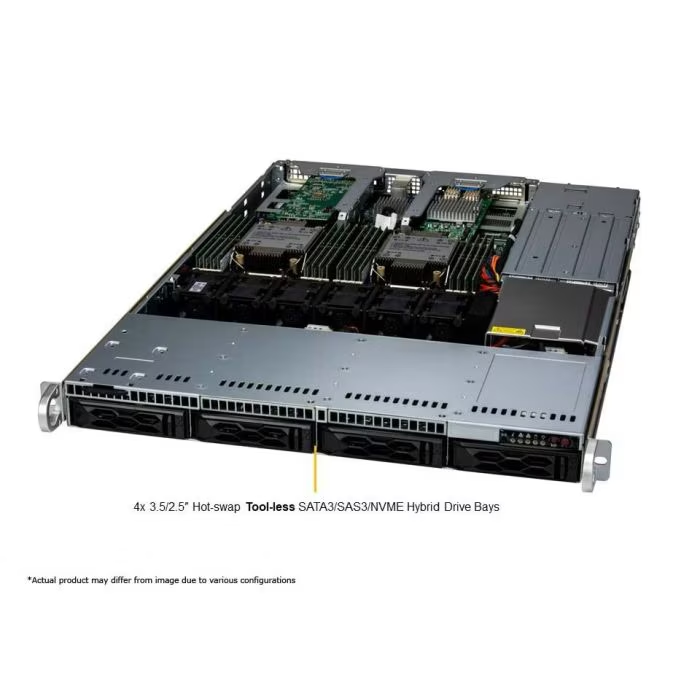

  • Drive: Up to 4x 3.5″/2.5″ Hot-Swap and Tool-Less NVMe/SATA/SAS Drive Bays
  • RAM: Up to 4TB of DDR5 ECC RDIMM in 16 DIMM Slots
  • GPU: Up to 2 Low-Profile GPUs
  • Network Ports: 2x AIOM (OCP 3.0) Slots with NCSI
  • Power Supply: 2x 860W Redundant Titanium Level Power Supplies





SKU: SYS-611C-TN4R Categorii: , , , , , , , , , ,
Product SKUs
SuperServer SYS-611C-TN4R
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 82.5MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: L4, A2
  • Intel PCIe: Intel Data Center GPU Flex 140
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(VROC HW key required)
Chipset
  • Intel® C741
Network Connectivity
  • Via Slim-AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8 Phase-switching voltage regulator
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LA15TS-R0AWNP2
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 7.8″ (H) x 23.8″ (W) x 34.6″ (D)
Weight
  • Gross Weight: 46 lbs (20.9 kg)
  • Net Weight: 25 lbs (11.3 kg)
Available Color
  • Black front & sliver body

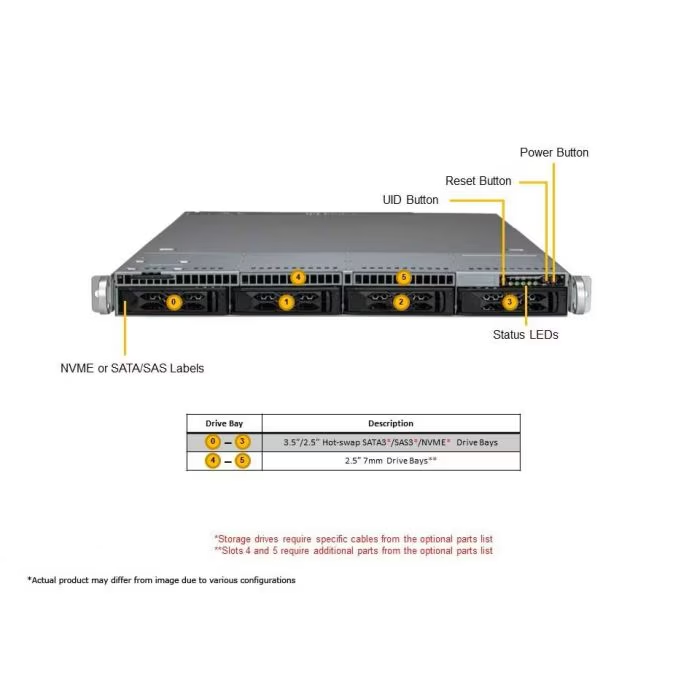

Front Panel
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information
Buttons
  • Power On/Off
  • Reset button
  • Unit Identifier (UID)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 front hot-swap 3.5″ NVMe*/SAS*/SATA* drive bay(s)
  • Option A: Total 4 bay(s)
    • 4 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280(default); VROC required for RAID)
Peripheral Bays
  • 2 2.5″ peripheral bay(s) (optional)
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
QtyWithPsu
  • 1x 860W
Description
  • 1x 860W Redundant Titanium Level (96%) Hot-plug power supply
Dimension (WxHxL)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    860W: 240Vdc / 50-60Hz
+12V
  • Max: 66.67A / Min: 0A (100Vac-127Vac)
    Max: 71.67A / Min: 0A (200Vac-240Vac)
    Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Name: A2
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
