SUPERMICRO Twin SuperServer SYS-220TP-HC9TR (SYS-220TP-HC9TR)

Favorite
Compara
Pretul afisat contine TVA (19%).

67.388,01 lei

Compara
Specifications
Product SKUs
SYS-220TP-HC9TR
  • SuperServer SYS-220TP-HC9TR (Black front & sliver body)
Motherboard

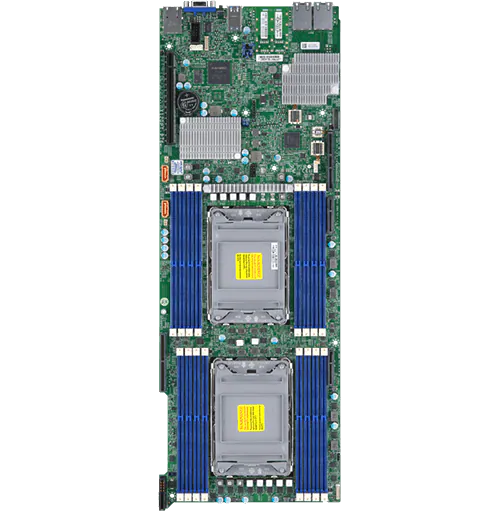

Super X12DPT-PT6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA 4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 185W *
Cores
  • Up to 32C/64T; Up to 48MB Cache
Note
  • *Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.
System Memory (per Node)
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X710-AT2
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Others
  • M.2 2 NVME M.2 (up to 22×80 mm) support via installed SCC-P2N2M2-P2 and M.2 for OS boot only.
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • 5 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors



Chassis
Form Factor
  • 2U Rackmount
Model
  • CSV-217HQ+-R2K20BP4
Dimensions and Weight
Height
  • 3.47″ (88mm)
Width
  • 17.25″ (438mm)
Depth
  • 28.75″ (730mm)
Package
  • 10″ (H) x 24.5″ (W) x 45″ (D)
Weight
  • Net Weight: 72 lbs (32.7 kg)
  • Gross Weight: 90 lbs (40.9 kg)
Available Color
  • Black front & sliver body
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Network activity LED
  • Power status LED
  • System information (overheat/UID) LED
Expansion Slots (per Node)
PCI-Express (PCI-E)
  • Slot 2: PCI-E 4.0 x16 LP
  • Internal Slot: M.2
Drive Bays / Storage (per Node)
Hot-swap
  • 6x 2.5″ hot-swap SATA/SAS drive bays
System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 4 Air Shroud(s)
Power Supply
1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 2200W: 200-240Vac / 50-60Hz
DC Input
  • 2090W: 230-240Vdc for CCC only
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 183.3A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Gold Finger Connector
Certification Titanium Level94%+  Titanium Level



[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
SKU: SYS-220TP-HC9TR Categorii: , , , , , , , , ,
