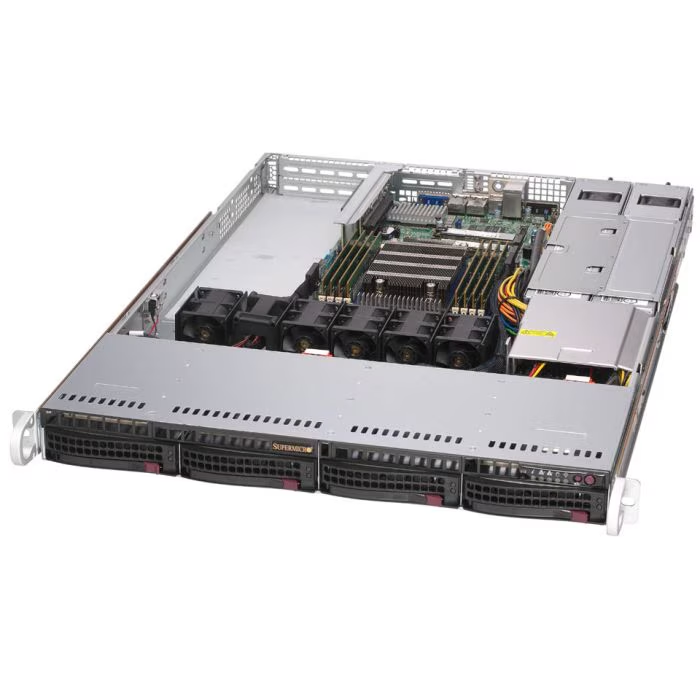

Supermicro AS -1014S-WTRT-EU 1U Rackmount WIO SuperServer (AS -1014S-WTRT-EU)



Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

The Supermicro AS -1014S-WTRT-EU WIO SuperServer® supports a Single AMD EPYC™ 7002/7003 Series Processor and up to 2TB DDR4-3200MHz memory in 8 DIMM slots. The AS -1014S-WTRT-EU includes 4 hot-swappable 3.5″ SATA drive bays (2.5″ with converter drive tray) which makes changing hard drives easy without needing to open up the server. In addition, this WIO supports up to 2 SuperDOM with built-in power which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs). This system has 2 x 10GBase-T LAN onboard ports via Broadcom BCM57416 controller for super fast networking speeds.

The 1U UP WIO server supports up to 3 PCI-E 4.0 add-on cards (via included riser card), 2 of which support full height full length (FHFL) and 1 which is a low profile (LP) slot. To power the entire system, there is a 500W redundant titanium power supply with an over 96% efficiency rating.

Supermicro WIO SuperServers are optimized for DB processing & storage, data center application, and firewall applications.



  • Key Features/Applications: Database Processing and Storage, Data Center Applications, Firewall Applications
  • CPU: Single AMD EPYC™ 7003/7002 Series Processor, up to 64 Cores
  • Chassis: 1U
  • Drive: Up to 4x 3.5″ Hot-Swap SATA Drive Bays. Supports up to 4x U.2 NVMe Drive Bays (Optional)
  • RAM: Up to 2TB of DDR4 ECC RDIMM/LRDIMM in 8 DIMM Slots
  • Network Ports: 2x 10GbE RJ45 LAN Ports



SKU: AS -1014S-WTRT-EU Categorii: , , , , , , , , , ,
Product SKUs
AS -1014S-WTRT
  • Standard version with PWS-504P-1R (Platinum Level)
AS -1014S-WTRT-EU
  • European version with PWS-601A-1R (Titanium Level)
Motherboard
Super H12SSW-NT
Processor/Cache
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Support CPU TDP up to 280W
Cores
  • Up to 64 Cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output
NVMe
  • 4 U.2 NVMe Support via optional kit
SATA
  • 4 SATA3 (6 Gbps) ports

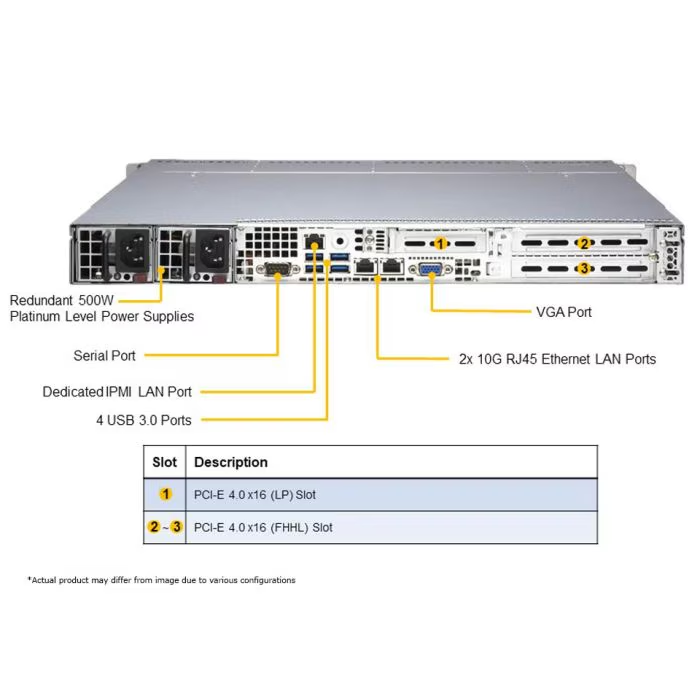

LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (4 rear, 1 Type A)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Super Doctor 5
  • Watch Dog
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TS-R504WBP4
Dimensions and Weight
Height
  • 1.7″ (43mm)
Width
  • 17.2″ (437mm)
Depth

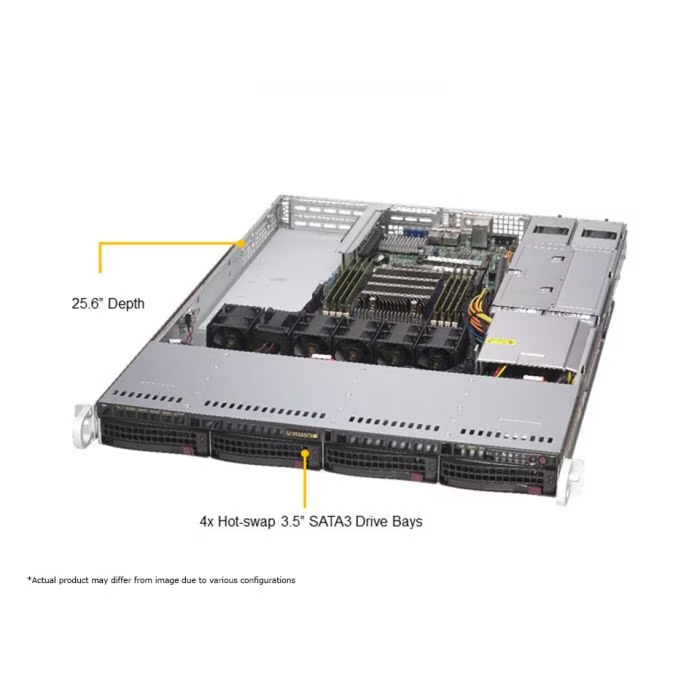

  • 25.6″ (650mm)
Package
  • 7.63″ (H) 23.42″ (W) 31.45″ (D)
Weight
  • Gross Weight: 46 lbs (20.87kg)
  • Net Weight: 22 lbs (9.98kg)
Available Colors
  • Black

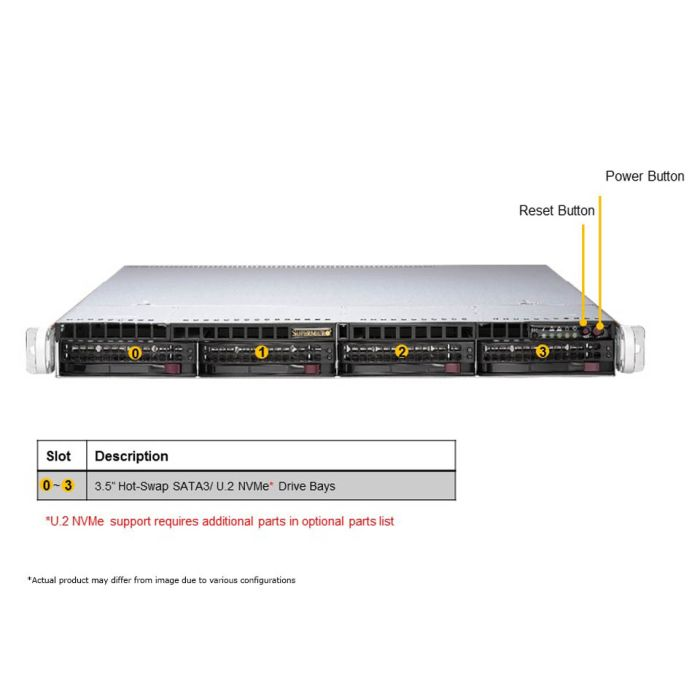

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHFL) slots
  • 1 PCI-E 4.0* x16 (LP) slot

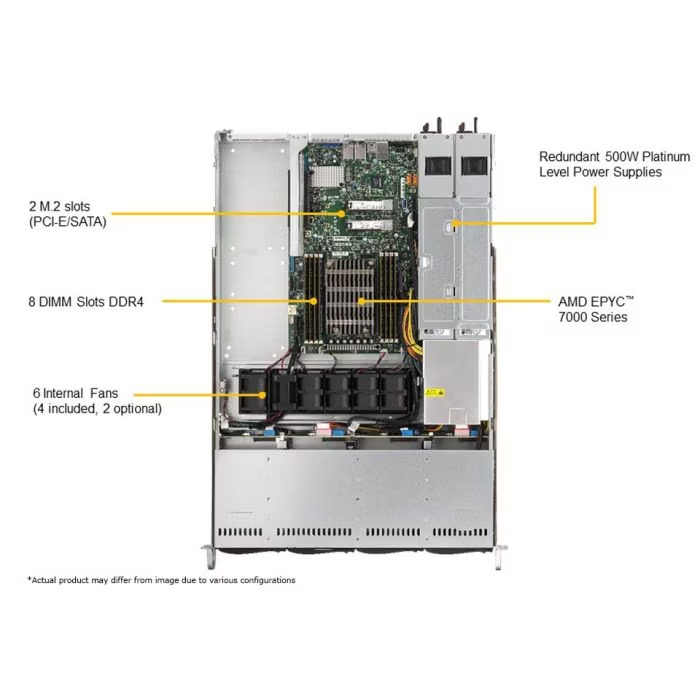

  • 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots
  • * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.
Drive Bays
Hot-swap
  • 4 Hot-swap 3.5″ SATA3 drive bays
  • Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
Peripheral
  • 1 Slim DVD-ROM drive bay (optional)
Backplane
SAS/SATA/NVMe HDD Backplane
System Cooling
Fans
  • 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
Power Supply
500W Redundant Power Supplies with PMBus
Note: AS -1014S-WTRT-EU (European) SKU uses PWS-601A-1R (Titanium Level)
Total Output Power
  • 500W
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100-240Vac, 50-60Hz, 6.1-2.6A
+12V
  • Max: 42A / Min: 0.5A
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor
  • +5V: 25A
  • +3.3V: 12A
  • -12V: 0.6A
Certification Platinum Level Certified  Platinum Certified
[ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
