Supermicro AS -1015A-MT 1U Rackmount H13 Mainstream SuperServer (AS -1015A-MT)



Empowering SMBs: Supermicro AS -1015A-MT

Unlock the potential of your small or medium-sized business with the Supermicro AS -1015A-MT. Engineered for versatility, this server is tailored for various key applications, including web/hosting, email/firewall, and application servers.

Efficient Performance with AMD Ryzen™ 7000 Series

The AS -1015A-MT is powered by AMD Ryzen™ 7000 Series processors, delivering robust performance with a max TDP of 170W. Whether you’re running hosting applications or managing your business email servers, this server ensures optimal efficiency for your day-to-day operations.

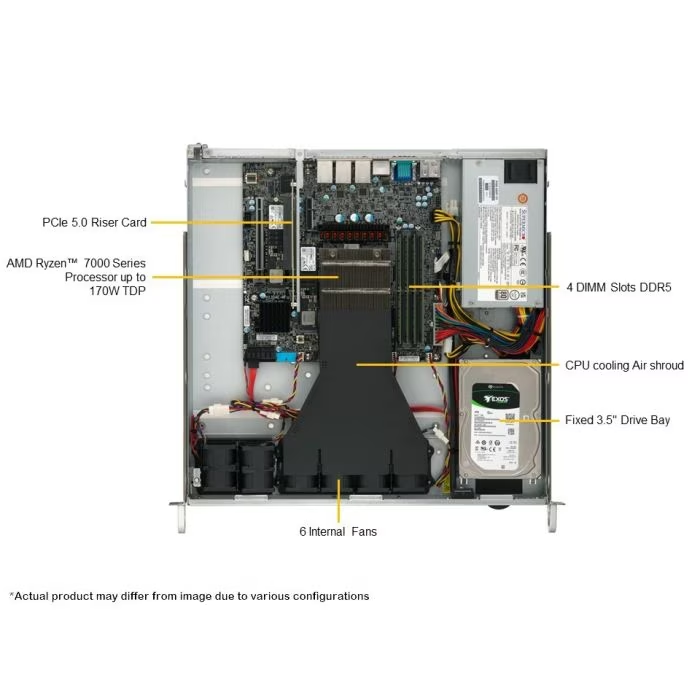

AS -1015A-MT Top

Scalable and Reliable Memory Options

Featuring 4 DDR5 UDIMM slots supporting ECC/Non-ECC DDR5-5200 memory, the server offers a total capacity of up to 128GB. This ensures a seamless experience, providing the necessary memory for demanding applications without compromising reliability.

Connectivity and Management

Equipped with essential features, including a PCIe 5.0 x16 slot, dual 1GbE LAN (Intel® I210-AT), and IPMI 2.0 + KVM with Dedicated LAN, the AS -1015A-MT offers robust connectivity and efficient server management, enabling smooth and hassle-free operations.

Powerful and Green

With a 500W High-Efficiency Power Supply Platinum Level Certified, the server not only meets your performance needs but also contributes to energy efficiency. This ensures a balance between powerful computing capabilities and environmentally conscious operations.



  • Key Features/Applications: Web/Hosting Application, Email/Firewall/Application Server, Designed for small and medium businesses
  • CPU: Single AMD Ryzen™ 7000 Series Processors, up to 16 Cores
  • Chassis: 1U
  • Drive: Up to 1x 3.5″ SATA Drive Bays or 4x 2.5″ SATA Drive Bays (Optional)
  • RAM: Up to 192GB of DDR5 ECC UDIMM in 4 DIMM Slots
  • GPU: Up to 1 GPU
  • Network Ports: 2x 1GbE RJ45 LAN Ports
  • Power Supply: 500W High-Efficiency Platinum Level Power Supplies





SKU: AS -1015A-MT Categorii: , , , , , , , , , ,
Product SKUs
A+ Server AS -1015A-MT
Processor
CPU
  • Single Socket AM5 (LGA-1718)
  • AMD EPYC™ 4004 Series Processor
Core Count
  • Up to 16C/32T
Note
  • Supports 60W – 170W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX A4000, L4, A2
  • AMD PCIe: Radeon Pro W7500
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 192GB 5200MT/s ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • AMD B650
Network Connectivity
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 2 RJ45 1GbE with Intel® I210-AT

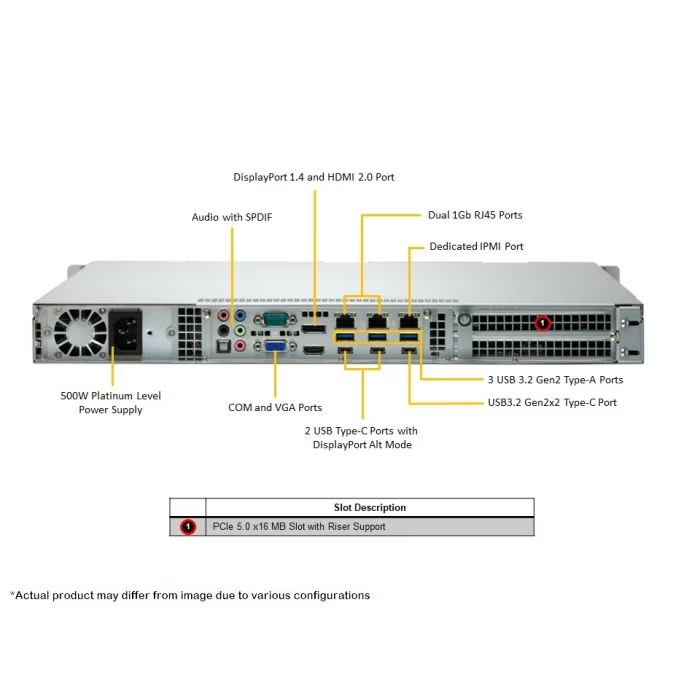

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 3 Type-A port(s) (Rear)
  • 2 Type-C port(s) (Rear)
  • 1 Type-C port(s) (Rear)
Video
  • 1 VGA port(s)
  • 1 DisplayPort 1.4 port(s)
  • 1 HDMI 2 port(s)
Audio
  • Rear Audio
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI 6.0 Power Management
PC Health Monitoring
FAN
  • Status monitor for speed control
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
Chassis
Form Factor
  • 1U
Model
  • CSE-514-505
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)

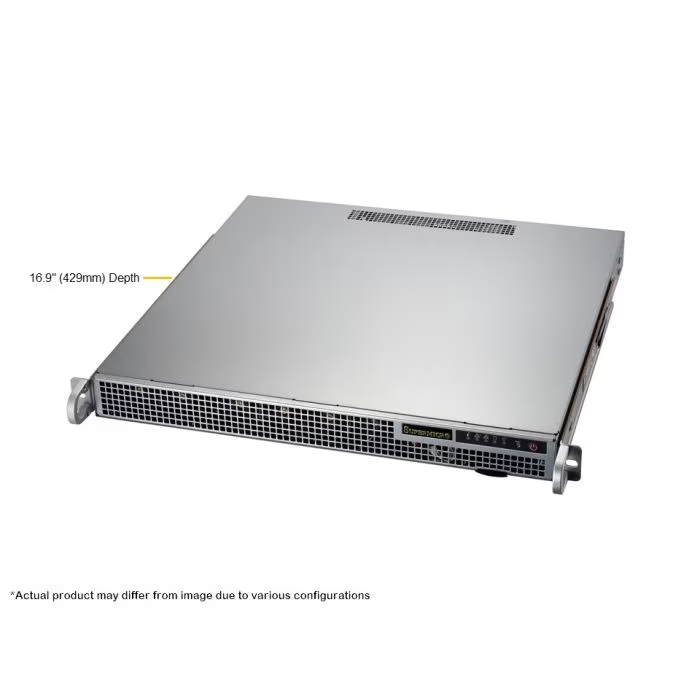

Depth
  • 16.9″ (429 mm)
Package
  • 8″ (H) x 27″ (W) x 24″ (D)
Weight
  • Gross Weight: 16 lbs (7.26 kg)
Available Color
  • Silver

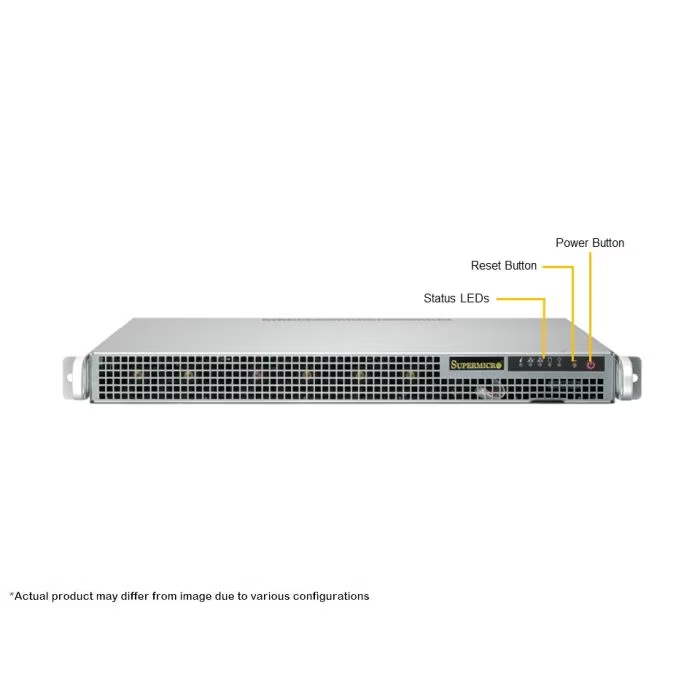

Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • System Reset button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 1 bay(s)
    • 1 internal fixed 3.5″ SATA drive bay(s)
  • Option A: Total 4 bay(s)
    • 4 internal fixed 2.5″ SATA* drive bay(s)
  • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 6x 40mm Fan(s)
Power Supply
QtyWithPsu
  • 1x 500W
Description
  • 1x 500W Platinum Level (93%) power supply
Dimension (WxHxL)
  • 100 x 40 x 180 mm
AC Input
  • 500W: 100-240Vac / 50-60Hz
+12V
  • Max: 41A / Min: 0.5A (100Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Output Type
  • 24pin ATX
Certification
  • Platinum Level Certified  Platinum Level[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
