Supermicro AS -1114CS-TNR-EU 1U Rackmount CloudDC SuperServer (AS -1114CS-TNR-EU)



CloudDC (Cloud Data Center) is the newest product in the Supermicro H12 family. The CloudDC product family is optimized for data centers and cloud solutions. CloudDC provides customers with the flexibility to fine-tune their configuration to get the best value.

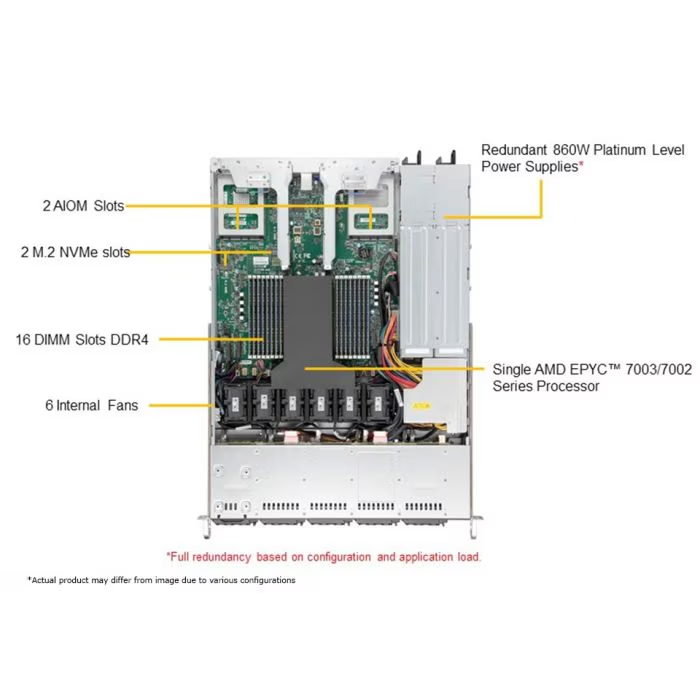

AS -1114CS-TNR-EU supports a Single AMD EPYC™ 7002/7003 Series Processor, 4TB DDR4-3200MHz of memory in 16 DIMM slots, and 2 PCI-E slots including 2 PCI-E 4.0 x16 (FHFL). In addition, this system has 2 flexible AIOM ports (One x8 AIOM slot and one x16 AIOM slot) so you can easily swap in 1GbE, 10GbE, 25GbE, or 100GbE AIOM cards to support your networking requirements.

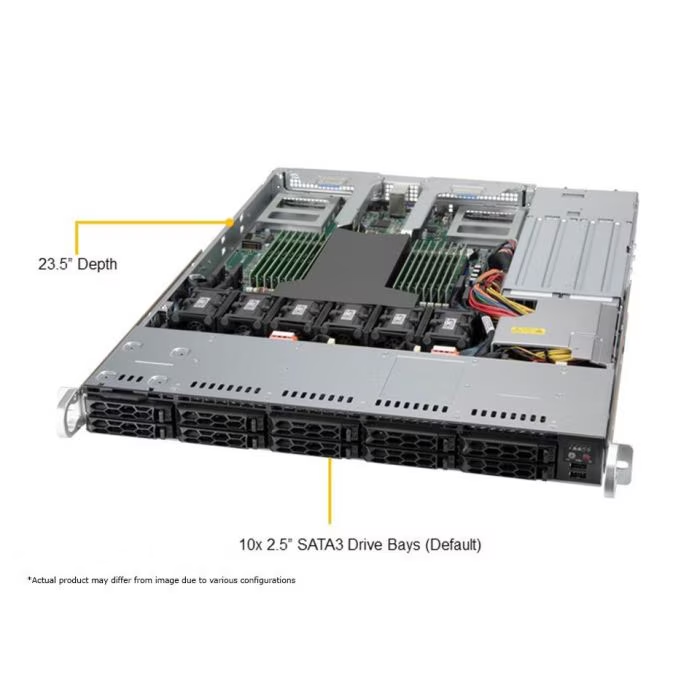

This system includes 10 hot-swappable 2.5” hybrid (NVMe, SATA, SAS) drive bays. Whether you want a system with 10 blazing fast NVMe drives or just one SATA drive, this system is capable of handling your storage needs. If you want to change or add any PCI-E or AIOM cards, the two brackets that holds the 2 PCI-E cards are all tool-less so you can easily swap out cards at ease.

If you are in the market for a server that is extremely flexible, easy to use, and future-proof, CloudDC is the server for you.



  • Key Features/Applications: Financial Services, Cloud Computing, Network Appliance, Private Cloud, CDN, Deep Learning Inferencing
  • CPU: Single AMD EPYC™ 7003/7002 Series Processor, up to 64 Cores
  • Chassis: 1U
  • Drive: Up to 10x 2.5″ Hot-Swap SATA Drive Bays. Supports up to 10x SAS3/NVMe Drive Bays (Optional)
  • RAM: Up to 4TB of DDR4 ECC RDIMM/LRDIMM in 16 DIMM Slots
  • Network Ports: 1x RJ45 LAN Ports + Flexible AIOM Options
SKU: AS -1114CS-TNR-EU Categorii: , , , , , , , , , ,
Product SKUs
AS -1114CS-TNR
  • Standard version with PWS-860P-1R2 (Platinum Level)
AS -1114CS-TNR-EU
  • European version with PWS-861A-1R (Titanium Level)
Motherboard
Super H12SSW-AN6
Processor/Chipset
CPU
  • Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores
Note
  • CPU 7773X, 7573X, 7473X, 7373X, 75F3, or 7763 requires updating Fans to 6x FAN-0163L4
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Flexible networking provided via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2600 BMC

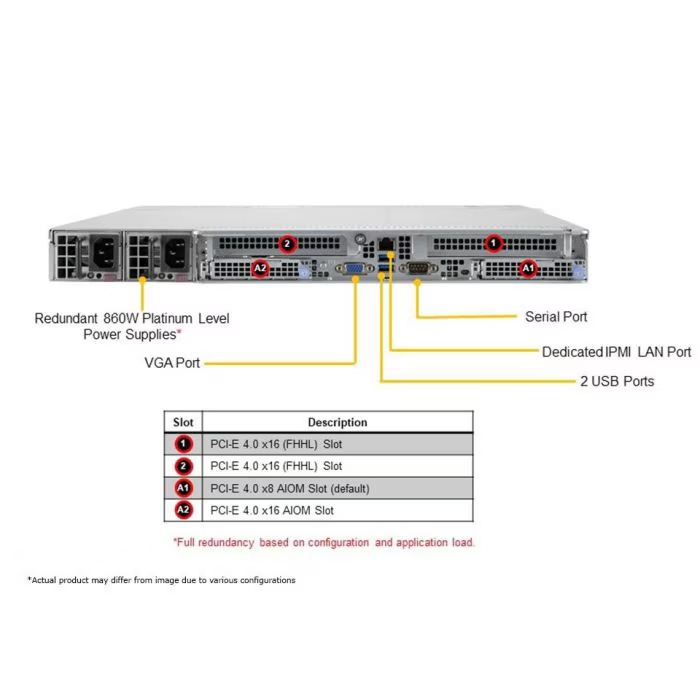

Input / Output
SATA
  • 16 SATA3 (6 Gbps) ports
LAN
  • Networking provided via AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
COM
  • 1 COM Port (rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256Mb SPI Flash EEPROM
Management
Software
  • Super Doctor 5
  • Watch Dog
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • 6 Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R860AWP2
Dimensions and Weight
Width
  • 17.2″ (437mm)
Height
  • 1.7″ (43mm)
Package
  • 7.76″ (H) 23.82″ (W) 32.36″ (D)
Depth
  • 23.5″ (597mm)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black

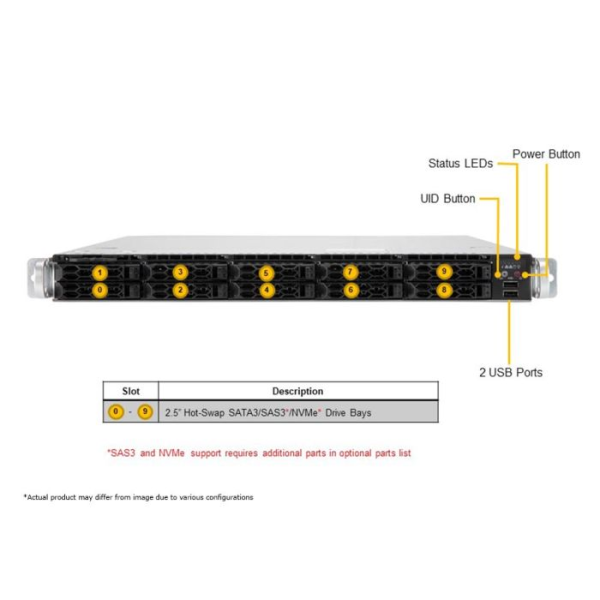

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHHL) slots
  • 2 PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot)
Drive Bays
Hot-swap
  • 10 Hot-swap 2.5″ SATA3 drive bays
  • Optional 10 SAS3/NVMe drive support via additional SAS/NVMe kit
Backplane
SAS/SATA/NVMe HDD Backplane
System Cooling
Fans
  • 6 Counter-rotating 40x40x56mm PWM fans
Power Supply
800W/860W 1U redundant power supply
Note: AS -1114CS-TNR-EU (European) SKU uses PWS-861A-1R (Titanium Level)
Total Output Power and Input
  • 800W with Input 100 – 127Vac
  • 860W with Input 200 – 240Vac
  • 860W with Input 200 – 240Vdc
Dimension
(W x H x L)
  • 54.5 x 40.25 x 322 mm
AC Input Frequency
  • 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Platinum Level Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
