Supermicro AS -1114S-WTRT-EU 1U Rackmount WIO SuperServer (AS -1114S-WTRT-EU)

Favorite
Compara
Pretul afisat contine TVA (19%).

15.121,22 lei

Compara

Supermicro AS -1114S-WTRT-EU 1U Rackmount WIO SuperServer (AS -1114S-WTRT-EU)



Unmatched Processing Power

Powered by a single AMD EPYC™ 7003/7002 Series Processor, the A+ Server 1114S-WTRT-EU delivers exceptional computing capabilities, enabling seamless data processing and analysis. Experience lightning-fast response times, improved efficiency, and increased productivity for your critical applications.

Efficiency Meets Flexibility

With 10 hot-swap 2.5″ SATA3 drive bays, this server provides ample storage capacity for your growing data needs. Seamlessly store and access your valuable information, ensuring smooth operations and streamlined workflows. Expand your storage capacity effortlessly as your business scales.

AS -1114S-WTRT

Robust and ReliableEquipped with redundant 500W Titanium Level Power Supplies, the A+ Server 1114S-WTRT-EU ensures uninterrupted performance and minimizes the risk of downtime. Trust in its rock-solid reliability to keep your operations running smoothly, providing peace of mind for your critical applications.

Superior Connectivity and Networking

Featuring 2x 10GbE LAN ports via the Broadcom BCM57416 Controller, this server offers lightning-fast network connectivity. Seamlessly transfer data, collaborate with team members, and ensure high availability for your mission-critical applications.



  • Key Features/Applications: Database Processing and Storage, Data Center Applications, Firewall Applications
  • CPU: Single AMD EPYC™ 7003/7002 Series Processor, up to 64 Cores
  • Chassis: 1U
  • Drive: Up to 10x 2.5” Hot-Swap SATA Drive Bays. Supports up to 2x U.2 NVMe Drive Bays (Optional)
  • RAM: Up to 2TB of DDR4 ECC RDIMM/LRDIMM in 8 DIMM Slots
  • Power Supply: 500W Redundant Titanium Level Power Supplies
  • Network Ports: 2x 10GbE RJ45 LAN Ports
SKU: AS -1114S-WTRT-EU Categorii: , , , , , , , , , ,
Product SKUs
AS -1114S-WTRT
  • Standard version with PWS-504P-1R (Platinum Level)
AS -1114S-WTRT-EU
  • European version with PWS-601A-1R (Titanium Level)
Motherboard
Super H12SSW-NT
Processor/Cache
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Support CPU TDP up to 280W
Cores
  • Up to 64 Cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

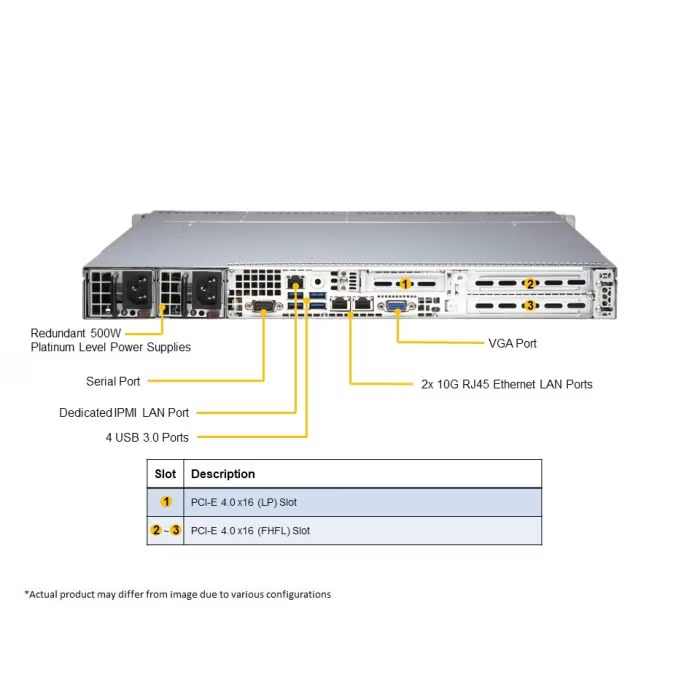

Input / Output
SATA
  • 2 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Super Doctor 5
  • Watch Dog
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116TS-R504WBP2
Dimensions and Weight
Width
  • 17.2″ (437mm)
Height
  • 1.7″ (43mm)
Depth
  • 23.5″ (597mm)
Package
  • 7.63″ (H) 23.42″ (W) 31.45″ (D)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black

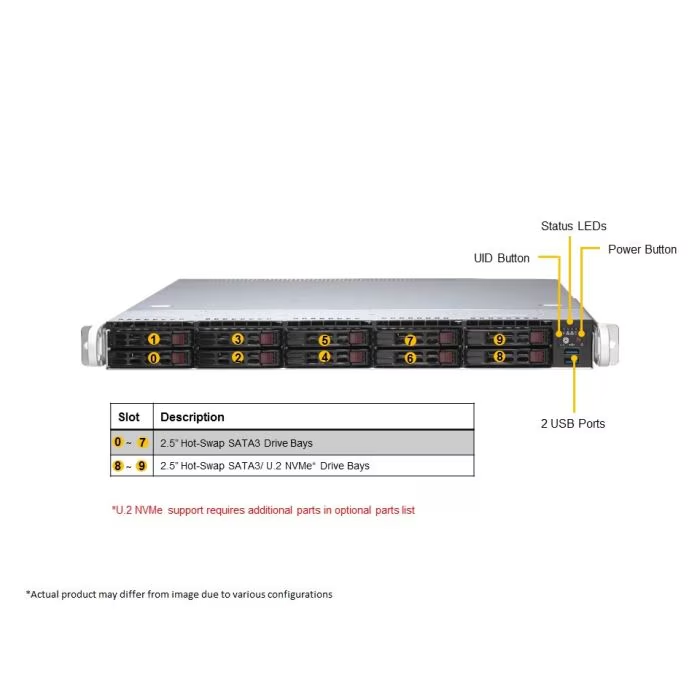

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHFL) slots
  • 1 PCI-E 4.0* x16 (LP) slot
  • 2 PCI-E / SATA 3.0 x2 NVMe M.2 slots
  • * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.
Drive Bays
Hot-swap

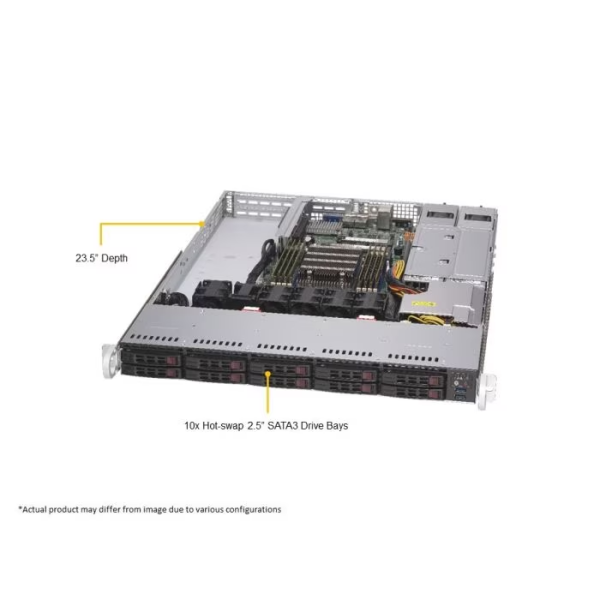

  • 10 Hot-swap 2.5″ SATA3 drive bays
  • Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
Backplane
SAS/SATA HDD Backplane
System Cooling
Fans
  • 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
Power Supply
500W Redundant Power Supplies with PMBus
Note: AS -1114S-WTRT-EU (European) SKU uses PWS-601A-1R (Titanium Level)
Total Output Power
  • 500W
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100-240Vac, 50-60Hz, 6.1-2.6A
+12V
  • Max: 42A / Min: 0.5A
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor
  • +5V: 25A
  • +3.3V: 12A
  • -12V: 0.6A
Certification Platinum Level Certified  Platinum Certified
[ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
