Supermicro AS -1115CS-TNR-EU 1U Rackmount H13 CloudDC SuperServer (AS -1115CS-TNR-EU)

Favorite
Compara
Pretul afisat contine TVA (19%).

23.856,58 lei

Compara

Supermicro AS -1115CS-TNR-EU 1U Rackmount H13 CloudDC SuperServer (AS -1115CS-TNR-EU)



Powerful and Future-Proof

The Supermicro CloudDC A+ Server AS-1115CS-TNR-EU is designed to excel in web servers, firewall applications, cloud computing, and data center environments. Powered by the single 4th Generation AMD EPYC™ 9004 Series Processor, this server delivers exceptional processing power, enabling seamless multitasking, efficient resource allocation, and high-performance computing for your critical workloads. Stay ahead of the competition with cutting-edge technology.

Compact Design, Unlimited Possibilities

Housed in a sleek 1U rackmount chassis, the AS-1115CS-TNR-EU combines space efficiency with uncompromising performance. Its compact form factor allows for easy integration into your existing infrastructure, saving valuable real estate while maximizing functionality. Experience the perfect balance of performance and space optimization.

AS -1115CS-TNR

Flexible Storage and Memory Configurations

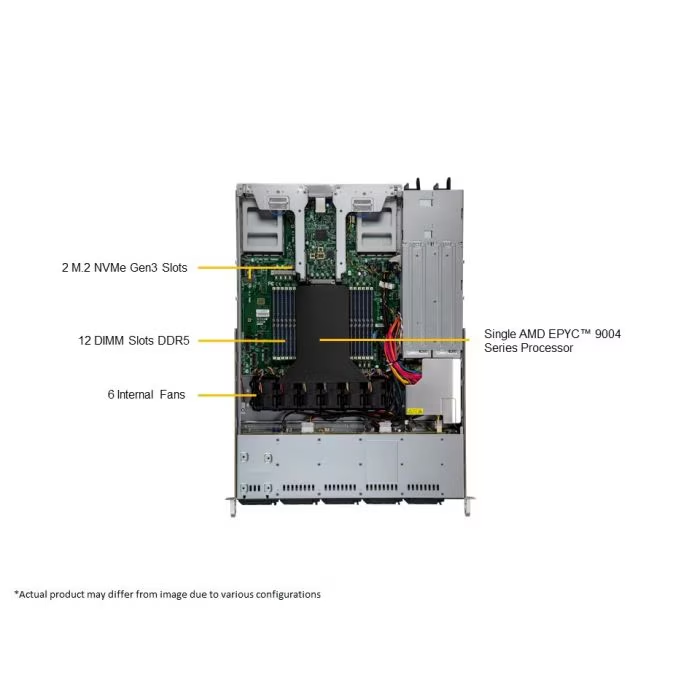

With 10 hot-swap 2.5″ hybrid NVMe/SATA/SAS drive bays, this server provides versatile storage options to suit your specific requirements. Accompanied by 12 DIMM slots supporting up to 3TB of 3DS ECC RDIMM DDR5-4800MHz memory, you can experience exceptional data processing capabilities and responsive application performance.

Reliable and Energy-Efficient

The AS-1115CS-TNR-EU ensures uninterrupted performance and reduces the risk of downtime. Experience peace of mind knowing your critical applications are powered by a reliable and energy-efficient server.

Stay Connected and Future-Ready

Featuring Dual AIOM with NCSI (OCP 3.0) for networking and a dedicated IPMI LAN, this server provides seamless connectivity, enabling high-speed data transfers, efficient collaboration, and reliable remote management.



  • Key Features/Applications: Web Server, Firewall Application, Cloud Computing, Compact Server, Data Center Optimized, Value IaaS, DNS & Gateway Servers, CDN, Edge Nodes
  • CPU: Single 4th Gen AMD EPYC™ 9004 Series Processor, up to 128 Cores
  • Chassis: 1U

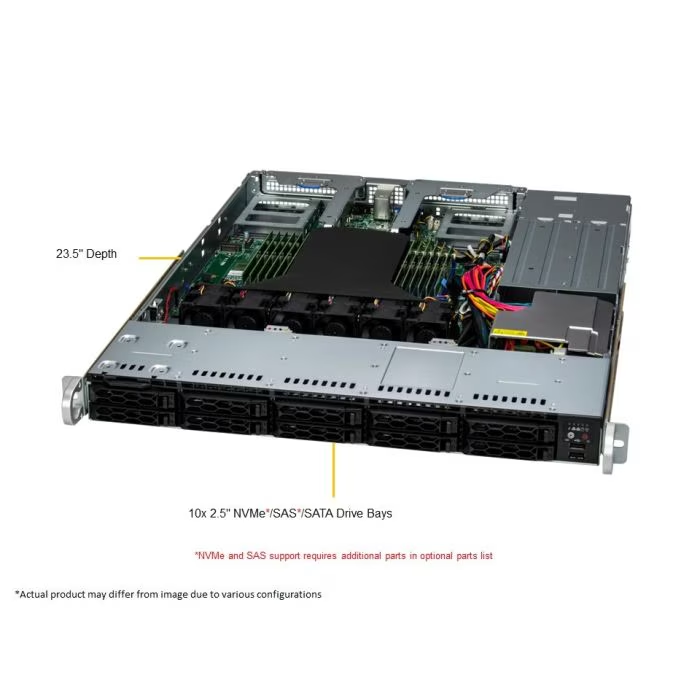

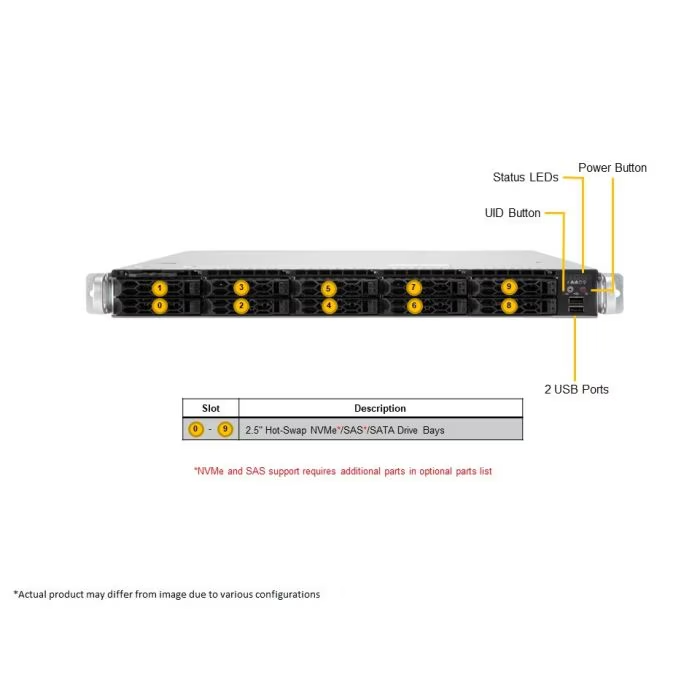

  • Drive: Up to 10x 2.5″ Hot-Swap NVMe/SATA/SAS + 2x M.2 Onboard NVMe Drive Bays (Boot)
  • RAM: Up to 3TB of DDR5 ECC RDIMM in 12 DIMM Slots
  • Network Ports: 1x RJ45 LAN Port + Flexible AIOM Options
SKU: AS -1115CS-TNR-EU Categorii: , , , , , , , , , ,
Product SKUs

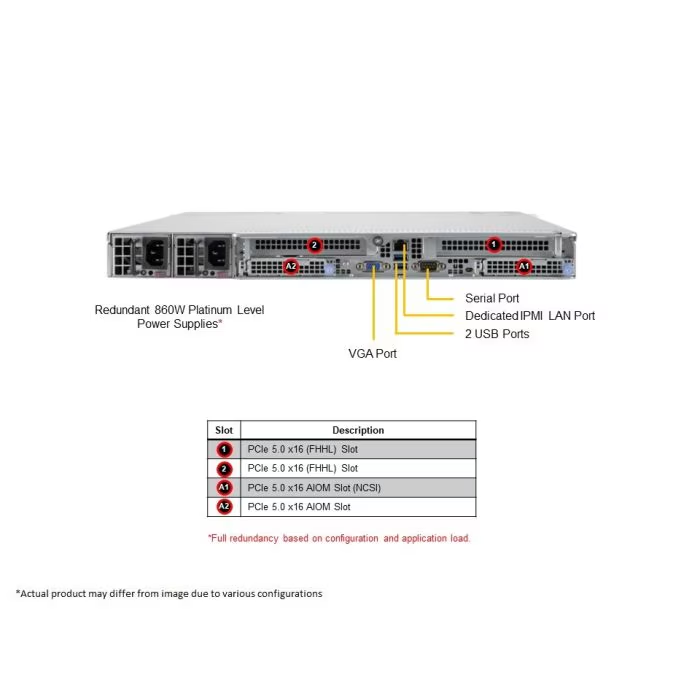

A+ Server AS -1115CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)
A+ Server AS -1115CS-TNR-EU European version with PWS-861A-1R (Titanium Level)
Processor
CPU
  • Single Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 128C/256T
Note
  • Supports up to 360W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 280W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: L4, A2
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via Slim-AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 2 USB 2.0 port(s) (front)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash ROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
