Supermicro AS -1115HS-TNR 1U Rackmount H13 Hyper Server (AS -1115HS-TNR)



Versatile Applications for Your Business Needs

The Supermicro AS -1115HS-TNR is designed to meet the demands of various applications, including virtualization, software-defined storage, AI inference, machine learning, cloud computing, and enterprise server solutions. Whether you’re running complex virtual environments or powering AI workloads, this server delivers exceptional performance and reliability.

Powerful Performance with AMD EPYC™ Processors

Supports the AMD EPYC™ 9004 Series processors, this server provides unmatched processing power for demanding workloads. Experience seamless performance and accelerated computing for your business-critical applications.

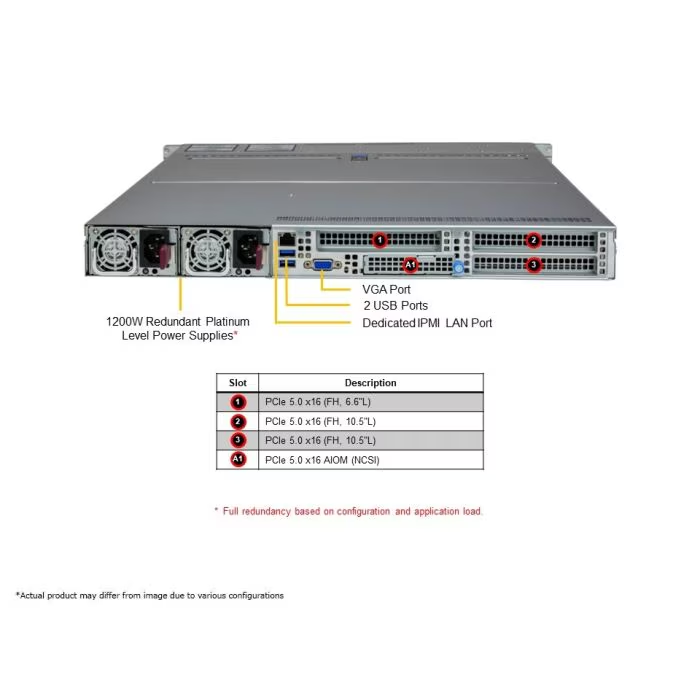

AS -1115HS-TNR Rear

Flexible Networking and Expansion Options

With flexible networking options, including 1 AIOM networking slot compatible with OCP NIC 3.0, and multiple PCIe expansion slots, you can customize the AS-1115HS-TNR to meet your specific networking and storage requirements. Expand your infrastructure effortlessly to adapt to changing business needs.

Reliable Power and Storage Solutions

Featuring redundant 800/1200W power supplies at Titanium Level, this server ensures continuous operation and minimal downtime, even under heavy workloads. With on-board NVMe M.2 slots and PCIe expansion options, you can optimize storage performance and scalability for your data-intensive applications.

Experience the ultimate in performance, reliability, and scalability with the Supermicro AS-1115HS-TNR server, tailored to meet the diverse needs of modern data centers and enterprise environments.



  • Key Features/Applications: Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
  • CPU: Single AMD EPYC™ 9004 Series Processors, up to 128 Cores
  • Chassis: 1U
  • Drive: Up to 8x 2.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 6TB of DDR5 ECC RDIMM in 24 DIMM Slots
  • GPU: Up to 1 Double-Width GPU
  • Network Ports: Flexible Networking Options
  • Power Supply: 1200W Redundant Titanium Level Power Supplies
SKU: AS -1115HS-TNR Categorii: , , , , , , , , , , ,
Product SKUs
A+ Server AS -1115HS-TNR
Processor
CPU
  • Single Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 128C/256T
Note
  • Supports up to 360W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 280W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 1 double-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 1 USB 3.0 port(s) (front)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 1U
Model
  • CSE-HS119-R1K24P2-A
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.4″ (747 mm)
Package
  • 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Gross Weight: 51 lbs (23.1 kg)
  • Net Weight: 32 lbs (14.5 kg)
Available Color
  • Black front & silver body

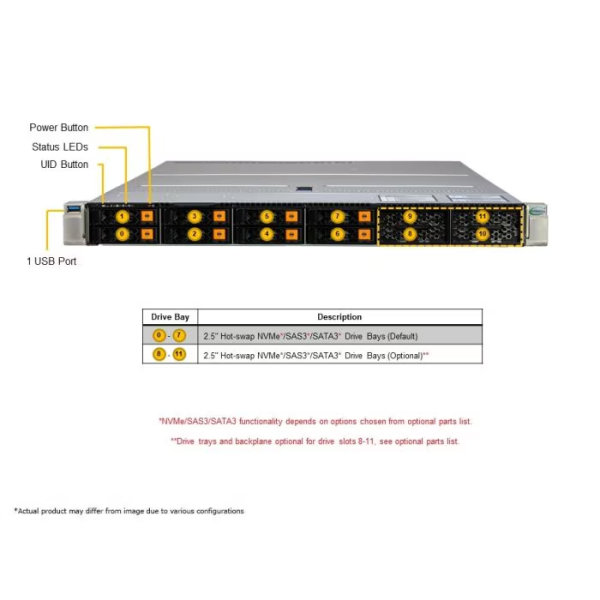

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button

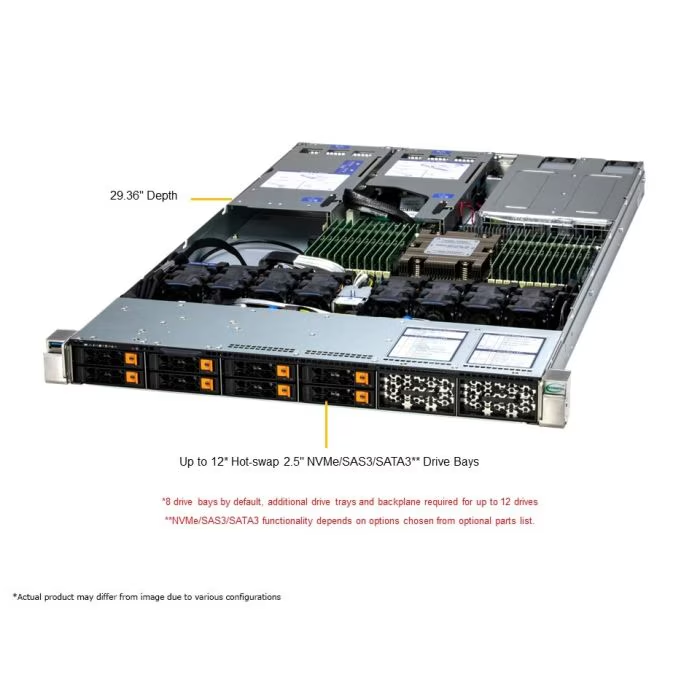

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • Option A: Total 12 bay(s)
    • 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 22110(default)/2280)
  • 1 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 22110(default)/2280)
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 1200W
Description
  • 2x 1200W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
