Supermicro AS -2014CS-TR-EU 2U Rackmount CloudDC SuperServer (AS -2014CS-TR-EU)


Pretul afisat contine TVA (19%).

18.570,10 lei

Compara

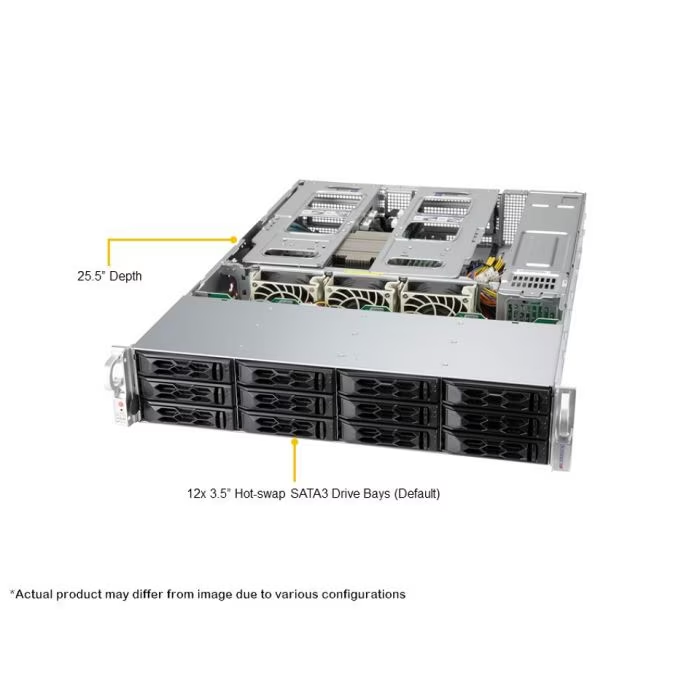

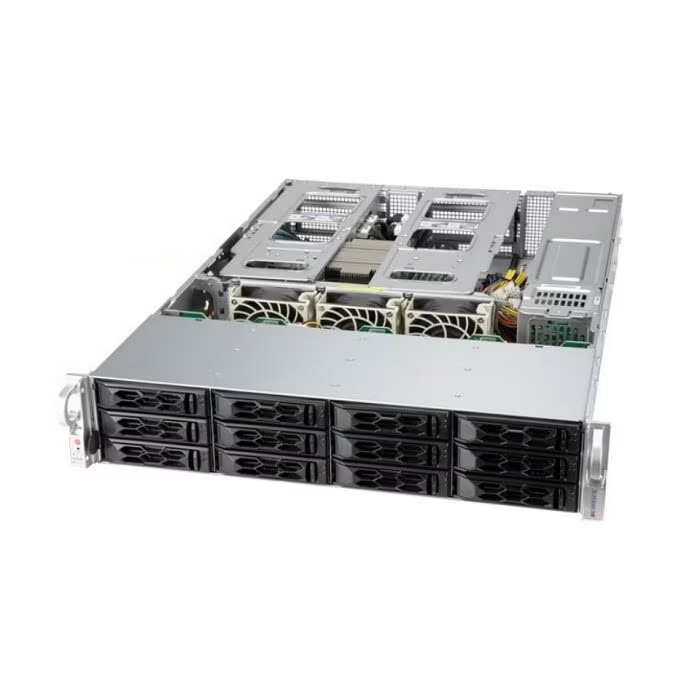

Supermicro AS -2014CS-TR-EU 2U Rackmount CloudDC SuperServer (AS -2014CS-TR-EU)



Versatile Power for Diverse Applications

Supermicro AS -2014CS-TR-EU is engineered to cater to a broad spectrum of applications, making it an ideal choice for financial services, cloud computing, network appliances, private clouds, content delivery networks (CDN), and deep learning inferencing. Its versatility positions it as a powerhouse in the evolving landscape of server demands.

Leading AMD EPYC™ Processing

Empowered by a single AMD EPYC™ 7002/7003 Series Processor, including the latest AMD EPYC™ 7003 Series with AMD 3D V-Cache™ Technology, this server ensures cutting-edge processing capabilities. With 16 DIMMs supporting up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM, it strikes a balance between performance and memory capacity.

AS -2014CS-TR-EU Top

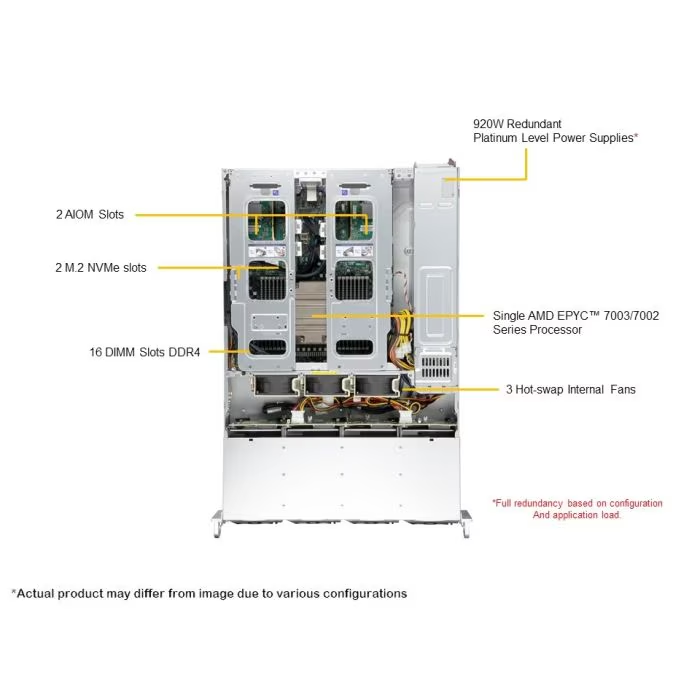

Adaptable Configuration and Hot-Swap Storage

Featuring four PCI-E 4.0 x16 slots, 2 AIOM slots for flexible networking, and 12 hot-swap 3.5″ SATA3/SAS3/NVMe drive bays with up to 4 NVMe, the AS -2014CS-TR-EU offers flexible configurations to meet diverse needs. The M.2 interface supports various form factors, enhancing adaptability. The tool-less design ensures ease of use.

Reliability and Efficiency in Redundancy

Designed for reliability, this server includes integrated IPMI 2.0 + KVM with dedicated LAN, tool-less drive trays, and tool-less brackets. With 1200W Redundant Titanium Level Power Supplies, it offers full redundancy based on configuration and application load, ensuring stability and efficiency.

The Supermicro AS -2014CS-TR-EU stands as a testament to Supermicro’s commitment to delivering servers that seamlessly blend versatility, performance, and reliability for the evolving demands of modern data centers.



  • Key Features/Applications: Financial Services, Cloud Computing, Network Appliance, Private Cloud, Content Delivery Network (CDN), Deep Learning Inferencing
  • CPU: Single AMD EPYC™ 7002/7003 Series Processor, up to 64 Cores
  • Chassis: 2U
  • Drive: Up to 12x 3.5″ Hot-Swap SATA Drive Bays
  • RAM: Up to 4TB of DDR4 ECC RDIMM/LRDIMM in 16 DIMM Slots
  • Network Ports: AIOM/OPC Flexible Networking Options
  • Power Supply: 1200W Redundant Titanium Level Power Supplies
SKU: AS -2014CS-TR-EU Categorii: , , , , , , , , ,
Product SKUs
AS -2014CS-TR
  • Standard version with PWS-920P-1R2 (Platinum Level)
AS -2014CS-TR-EU
  • European version with PWS-1K23A-1R (Titanium Level)
Motherboard
Super H12SSW-AN6
Processor/Chipset
CPU
  • Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Flexible networking provided via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2600 BMC
Input / Output
SATA
  • 16 SATA3 (6 Gbps) ports
LAN
  • Networking provided via AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
COM
  • 1 COM Port (rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256Mb SPI Flash EEPROM
Management
Software
  • Super Doctor 5
  • Watch Dog
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • 3 Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R920AWP
Dimensions and Weight
Width
  • 17.2″ (437mm)
Height
  • 3.5″ (89mm)
Depth
  • 25.5″ (648mm)
Package
  • 26.4″ (W) 11.4″ (H) 34.3″ (D)
Gross Weight
  • 59 lbs (26.76 kg)
Available Colors
  • Black

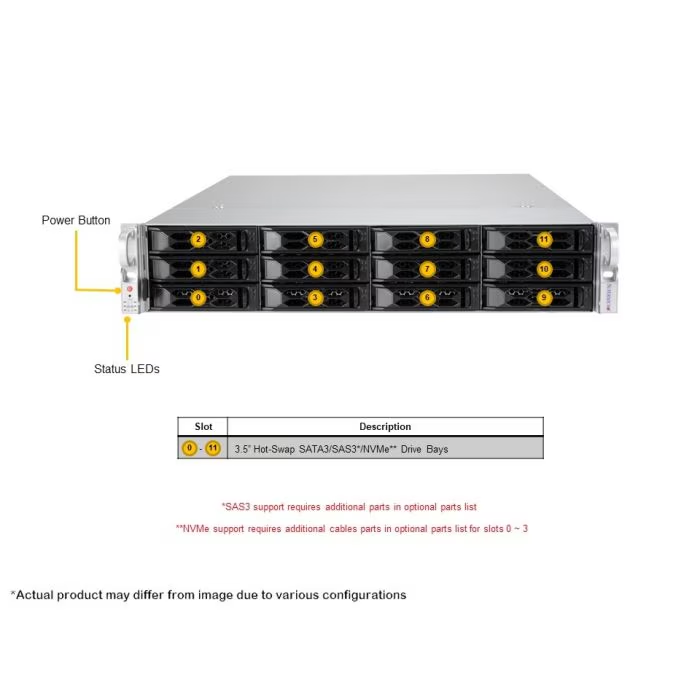

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

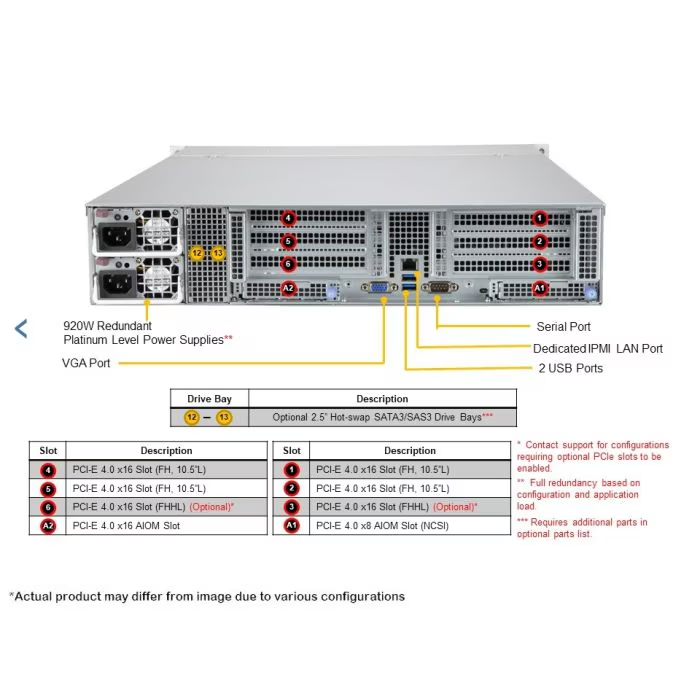

Expansion Slots
PCI-Express
  • 4 PCI-E 4.0 x16 (FH, 10.5″L) slots
  • 2 PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot)
Drive Bays
Hot-swap
  • 12 Hot-swap 3.5″ drive bays:
    • 12 SATA3 by default
    • or 8 SATA3 + 4NVMe via optional cables
    • or 12 SAS3 via via optional SAS kit
  • Optional 2x 2.5″ peripheral drive support via additional rear drive bays kits
Backplane
SAS/SATA/NVMe HDD Backplane
System Cooling
Fans
  • 3x 80x80x38mm middle cooling fans
Power Supply
1U 920W redundant power supply
Note: AS -2014CS-TR-EU (European) SKU uses PWS-1K23A-1R (Titanium Level)
Total Output Power and Input
  • 920W with Input 100 – 127Vac
  • 920W with Input 200 – 240Vac
  • 920W with Input 200 – 240Vdc
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
AC Input Frequency
  • 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)
  • Max: 75A / Min: 0A (200Vac-240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (connector)
Certification Platinum Level Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
