Supermicro AS -2015CS-TNR 2U Rackmount H13 CloudDC SuperServer (AS -2015CS-TNR)



CloudDC (Cloud Data Center) is the newest product in the Supermicro H13 family. The CloudDC product family is optimized for data centers and cloud solutions. CloudDC provides customers with the flexibility to fine-tune their configuration to get the best value.

AS -2015CS-TNR supports a single 4th generation AMD EPYC™ 9004 Series processor, 3TB DDR5-4800MHz of memory in 12 DIMM slots, and 4 PCI-E slots including 4 PCI-E 5.0 x16 (2 x FHHL and 2 x FHFL). In addition, this system has 2 flexible AIOM x16 ports so you can easily swap in 1GbE, 10GbE, 25GbE, or 100GbE AIOM cards to support your networking requirements.

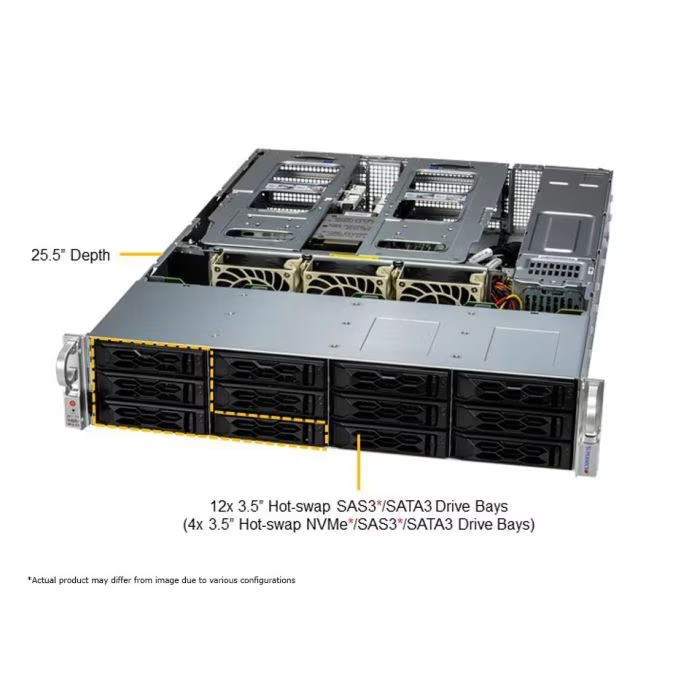

This system includes 12 hot-swappable 3.5” hybrid (NVMe, SATA, SAS) drive bays. Whether you want a system with 10 blazing fast NVMe drives or just one SATA drive, this system is capable of handling your storage needs. If you want to change or add any PCI-E or AIOM cards, the two brackets that holds the 2 PCI-E cards are all tool-less so you can easily swap out cards at ease.

If you are in the market for a server that is extremely flexible, easy to use, and future-proof, CloudDC is the server for you.



  • Key Features/Applications: Web Server, Firewall Application, Cloud Computing, Compact Server, CDN, Edge Nodes, Data Center Optimized, Value laaS, DNS & Gateway Server, and Firewall Application
  • CPU: Single 4th Gen AMD EPYC™ 9004 Series Processor, up to 128 Cores
  • Chassis: 2U
  • Drive: Up to 12x 3.5″ Hot-Swap NVMe/SATA/SAS + 2x M.2 NVMe Drive Bays
  • RAM: Up to 3TB of DDR5 ECC RDIMM in 12 DIMM Slots
  • Network Ports: 1x RJ45 LAN Ports + Flexible AIOM Options
SKU: AS -2015CS-TNR Categorii: , , , , , , , , , ,
Product SKUs
A+ Server AS -2015CS-TNR
Processor
CPU
  • Single Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 128C/256T
Note
  • Supports up to 360W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 4 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: L40, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A40, A30, A16, A2, A100
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via Slim-AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash ROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 33 lbs (15 kg)
Available Color
  • Black front & sliver body
Front Panel
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Buttons
  • Power On/Off
  • Universal Information (UID)
Drive Bays / Storage

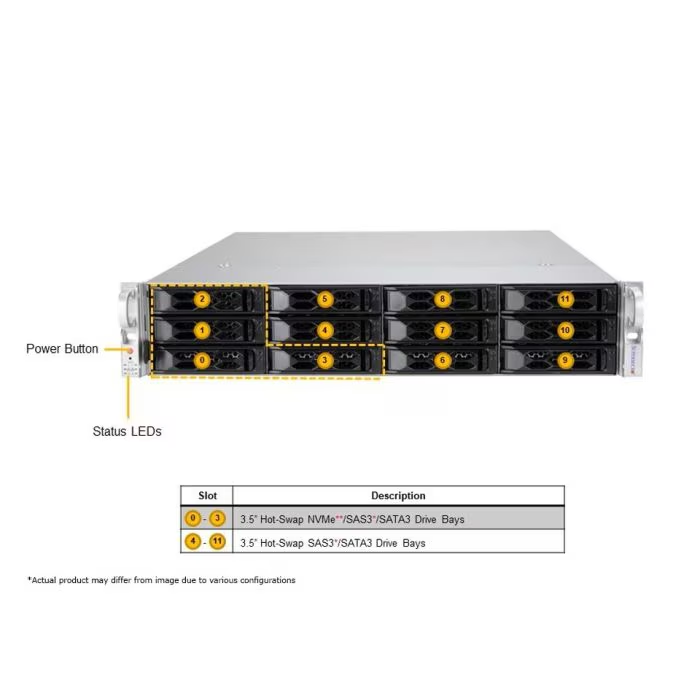

Drive Bays Configuration
  • Default: Total 12 bay(s)
    • 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bay(s)
    • 8 front hot-swap 3.5″ SAS*/SATA drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)
Power Supply
QtyWithPsu
  • 1x 1200W
Description
  • 1x 1200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
