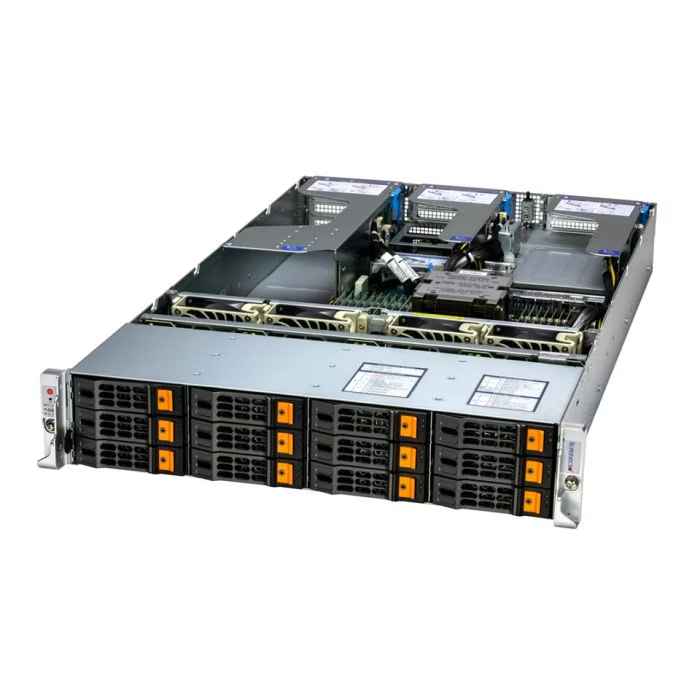

Supermicro AS -2015HS-TNR 2U Rackmount H13 Hyper Server



Adaptable Solutions for Your Business Requirements

The Supermicro AS-2015HS-TNR is a versatile server designed to meet the demands of modern data centers and enterprise environments. Whether you’re deploying virtualization solutions, software-defined storage, AI inference, cloud computing, or enterprise server applications, this server delivers exceptional performance and reliability.

Unmatched Performance with AMD EPYC™ Processors

Equipped with 4th Generation AMD EPYC™ 9004 Series processors, the AS-2015HS-TNR provides unparalleled processing power for demanding workloads. Experience accelerated computing and seamless performance for your mission-critical applications.

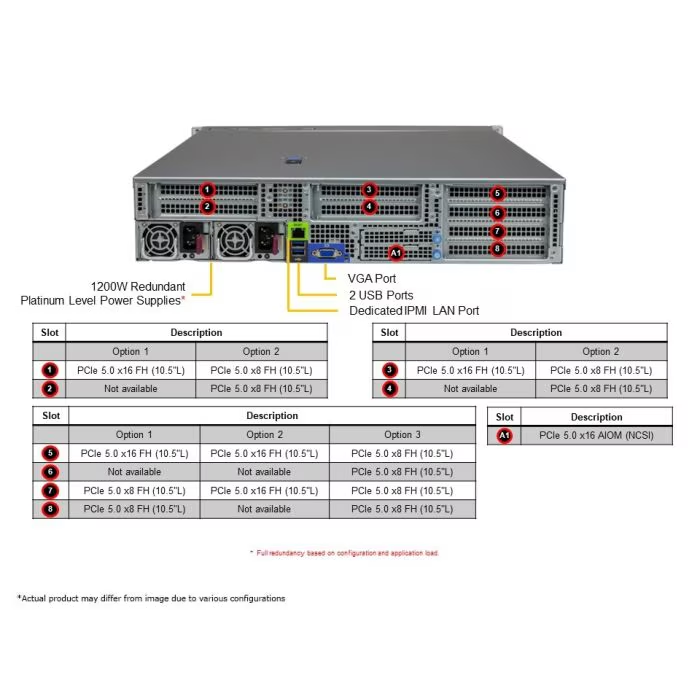

AS -2015HS-TNR Rear

Flexible Configuration Options

With a wide range of configuration options, including multiple PCIe 5.0 x16 and x8 slots, you can customize the AS-2015HS-TNR to meet your specific networking and expansion requirements. Choose the configuration that best suits your workload and scalability needs, ensuring optimal performance and efficiency.

Reliable Power and Storage Solutions

Featuring redundant 1200W power supplies at Titanium Level, this server ensures continuous operation and minimal downtime, even under heavy workloads. Additionally, with on-board NVMe M.2 slots and PCIe expansion options, you can optimize storage performance and scalability for your data-intensive applications.

Experience the ultimate in performance, reliability, and scalability with the Supermicro AS-2015HS-TNR server, tailored to meet the diverse needs of modern data centers and enterprise environments.



  • Key Features/Applications: Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
  • CPU: Single AMD EPYC™ 9004 Series Processors, up to 128 Cores
  • Chassis: 2U
  • Drive: Up to 12x 3.5″/2.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 6TB of DDR5 ECC RDIMM in 24 DIMM Slots
  • GPU: Up to 4 Double-Width GPUs
  • Network Ports: Flexible Networking Options
  • Power Supply: 1200W Redundant Titanium Level Power Supplies
SKU: AS -2015HS-TNR Categorii: , , , , , , , , , , ,
Product SKUs
A+ Server AS -2015HS-TNR
Processor
CPU
  • Single Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 128C/256T
Note
  • Supports up to 400W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 4 double-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX A6000, RTX 6000 Ada Generation, L40S
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe

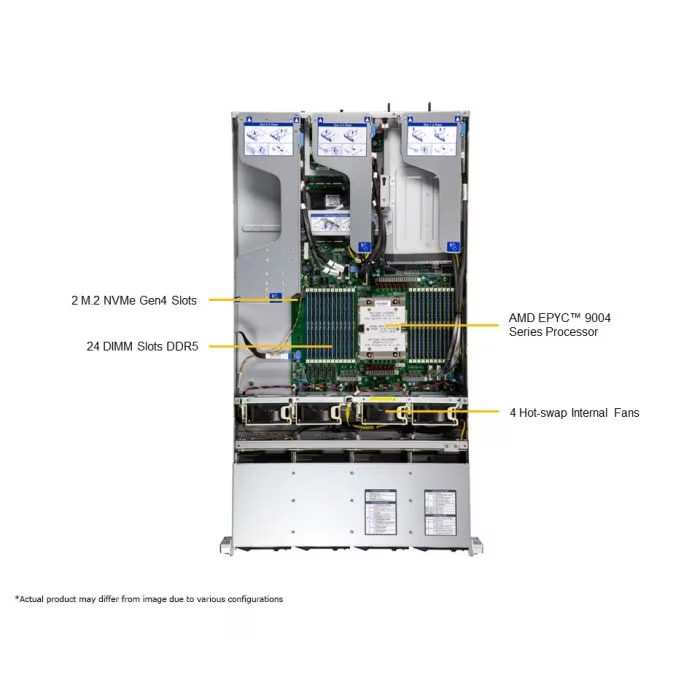

System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 2U
Model
  • CSE-HS829-R1K24P-A
Dimensions and Weight
Height
  • 3.5″ (88.9 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 31.6″ (803 mm)
Package
  • 10.4″ (H) x 23.8″ (W) x 43.6″ (D)
Weight
  • Gross Weight: 69 lbs (31.3 kg)
  • Net Weight: 39 lbs (17.7 kg)
Available Color
  • Black front & silver body

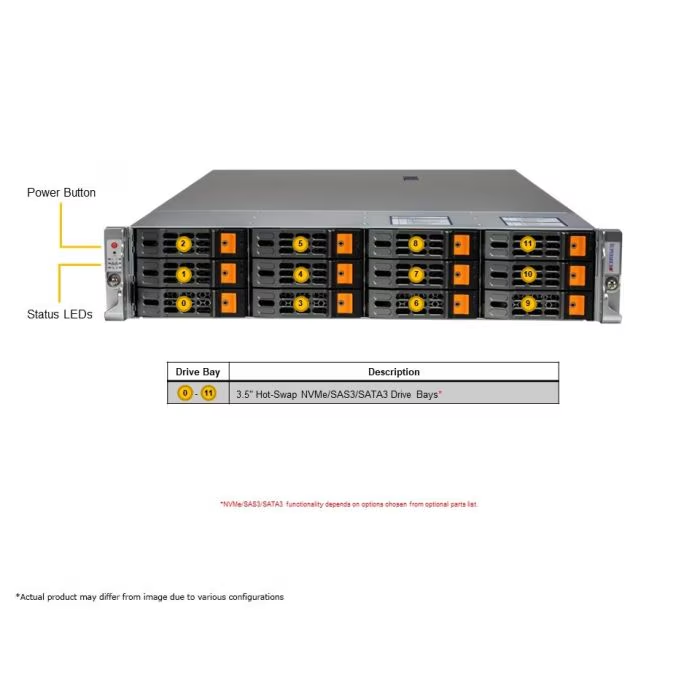

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button

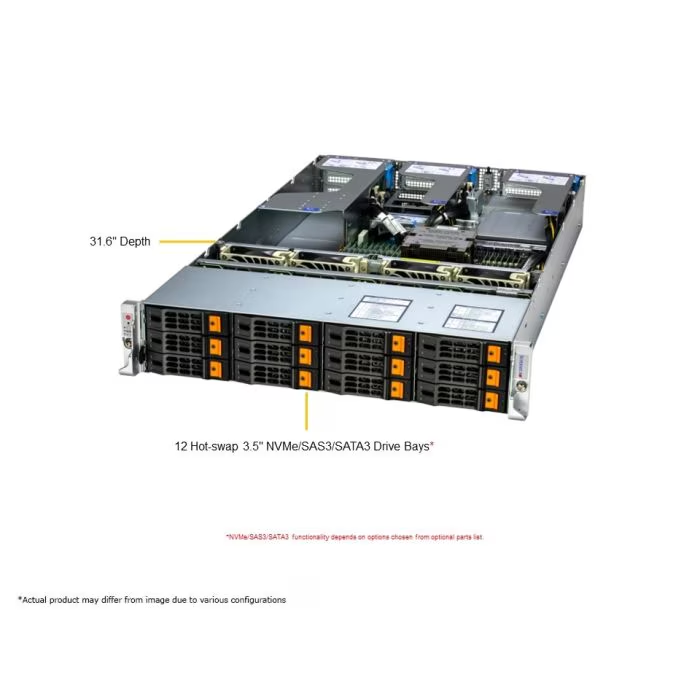

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bay(s)
    • 12 front hot-swap 3.5″/2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 22110(default)/2280)
  • 1 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 22110(default)/2280)
System Cooling
Fans
  • 4 counter-rotating 80x80x38mm Fan(s)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
