Supermicro AS -3015MR-H8TNR 3U Rackmount H13 Microcloud SuperServer (AS -3015MR-H8TNR)



The MicroCloud modular architecture provides high density, serviceability and cost effectiveness required for today’s demanding hyperscale deployments. They are conveniently integrated into a compact 3U chassis that is less than 30 inches deep, saving over 76% of rack space when compared to traditional 1U servers.

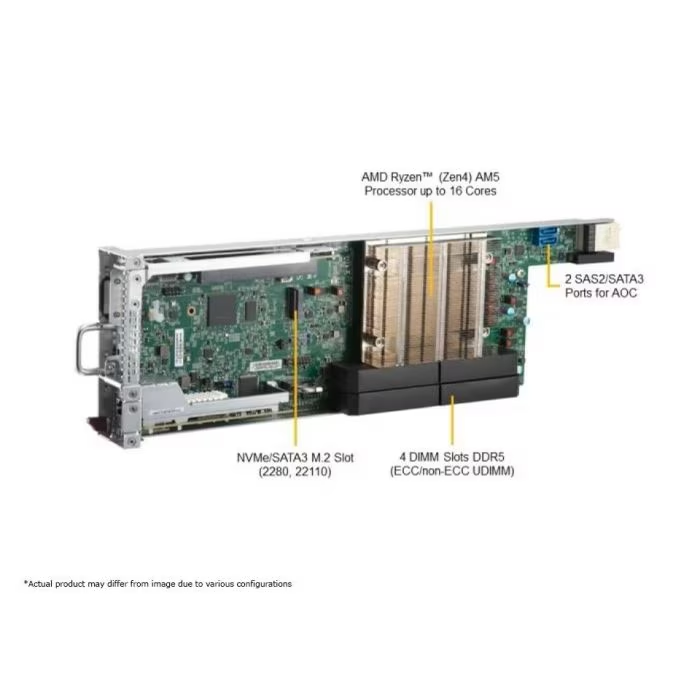

AS -3015MR-H8TNR each node supports Single AMD Ryzen™ Zen4 7000 series Processor, up to 128GB DDR5 4800MHz memory in 4 DIMM slots, and up to 1 PCI-E x16 low-profile expansion slot with flexible on-board Micro-LP networking options.

Each Node includes 2 x 3.5″ hot-swap NVMe/SAS/SATA drive bays per node and 1 M.2 NVMe support . Whether you want a system with 12 blazing fast drives or just one SATA drive, this system is able to handle your storage needs. In addition, this system supports 2 PCI-E 5.0 slot per node, 1 by PCI-E x16 low profile and 1 by x8 mini low profile. With the PCI-E x16 slot, you can either enable a GPU card or a high performance 100GbE network card. As for the PCI-E x8 slot, you can support the basic network cards up to 25GbE.

If you are in the market for a server high density and servicability, this Ryzen MicroCloud system is for you.



  • Key Features/Applications: Cloud Computing, Web/Collocation Services, Web Cache, CDN, Video Streaming, Social Networking, Downloads, Corporate – WINS, DNS, Print, Login
  • CPU: Single AMD Ryzen™ Zen4 7000 Series Processor, up to 16 Cores

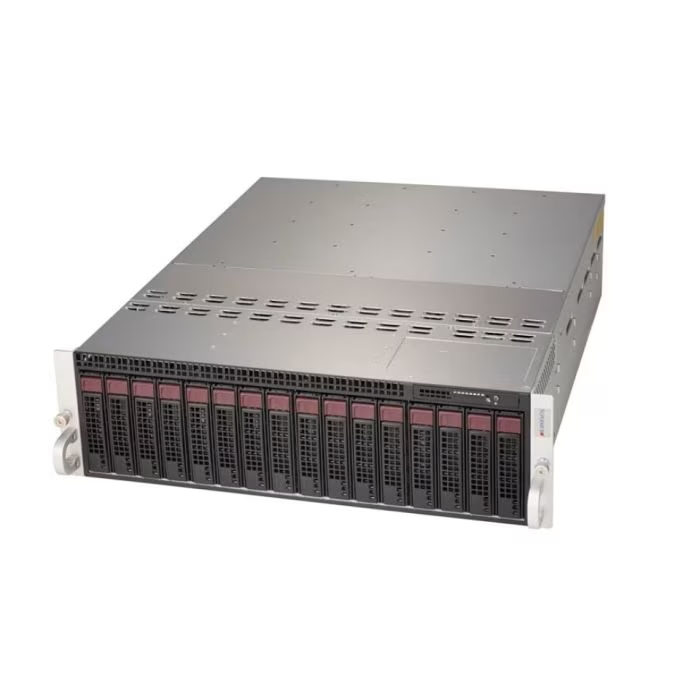

  • Chassis: 3U / 8 Nodes

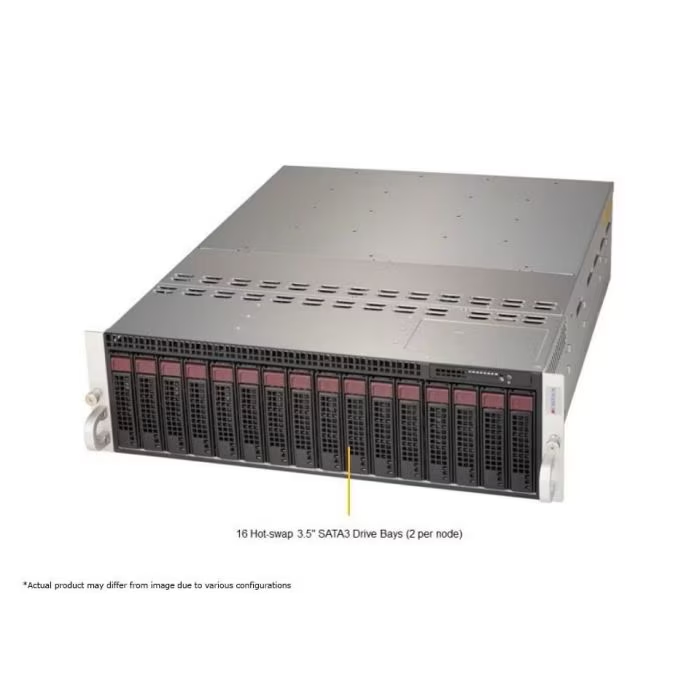

  • Drive: Up to 16x 3.5″/2.5″ Hot-Swap NVMe/SAS/SATA Drive Bays (2 per node)
  • RAM: Up to 128GB of DDR5 UDIMM in 4 DIMM Slots
  • Network Ports: Available in 1GbE, 10GbE, 25GbE, and 100GbE via Add-on Card

* Complete systems only with all 8 nodes populated.

SKU: AS -3015MR-H8TNR Categorii: , , , , , , , , ,
A+ Server AS -3015MR-H8TNR
Processor (per Node)
CPU
  • Single Socket AM5 (LGA-1718)
  • AMD EPYC™ 4004 Series Processor
Core Count
  • Up to 16C/32T; Up to 16MB Cache
Note
  • Supports 65W – 170W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.
GPU (per Node)
Max GPU Count
  • Up to 1 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T4, L4, A2
System Memory (per Node)
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 192GB 5200MT/s non-ECC DDR5 UDIMM
On-Board Devices (per Node)
NVMe
  • NVMe; (Native)
Chipset
  • AMD Knoll – Integrated I/O Controller Hub
Network Connectivity
  • No NIC option supported
Input / Output (per Node)
USB
  • 2 USB 2.0 port(s)
  • 1 Type-C port(s) (front)
Video
  • 1 port(s)
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • Power-on mode for AC power recovery
  • ACPI 6.0 Power Management
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Fan speed control, Dual Cooling Zone
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-938NH-R2K20BP2
Dimensions and Weight
Height
  • 5.21″ (132 mm)
Width
  • 17.26″ (438 mm)
Depth
  • 23.2″ (589 mm)
Package
  • 11.65″ (H) x 26.26″ (W) x 34″ (D)
Weight
  • Gross Weight: 88 lbs (39.92 kg)
  • Net Weight: 62.2 lbs (28.21 kg)
Available Color
  • N/A

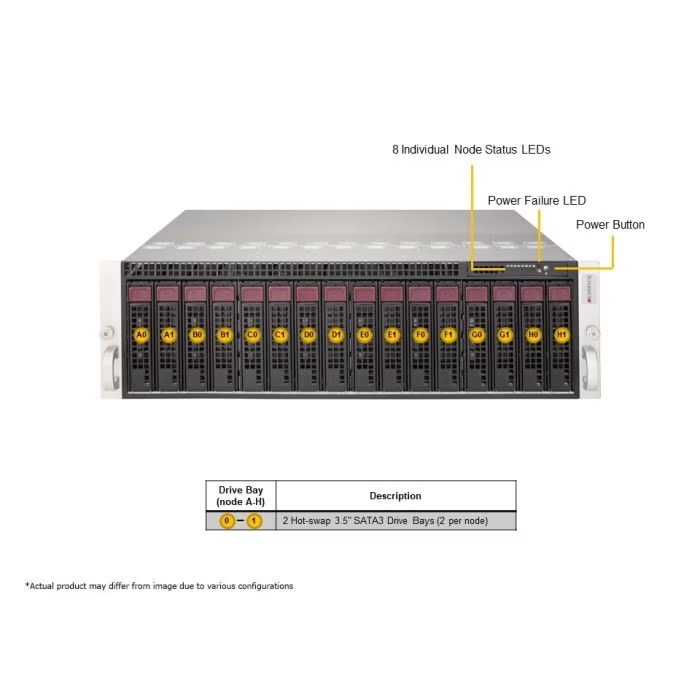

Front Panel
LED
  • 8 Individual Node Status Indicators
  • Power Failure
Buttons
  • Power On/Off
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 2 bay(s)
    • 2 front hot-swap 3.5″ NVMe/SAS/SATA drive bay(s)
M.2
  • 1 M.2 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
QtyWithPsu
  • 1x 2200W
Description

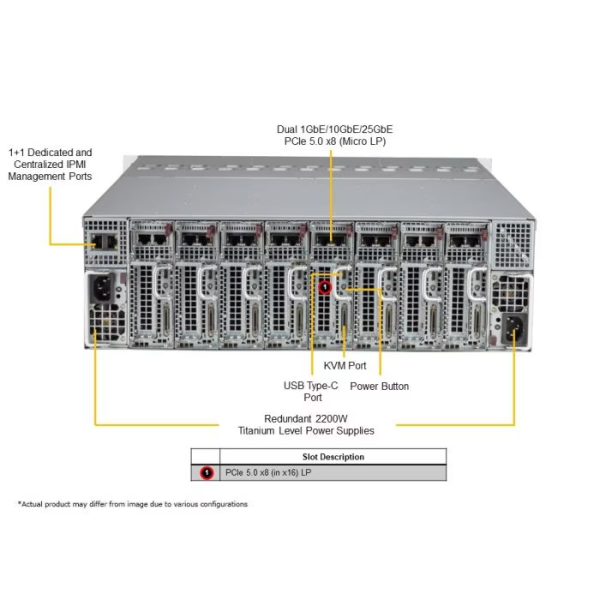

  • 1x 2200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
    1800W: 200-220Vac / 50-60Hz
    2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
    1980W: 220-230Vac / 50-60Hz
    2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
    2090W: 230-240Vac / 50-60Hz
    2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
    Max: 150A / Min: 0A (200Vac-220Vac)
    Max: 165A / Min: 0A (220Vac-230Vac)
    Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
    Max: 174.17A / Min: 0A (230Vac-240Vac)
    Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
