Supermicro SYS-110P-WTR-EU 1U Rackmount WIO SuperServer



Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

The Supermicro SYS-110P-WTR-EU WIO SuperServer® supports Intel® Xeon® Scalable Processors (up to 36 cores) and 3TB ECC DDR4-2933MHz RDIMM/LRDIMM memory in 8 DIMM slots. The SYS-110P-WTR-EU includes 10 hot-swappable 2.5” SATA drive bays which makes changing hard drives easy without needing to open up the server. In addition, this WIO supports up to 2 SuperDOM with built-in power which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs). It can also be utilized as an embedded system storage element (to be deployed into very harsh environments where mechanical hard disk drives would fail or in a thin client due to its small size and power requirements).

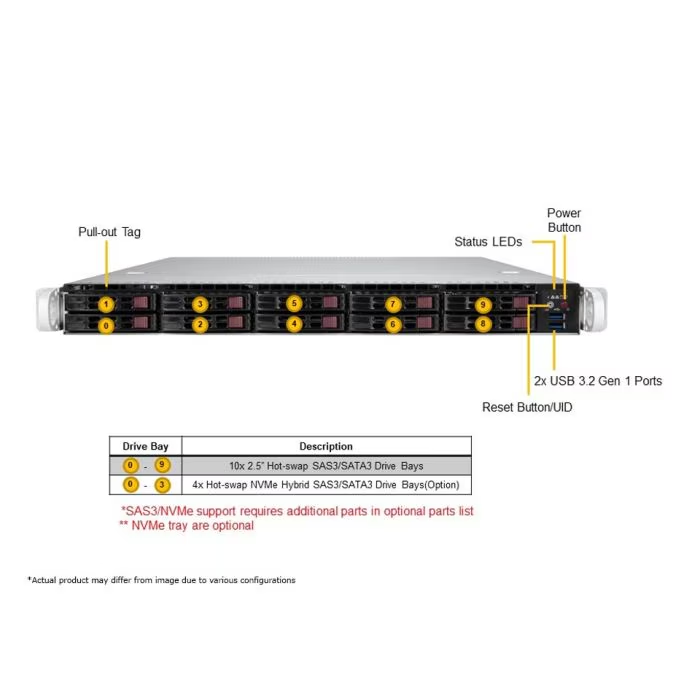

SYS-110P-WTR Front View

The 1U UP WIO server supports up to 3 add-on cards (via included riser card) and LAN that supports up to dual 10GBase-T with Intel® Ethernet Controller X550 ports. Supermicro WIO SuperServers are optimized for General Purpose, ERP/MRP, and Network and Security Appliance



  • Key Features/Applications: Virtualization, Cloud Computing, Enterprise Server, Data Center Optimized, Database Processing and Storage
  • CPU: Single 3rd Gen Intel® Xeon® Scalable Processor, up to 40 Cores
  • Chassis: 1U

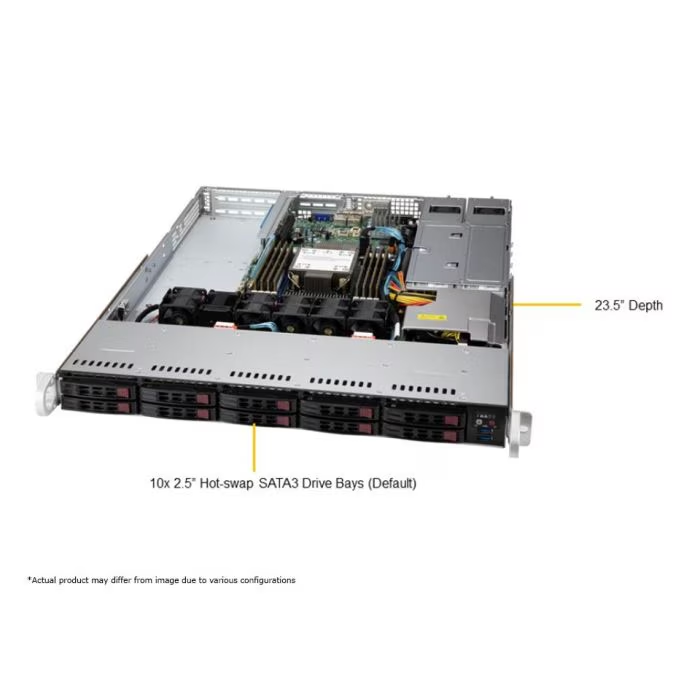

  • Drive: Up to 10x 2.5″ SATA + 1x M.2 Onboard NVMe/SATA Drive Bays
  • RAM: Up to 3TB of DDR4 ECC RDIMM/LRDIMM in 8 DIMM Slots
  • Network Ports: 2x 10GbE RJ45 LAN ports





SKU: SYS-110P-WTR-EU Categorii: , , , , , , , , ,
Product SKUs
SuperServer SYS-110P-WTR Standard version with PWS-706P-1R (Platinum Level)
SuperServer SYS-110P-WTR-EU European version with PWS-861A-1R (Titanium Level)

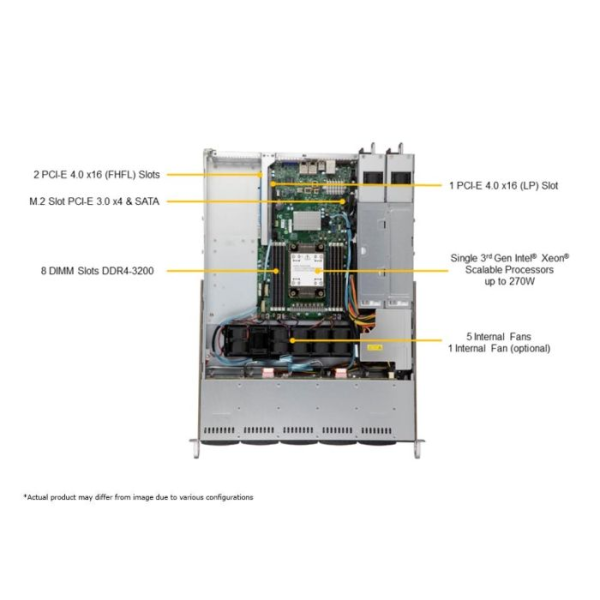

Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T400, T1000, A2
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550

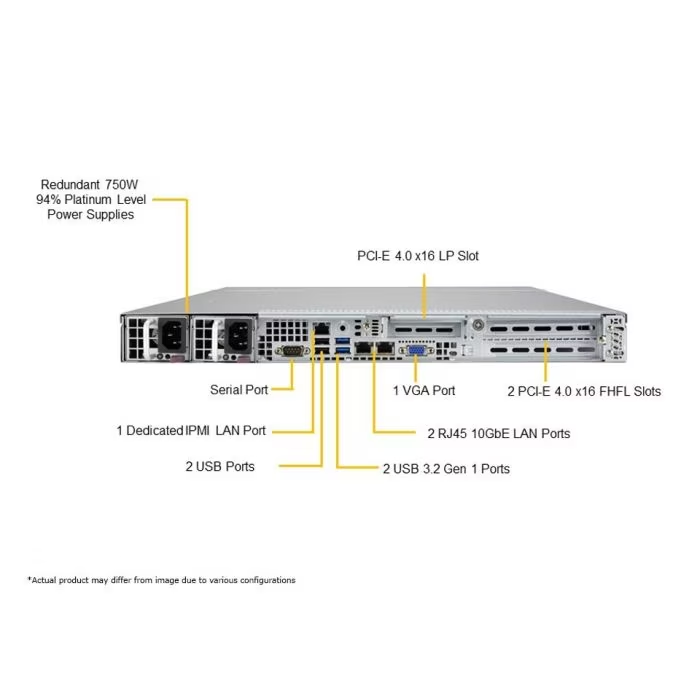

Input / Output
LAN
  • 2 RJ45 10 GbE LAN port(s)
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 port(s) (header)
  • 2 USB 3.2 Gen1 Type-A port(s) (rear)
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen1 Type-A port(s) (front)
  • 1 USB 3.2 Gen1 Type-A port(s)
Video
  • 1 VGA 2 port(s)
Serial
  • 1 COM port(s) (Rear)
  • 1 COM port(s) (Header)
DOM
  • 2 SuperDOM (Disk on Module) port(s) with built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116TS-R706WBP4
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 23.5″ (597 mm)
Package
  • 8″ (H) x 24″ (W) x 32″ (D)
Weight
  • Gross Weight: 38 lbs (17.24 kg)
  • Net Weight: 25 lbs (11.34 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bay(s)
    • 6 front hot-swap 2.5″ SAS*/SATA drive bay(s)
    • 4 front hot-swap 2.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 1 AOC cooling Fan(s) (optional)
  • 5 counter-rotation PWM 40x40x56mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 750W
Description
  • 2x 750W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
  • 54.5 x 40.25 x 320 mm
AC Input
  • 700W: 100-140Vac / 50-60Hz
    750W: 200-240Vac / 50-60Hz
+12V
  • Max: 58A / Min: 0.5A (100Vac-140Vac)
    Max: 62A / Min: 0.5A (200Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Platinum Level Certified94%+  Platinum Level[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
