Supermicro SYS-111E-WR 1U Rackmount X13 WIO SuperServer (SYS-111E-WR)



Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

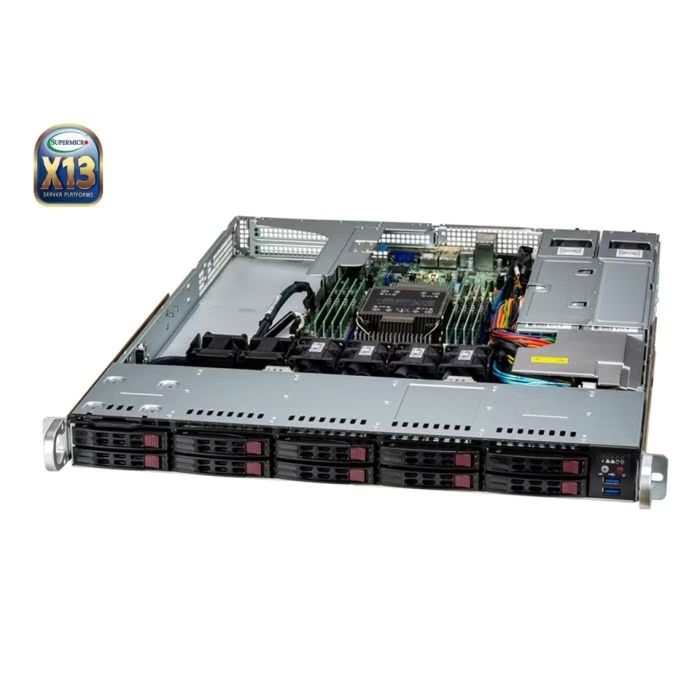

The Supermicro SYS-111E-WR WIO SuperServer® supports 4th Gen Intel® Xeon® Scalable Processors (up to 52 cores) and 2TB ECC DDR5-4800MT/s RDIMM memory in 8 DIMM slots. The SYS-111E-WR includes 10 hot-swappable 2.5” SATA drive bays which makes changing hard drives easy without needing to open up the server. New in this generation, all 10 drive bays can be Gen5 NVMe/SAS/SATA hybrid capable, which is ideal for all flash storage and virtual Content Delivery Network (vCDN).



SYS-111E-WR-Front

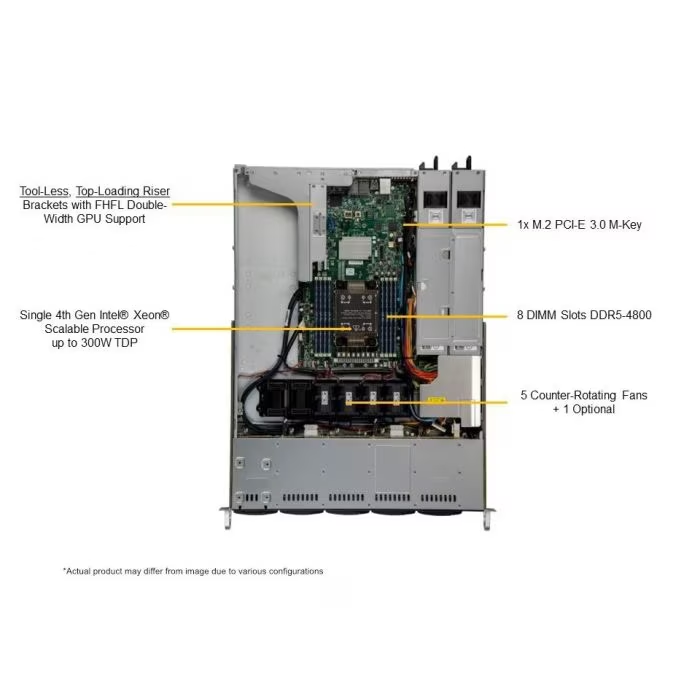

Unlock new potential with top loading expansion slot. This is a brand new tool-less design for easy serviceability. And it enables a double-width GPU to be finally installed, starting this generation. The server supports up to 3 PCI-E 5.0 add-on cards (via included riser card) and has onboard dual 1G Base-T LAN ports. To power the entire system, there are redundant 860W Platinum Level power supplies with 94% efficiency rating.

SYS-111E-WR server is optimized for data center, entry GPU, cloud computing, database/storage and virtualization applications.

  • Key Features/Applications: Virtualization, Cloud Computing, Data Center Optimized, Database/Storage, Entry GPU server
  • CPU: Single 4th Gen Intel® Xeon® Scalable Processor, up to 52 Cores
  • Chassis: 1U
  • Drive: Up to 10x 2.5″ Hot-Swap NVMe/SATA/SAS + 1x M.2 NVMe Drive Bays
  • RAM: Up to 2TB of DDR5 ECC RDIMM in 8 DIMM Slots
  • Network Ports: 2x 1GbE RJ45 LAN Ports





SKU: SYS-111E-WR Categorii: , , , , , , , , , , ,
Product SKUs
SuperServer SYS-111E-WR
Processor
CPU
  • Single Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 52C/104T; Up to 300MB Cache
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 2 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T400, L4, A2, A10
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset
  • Intel® C741
Network Connectivity
  • 2 RJ45 1GbE with Intel® I210

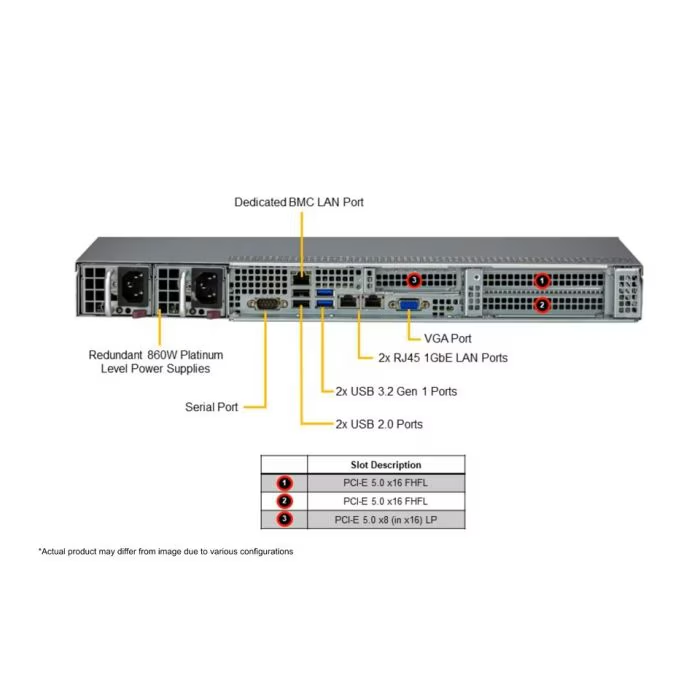

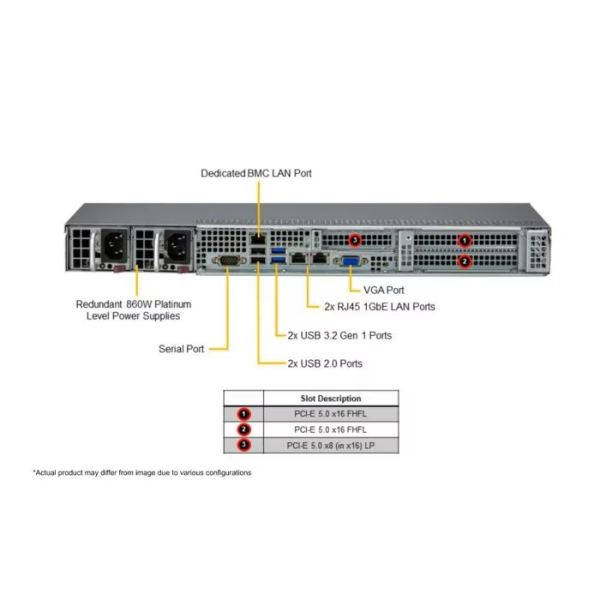

Input / Output
LAN
  • 2 RJ45 1 GbE LAN port(s)
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
USB
  • 2 USB 3.2 Gen1 Type-A port(s) (rear)
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen1 Type-A port(s) (front)
  • 1 USB 2.0 Type-A port(s) (Header)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
  • 1 COM port(s) (Header)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
  • CSE-116BTS-R000WNP
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 23.5″ (597 mm)
Package
  • 7.75″ (H) x 23.5″ (W) x 31.5″ (D)
Weight
  • Gross Weight: 33.5 lbs (15.2 kg)
  • Net Weight: 21 lbs (9.53 kg)
Available Color
  • Black

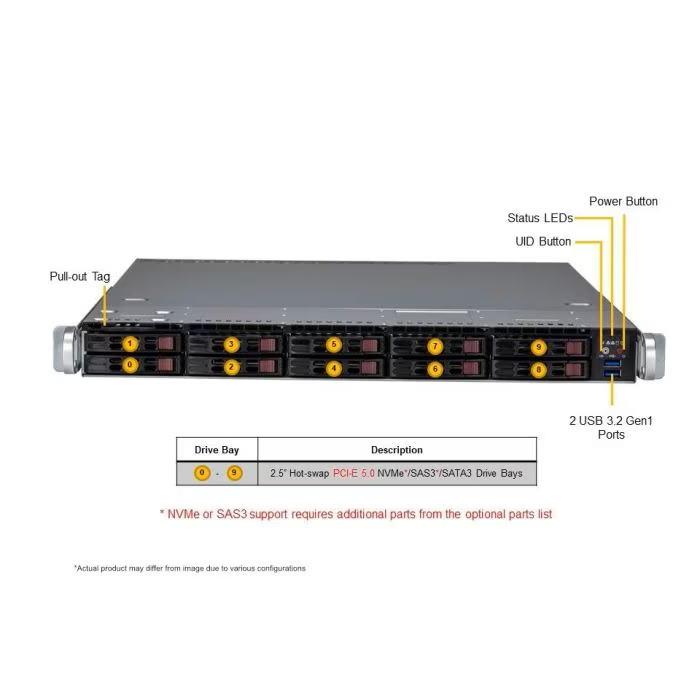

Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • Unit Identification (UID) button

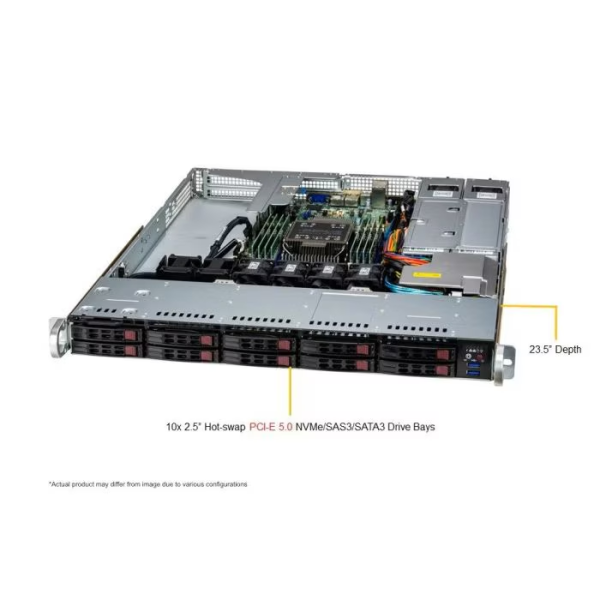

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bay(s)
    • 10 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 1 AOC cooling Fan(s) (optional)
  • 5 middle cooling PWM 40x40x56mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 860W
Description
  • 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    860W: 240Vdc / 50-60Hz
+12V
  • Max: 66.67A / Min: 0A (100Vac-127Vac)
    Max: 71.67A / Min: 0A (200Vac-240Vac)
    Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
