Supermicro SYS-5019A-FTN4 1U Rackmount IOT System (SYS-5019A-FTN4)


Pretul afisat contine TVA (19%).

6.322,26 lei

Compara

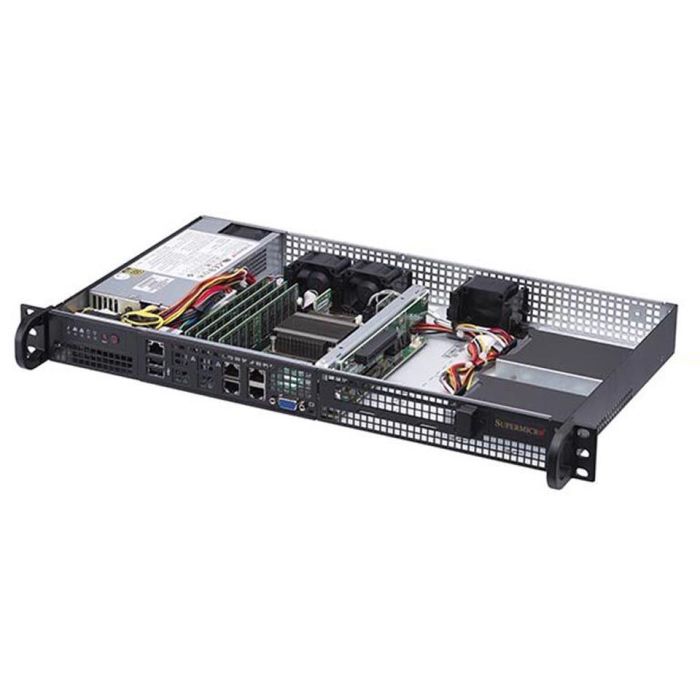

Supermicro SYS-5019A-FTN4 1U Rackmount IOT System



The SYS-5019A-FTN4 is a 1U mini embedded server optimized for applications like network security appliance, edge computing server, and virtualization server. This particular embedded server has front I/O network options for you to use the onboard 4 1GbE lan with options of adding an additional AOC to enable more network ports. To cool down this 1U server includes 2 40mm cooling fan with an option of adding one more. This compact 1U mini server measures in at only 9.8″ (D) x 17.2″ (W) x 1.7″ (H) weighing in at slightly over 12lbs.



SYS-5019A-FTN4 includes a embedded Intel® Atom® 8-core processor C3758 supporting up to 256GB ECC RDIMM DDR4 memory. Despite its size, this server has an option to enable either 1 3.5″ internal drive bay or 4 2.5″ internal drive bays. Lastly, this system supports 1 PCI-E 3.0 x4 slot, 1 VGA port, 2 USB 2.0 ports, and 1 RJ45 dedicated IPMI LAN port.

The SYS-5019A-FTN4 dual-core system is perfect for those looking for an application optimized, cost-effective, and space-constrained system.

  • Key Features/Applications: Network Security Appliance, Edge Computing Server, Virtualization Server
  • CPU: Single Intel® Atom® C3758 Processor, up to 8 Cores
  • Chassis: 1U
  • Drive: Up to 1x 3.5″ or 4x 2.5″ SATA Drive Bays
  • RAM: Up to 256GB of DDR4 ECC RDIMM in 4 DIMM Slots
  • Network Ports: 4x 1GbE RJ45 LAN Ports
SKU: SYS-5019A-FTN4 Categorii: , , , , , , ,
Product SKUs
SYS-5019A-FTN4
  • SuperServer 5019A-FTN4 (Black)
Motherboard
Super A2SDi-8C-HLN4F
Processor
CPU
  • Intel® Atom® processor C3758
  • FCBGA 1310 supported
  • CPU TDP support 25W
System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 256GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
    (using ECC memory)
On-Board Devices
SATA
  • SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers
  • Quad Gigabit Ethernet LAN via Intel® C3000 SoC
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • BMC integrated ASPEED AST2400
Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (rear)
Serial Port
  • 1 COM port (header)
DOM
  • 1 SATA DOM (Disk on Module) power connector
VGA
  • 1 VGA Port
Others
  • TPM header
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-505-203B
Dimensions and Weight
Height
  • 1.7″ (43mm)
Width
  • 17.2″ (437mm)

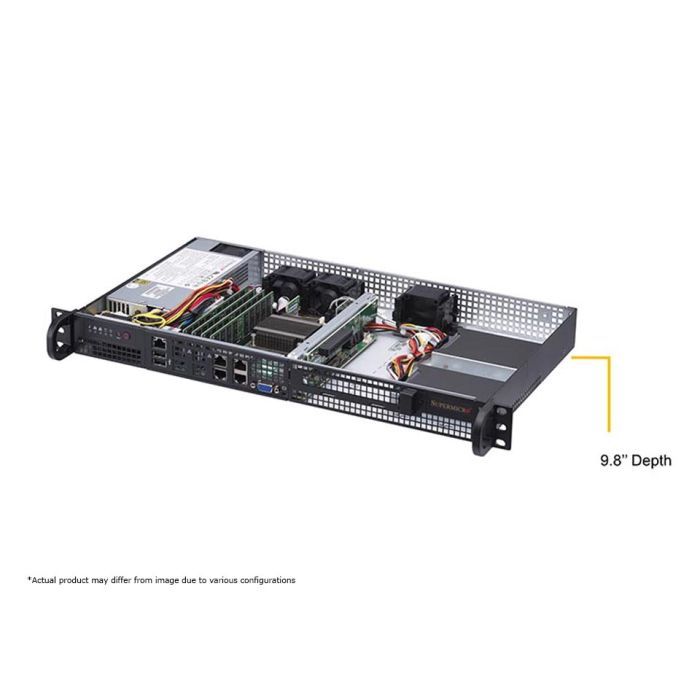

Depth
  • 9.8″ (249mm)
Weight
  • Net Weight: 8 lbs (3.62 kg)
  • Gross Weight: 12 lbs (5.44 kg)
Available Colors
  • Black

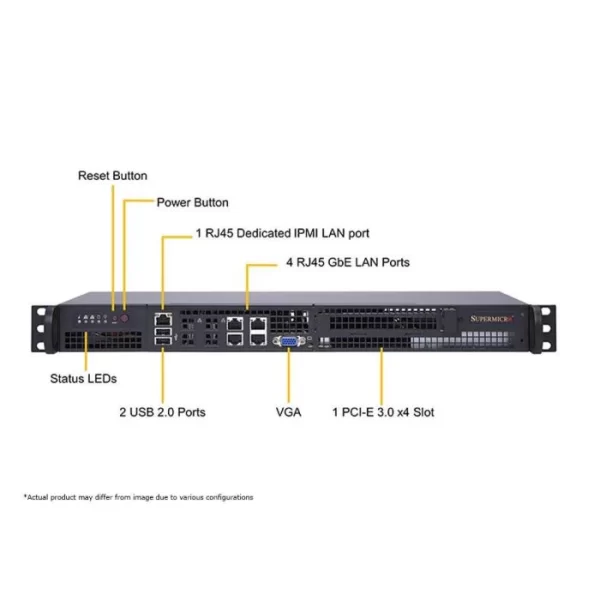

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Information LED (temp., status)
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x4 slot
  • 1 M.2 PCI-E 3.0 x2, M Key 2242/2280
Drive Bays
HDD
  • 1x 3.5″ or 4x 2.5″ internal hard drive bays (optional) *
System Cooling
Fans
  • 2x 40x28mm 4-PIN PWM Fan, Optional 1x 40x28mm 4-PIN PWM Fan
Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
  • 100 – 240V, 50-60Hz, 2.6 Amp Max
+5V
  • 8.0 Amp (max.)
+5V standby
  • 2.0 Amp (max.)
+12V
  • 16 Amp (max.)
-12V
  • 0.5 Amp (max.)
+3.3V
  • 8.0 Amp (max.)
Certification Gold Level Certified
Gold Certified
System BIOS
BIOS Type
  • AMI UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • ACPI 5.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
