Supermicro SYS-510P-MR-EU 1U Rackmount Mainstream SuperServer (SYS-510P-MR-EU)



Supermicro™’s Mainstream Application Optimized SuperServer® is an optimal entry-level or volume selection for Enterprise IT managers. By choosing the exact model with just the right set of integrated features needed for their applications, customers can save significant amounts on CAPEX, while Supermicro™s energy-efficient server designs will help them save on OPEX.

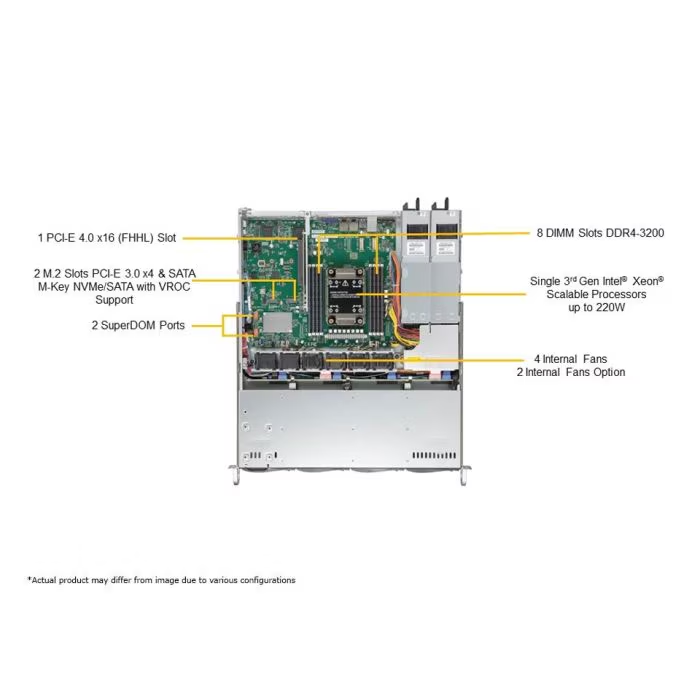

The Supermicro SYS-510P-MR-EU Mainstream SuperServer® supports a single 3rd Generation Intel® Xeon® Scalable processor (up to 220W TDP) and up to 3TB (4x 256GB DRAM and 4x 512GB PMem) 8 DIMM slots. Additionally, the SYS-510P-MR-EU has 2 NVMe/SATA M.2 onboard and includes 4 hot-swap 3.5″ SATA drive bays with the option to support SAS3 with an additional SAS controller.

SYS-510P-MR

This Mainstream server is capable of using 1 PCI-E 4.0 x16 full-height half-length expansion slot, plus supports up to 2 RJ45 1GbE ports and 1 RJ45 dedicated IPMI port for KVM over dedicated LAN.

The Supermicro Mainstream Application Optimized product family supports a wide variety of Mainstream server applications, including general-purpose, email, firewall, print, and web hosting, in many attractive and cost-effective form factors.



  • Key Features/Applications: Small Business, Web/Hosting Application, Email/Firewall/Print Server
  • CPU: Single 3rd Generation Intel® Xeon® Scalable Processor, up to 32 Cores
  • Chassis: 1U
  • Drive: Up to 4x 3.5″ NVMe/SATA + 2x M.2 NVMe + 2x 2.5″ Peripheral Drive Bays
  • RAM: Up to 2TB of DDR4 ECC RDIMM/LRDIMM in 8 DIMM Slots
  • GPU: Up to 1 Single-Width GPU
  • Network Ports: 2x 1GbE RJ45 LAN Ports
SKU: SYS-510P-MR-EU Categorii: , , , , , , , ,
SuperServer SYS-510P-MR Standard version with PWS-407P-1R (Platinum Level)
SuperServer SYS-510P-MR-EU European version with PWS-602A-1R (Titanium Level)
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache
Note
  • Supports up to 220W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T400
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(VROC HW key required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 1GbE with Intel® I350

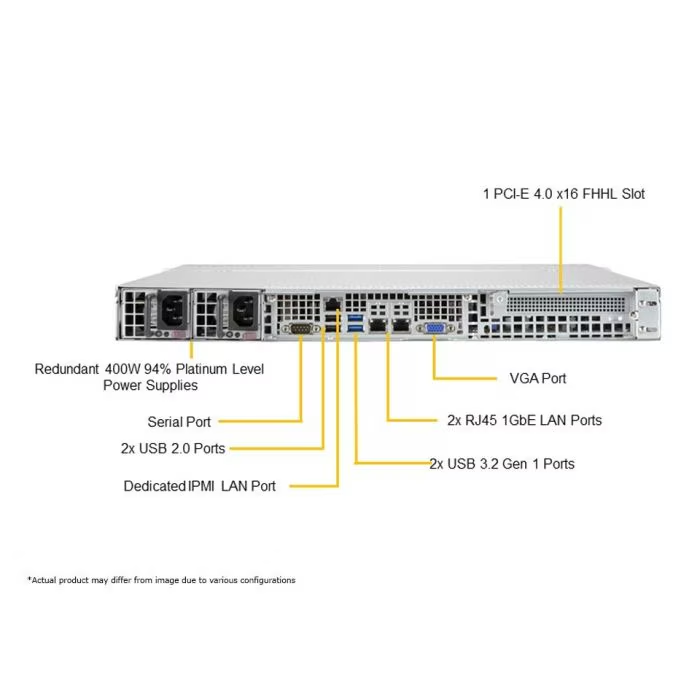

Input / Output
LAN
  • 2 RJ45 1 GbE LAN port(s)
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
USB
  • 4 USB 2.0 port(s) (header)
  • 2 USB 3.2 Gen1 Type-A port(s) (rear)
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen1 port(s) (Header)
  • 1 USB 3.2 Gen1 Type-A port(s)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
  • 1 COM port(s) (Header)
DOM
  • 2 SuperDOM (Disk on Module) port(s) with built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MF2TS-R407CBP2

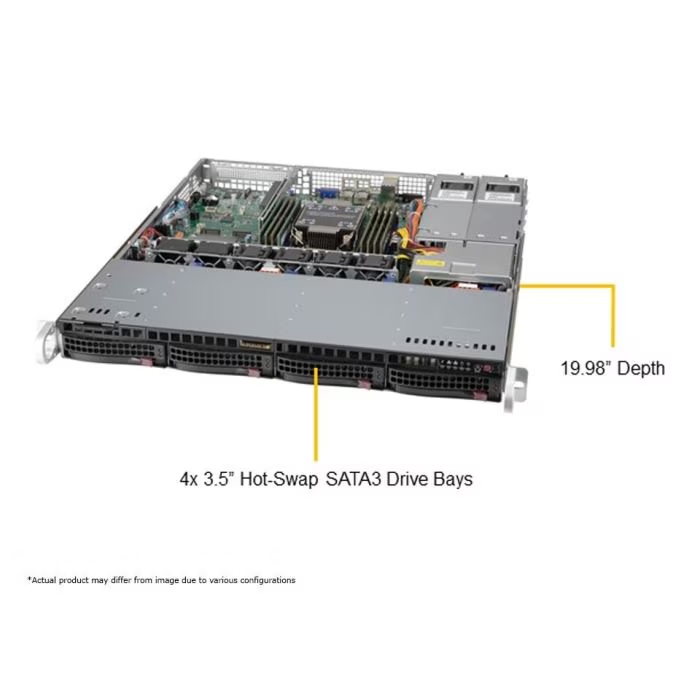

Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 19.98″ (507 mm)
Package
  • 8.5″ (H) x 24″ (W) x 29.5″ (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Color
  • Black

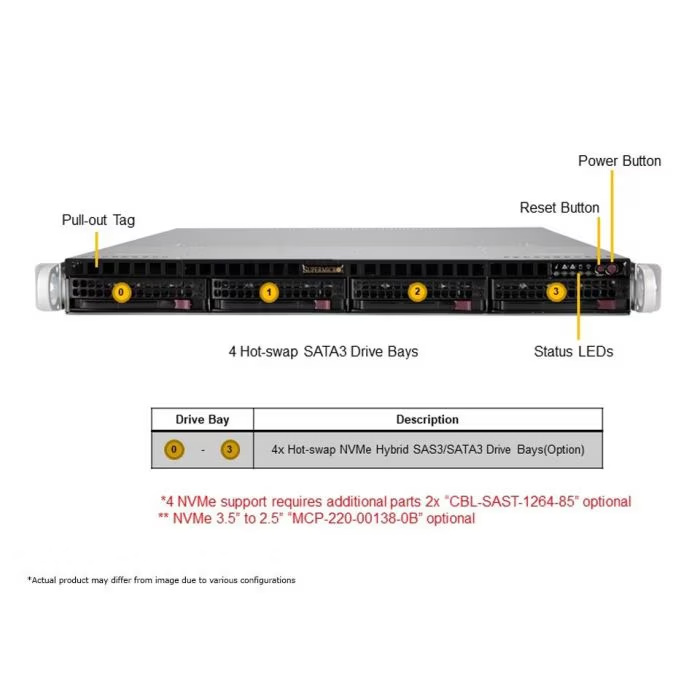

Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110)
Peripheral Bays
  • 2 2.5″ bay(s) (optional)
System Cooling
Fans
  • 2 AOC cooling Fan(s) (optional)
  • 4 middle cooling PWM 40x40x28mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 400W
Description
  • 2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
  • 54.5 x 40.25 x 220 mm
AC Input
  • 400W: 100-240Vac / 50-60Hz
    400W: 200-240Vdc / 50-60Hz
+12V
  • Max: 33A / Min: 0A (100Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
