Supermicro SYS-510T-WTR-EU 1U Rackmount UP SuperServer (SYS-510T-WTR-EU)



Powerful Performance and Versatility

The Supermicro SuperServer SYS-510T-WTR-EU is designed to meet the rigorous demands of virtualization, enterprise servers, cloud computing, and data center optimization. With support for the Intel® Xeon® E-2300 series, this server delivers powerful performance for your critical workloads. Seamlessly run multiple virtual machines, handle complex data processing, and optimize your enterprise applications with ease.

Space-Efficient Design for Maximum Scalability

The 1U rackmount chassis of the SYS-510T-WTR-EU is purpose-built to optimize space utilization without compromising on performance. Its compact form factor allows for easy integration into your existing infrastructure, while providing the scalability to meet your evolving business needs. Experience the perfect balance between performance and space efficiency.

SYS-510T-WTR

Flexible Storage and Memory Options

With 4 hot-swappable 3.5” SATA3 drive bays and the option for SAS3 with an additional controller card, this server offers versatile storage configurations to suit your data requirements. Additionally, it features onboard NVMe M.2 slots, providing fast and efficient storage solutions. Take advantage of up to 128GB of DDR4 ECC UDIMM memory for seamless multitasking and improved application responsiveness.

Reliable and Energy-Efficient

Equipped with a redundant 500W Titanium Level Power Supply, the SYS-510T-WTR-EU ensures uninterrupted performance and reduces the risk of downtime. Experience peace of mind knowing your critical applications are powered by a reliable and energy-efficient server.



  • Key Features/Applications: Virtualization, Enterprise Server, Cloud Computing, Data Center Optimized
  • CPU: Single Intel® Xeon® E-2300 Series or Intel® Pentium® Processor, up to 8 Cores
  • Chassis: 1U
  • Drive: Up to 4x 3.5″ Hot-Swap SATA + 2x M.2 Onboard NVMe (with Xeon CPU) or 1x M.2 Onboard NVMe (with Pentium CPU) Drive Bays
  • RAM: Up to 128GB of DDR4 ECC UDIMM in 4 DIMM Slots
  • Network Ports: 2x 10GbE RJ45 LAN Ports



SKU: SYS-510T-WTR-EU Categorii: , , , , , , , ,
Product SKUs
SuperServer SYS-510T-WTR Standard version with PWS-504P-1R (Platinum Level)
SuperServer SYS-510T-WTR-EU European version with PWS-601A-1R (Titanium Level)
Processor
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T4, RTX A4000, RTX A2000
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C256
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550

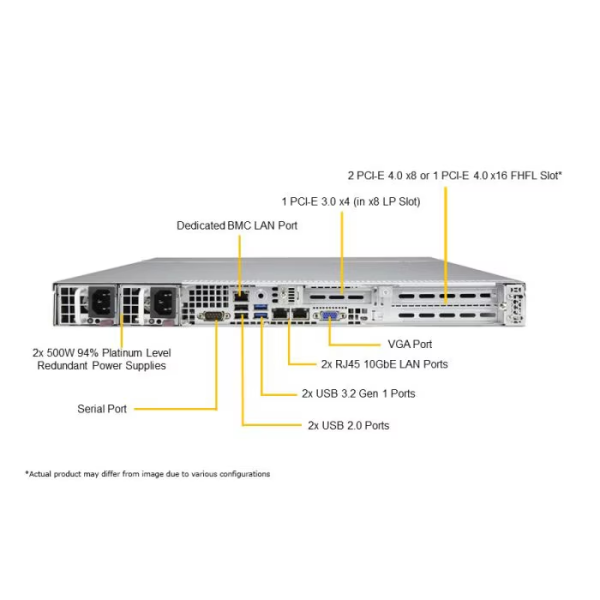

Input / Output
LAN
  • 2 RJ45 10 GbE LAN port(s)
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
USB
  • 4 USB 2.0 port(s) (header)
  • 2 USB 3.2 Gen1 Type-A port(s) (rear)
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen1 port(s) (Header)
  • 1 USB 3.2 Gen2 Type-A port(s) (Header)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
  • 1 COM port(s) (Header)
DOM
  • 2 SuperDOM (Disk on Module) port(s) with built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 6 + 2 + 1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TS-R504WBP7
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 8.5″ (H) x 23.5″ (W) x 33.7″ (D)
Weight
  • Gross Weight: 48 lbs (21.77 kg)
  • Net Weight: 24 lbs (10.89 kg)
Available Color
  • Black

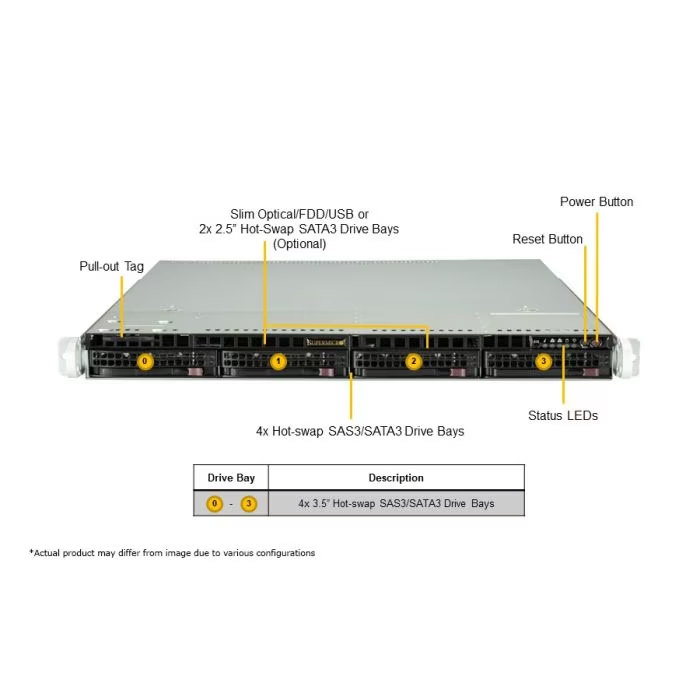

Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
  • UID button

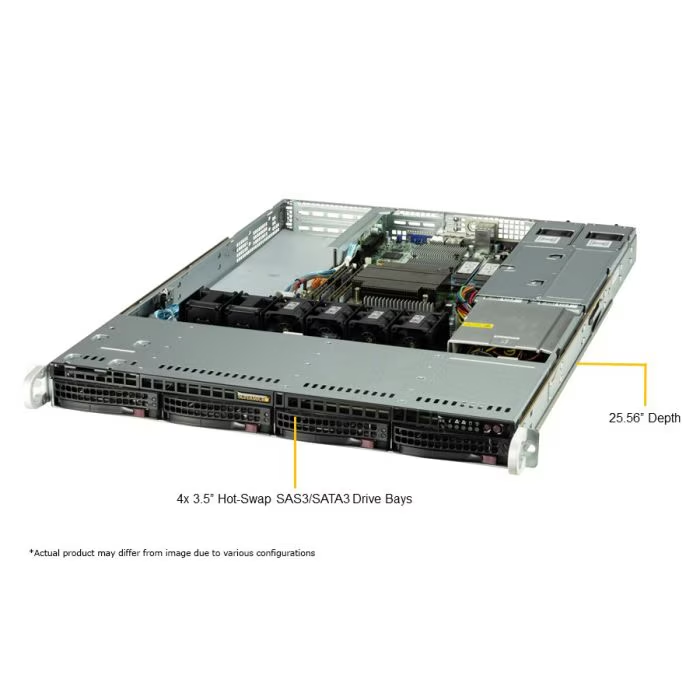

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 front hot-swap 3.5″ SAS*/SATA drive bay(s)
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280/22110)
Peripheral Bays
  • 2 2.5″ bay(s)
System Cooling
Fans
  • 2 AOC cooling Fan(s) (optional)
  • 4 counter-rotation PWM 40x40x56mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 500W
Description
  • 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
  • 54.5 x 40.25 x 320 mm
AC Input
  • 500W: 100-240Vac / 50-60Hz
+12V
  • Max: 42A / Min: 0.5A (100Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Platinum Level Certified94%+  Platinum Level[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
