Supermicro SYS-511R-W 1U Rackmount X13 WIO SuperServer (SYS-511R-W)

The state-of-the-art Supermicro SYS-511R-W 1U WIO SuperServer is an exceptional choice for businesses looking for a premium mainstream server with the best specs. With its newly designed top-loading expansion slot, a double-width GPU can be fitted in its 1U chassis. It can even double as a rackmount workstation, offering great versatility and value. Windows 11 is certified to use on this server.

Powerful Performance

The Supermicro SYS-511R-W is built with a Single Socket V and is powered by the Intel® Xeon® E-2400 processor, capable of handling record high 5.6GHz turbo frequency while keeping the power envelope the same at 95W. Delivering exceptional performance and over 15% performance improvement over the E-2300 series CPU.

Optimized Memory

Featuring 4 DIMM slots, the server supports up to 128GB ECC UDIMM DDR5-4400 memory. This high-speed, error-correcting memory setup enhances overall server efficiency and reliability.

Flexible Expansion

With WIO in its name, SYS-511R-W offers rare, full height, full length (FHFL) expansion slots in the segment. (1x PCIe 5.0 x16 or 2x PCIe 5.0 x8). An additional 1x PCIe 4.0 x4 (in x16 LP) expansion slot is excellent for SAS controller cards or 10G NICs.

Enhanced Networking & I/O

Networking needs are met with onboard 2x 1G Base-T LAN ports. The server includes 5x USB 3.2 Gen 2×1 ports (2 rear, 2 headers, 1 Type A) and 6x USB 2.0 ports (2 rear, 4 headers), along with 1x VGA port (rear) and 2x Serial ports (1 rear, 1 header), ensuring a wide range of connectivity options.

Advanced System Management

Equipped with a Dedicated IPMI Port (AST2600), the server includes an integrated management tool (IPMI 2.0, KVM/media over LAN) with a dedicated LAN port for efficient system management.

Versatile Drive Bays

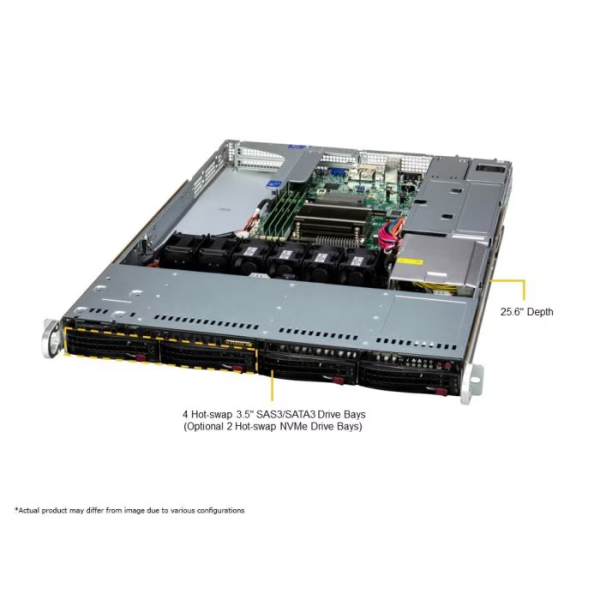

The server has 4 Hot-Swap SATA/SAS drive bays, with a standard configuration of 4x SATA, an option for SAS3 via AOC, and the first ever 2x hybrid PCIe 4.0 x4 NVMe drive support in the family. Additionally, it supports 2x M.2 PCIe 4.0 x4 M-Key NVMe (2280/22110), offering versatile and high-speed storage options.

Efficient System Cooling

To maintain ideal operating conditions, the server is equipped with 4x 40x40x56mm Counter-Rotating PWM fans, with an option to add 2 more for enhanced cooling.

Reliable Power Supply

A 600W High-efficiency power supply (Titanium Level 96%) is included, with options for redundancy to ensure uninterrupted server operation.
