Supermicro SYS-520P-WTR-EU 2U Rackmount WIO SuperServer (SYS-520P-WTR-EU)



Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

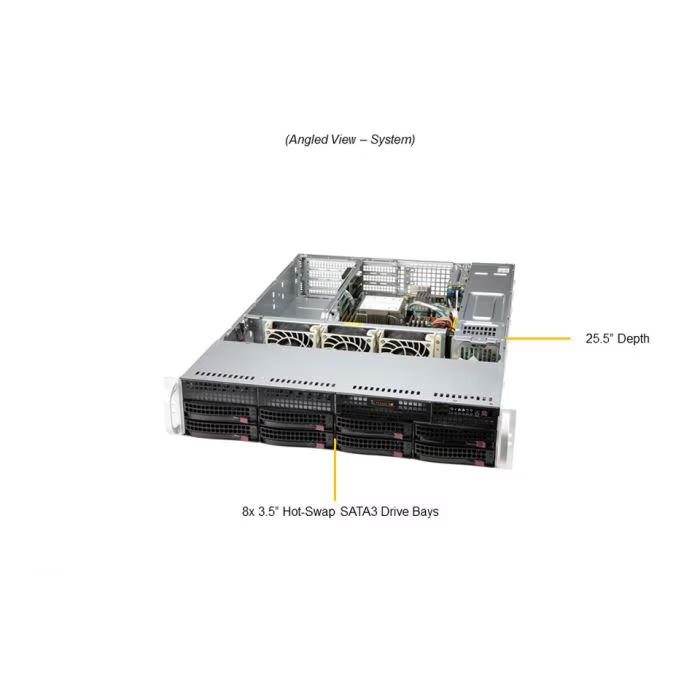

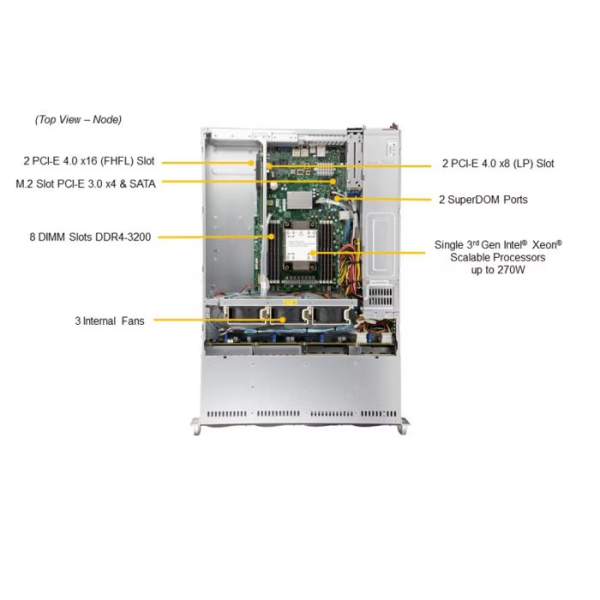

The Supermicro SYS-520P-WTR-EU WIO SuperServer® supports a single Intel® Xeon® Scalable Processor (up to 36 cores) and 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM memory in 8 DIMM slots. The SYS-520P-WTR-EU includes 8 hot-swappable 3.5” SATA3 drive bays which makes changing hard drives easy without needing to open up the server. In addition, this WIO supports SAS3 with an additional SAS controller card, optional 2x 2.5” Gen4 NVMe drives at the rear; Onboard 1x NVMe/SATA M.2.  It supports up to 2 SuperDOM with built-in power which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs).

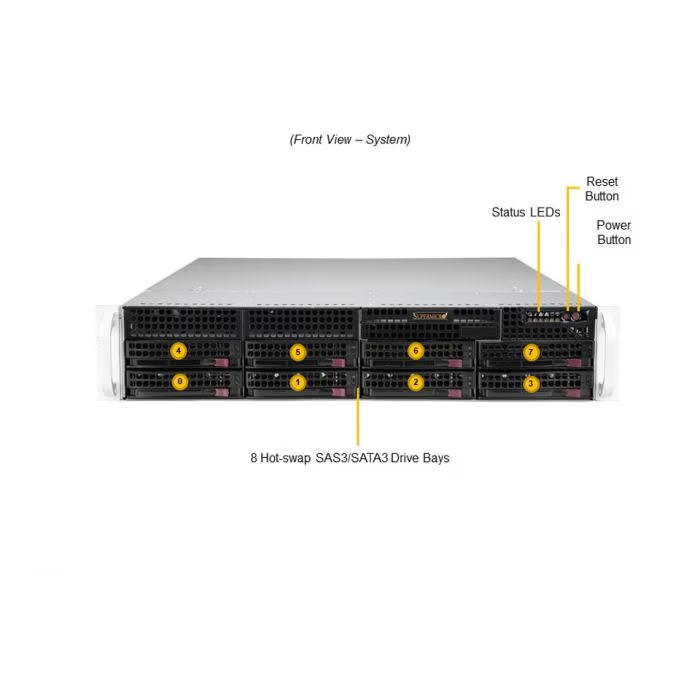

SYS-520P-WTR Front View

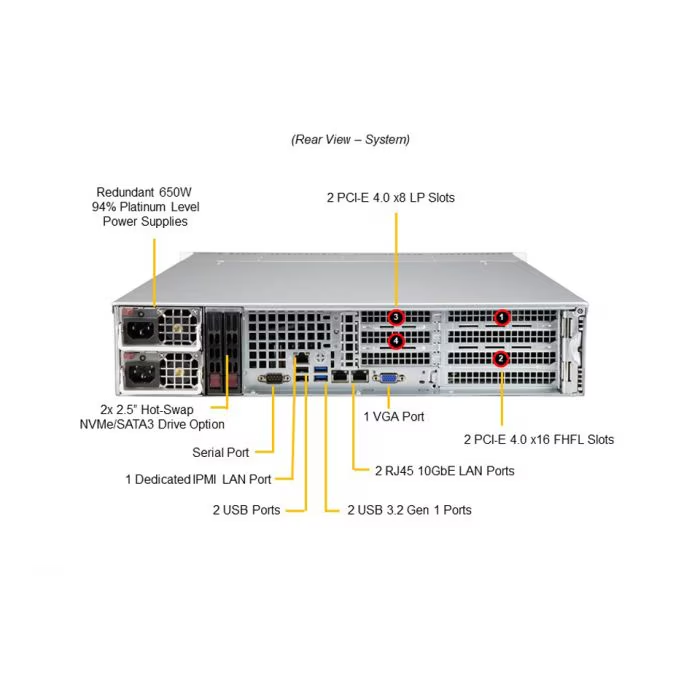

The 2U WIO server supports 4 add-on cards (via included riser card) and comes with onboard dual 10G Base-T LAN ports with Intel® Ethernet Controller X550. To power the entire system, there is a 650W titanium power supply with over a 96% efficiency rating.

Supermicro WIO SuperServers are optimized for General Purpose, ERP/MRP, and Network and Security Appliance Applications.



  • Key Features/Applications: Data Center Optimized, Database Processing and Storage, Network Appliance
  • CPU: Single 3rd Gen Intel® Xeon® Scalable Processor, up to 40 Cores
  • Chassis: 2U
  • Drive: Up to 8x 3.5″ SATA + 1x M.2 NVMe/SATA + 2x 2.5″ SATA Drive Bays
  • RAM: Up to 3TB of DDR4 ECC RDIMM/LRDIMM in 8 DIMM Slots
  • Network Ports: 2x 10GbE RJ45 LAN Ports





SKU: SYS-520P-WTR-EU Categorii: , , , , , , , , , ,
Product SKUs
SuperServer SYS-520P-WTR Standard version with PWS-609P-1R2 (Platinum Level)
SuperServer SYS-520P-WTR-EU European version with PWS-802A-1R (Titanium Level)
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • Intel® Xeon® Scalable Processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T400, T1000, RTX A4000, RTX A2000
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550
Input / Output
LAN
  • 2 RJ45 1 GbE LAN port(s)
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 port(s) (header)
  • 2 USB 3.2 Gen1 Type-A port(s) (rear)
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen1 port(s) (Header)
  • 1 USB 3.2 Gen1 Type-A port(s)
Video
  • 1 VGA 2.0 port(s)
Serial
  • 1 COM port(s) (Rear)
  • 1 COM port(s) (Header)
DOM
  • 2 SuperDOM (Disk on Module) port(s) with built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R609WP
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 11″ (H) x 26.5″ (W) x 34″ (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 34 lbs (15.42 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 3.5″ SAS*/SATA drive bay(s)
  • Option A: Total 10 bay(s)
    • 8 front hot-swap 3.5″ SAS*/SATA drive bay(s)
    • 2 rear hot-swap 2.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110; VROC required for RAID)
System Cooling
Fans
  • 3 heavy duty PWM 80x80x38mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 650W
Description
  • 2x 650W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 600W: 100-127Vac / 50-60Hz
    650W: 200-240Vac / 50-60Hz
    650W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 50A / Min: 0A (100Vac-127Vac)
    Max: 54.16A / Min: 0A (200Vac-240Vac)
    Max: 54.16A / Min: 0A (200Vdc-240Vdc) (for CCC only)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
