Supermicro SYS-551A-T 5U Full-Tower X13 SuperWorkstation (SYS-551A-T)



Next-Gen Workstation for Creative Professionals

Supermicro X13 workstations bring data center CPU processing power and PCIe expandability to the desktop for AI, simulation, metaverse/Omniverse, and 3D media applications. Fuel your creative workflows and boost productivity with a single Intel® Xeon® W-3400 processor combined with lightning-fast M.2 NVMe PCIe 5.0 storage and up to 4TB of DDR5 RAM. The SYS-551A-T SuperWorkstation offers configuration flexibility to meet your complex design and engineering demands.

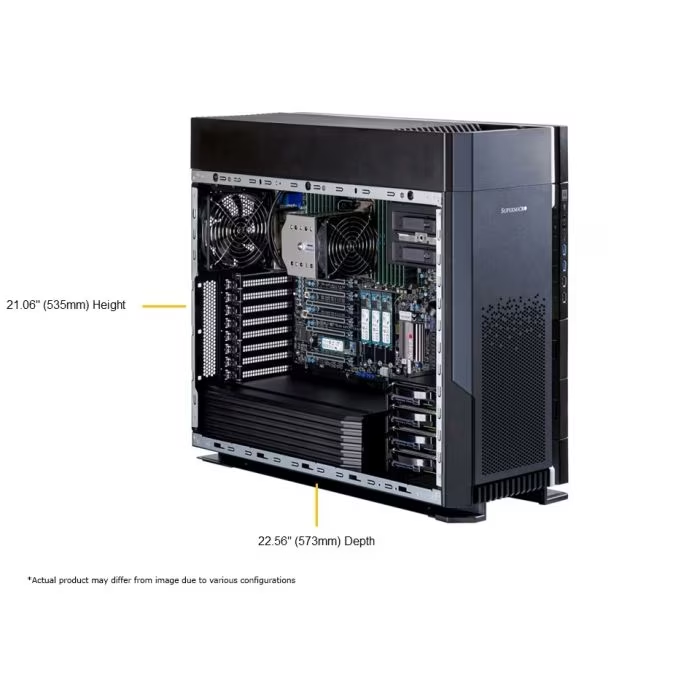

SYS-551A-T Side

SYS-551A-T delivers optimal performance for creative professionals using leading design software for applications with simulations, rendering and virtual production workflows. The SYS-551A-T SuperWorkstation is designed for product design and engineering simulation across the product manufacturing , engineering, and media & entertainment industries. This workstation easily tackles compute and graphics-intensive workloads with support for up to 4 double-width GPUs. Additionally, opt for liquid cooling for a more efficient and cool operation.



  • Key Features/Applications: Product Design and Engineering Simulation
  • CPU: Single Intel® Xeon® W-3400 Processor, up to 56 Cores
  • Chassis: Full-Tower / 6U Rackmount (Optional)
  • Drive: Up to 4x 3.5″ SATA Drive Bays
  • RAM: Up to 4TB of DDR5 ECC RDIMM/LRDIMM in 16 DIMM Slots
  • Network Ports: 1x 10GbE RJ45 LAN Port + 1x 1GbE RJ45 LAN Port, Share with IPMI
SKU: SYS-551A-T Categorii: , , , , , , , ,
SuperWorkstation SYS-551A-T
Processor
CPU
  • Single Socket E (LGA-4677)
  • Intel® Xeon® W-3400 processors
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 quad-width or 2 triple-width or 4 double-width or 4 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, RTX 6000 Ada Generation, RTX 4090, RTX 4080
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 2TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® W790
Network Connectivity
  • 1 RJ45 10GbE with Marvell® AQC113
  • 1 RJ45 1GbE with Intel® I210-AT

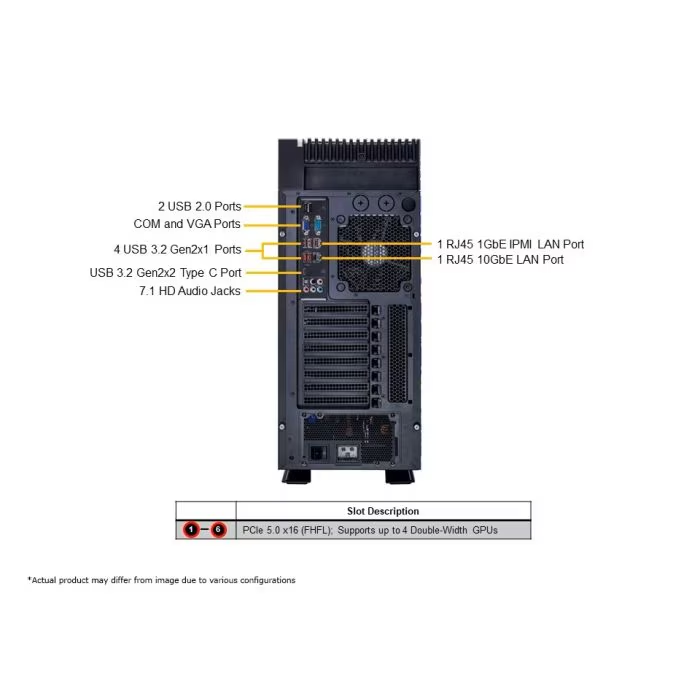

Input / Output
USB
  • 2 USB 2.0 port(s) (rear)
  • 2 USB 2.0 Type-A port(s) (front)
  • 2 Type-A port(s) (Front)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI 6.0 Power Management
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Chassis
Form Factor
  • 5U (Full Tower) Rackmount
Model
  • CSE-GS7A-2000B
Dimensions and Weight
Height
  • 21.06″ (535 mm)
Width
  • 8.74″ (222 mm)
Depth
  • 22.56″ (573 mm)
Package
  • 27.8″ (H) x 14.6″ (W) x 28.5″ (D)
Weight
  • Gross Weight: 39 lbs (17.74 kg)
  • Net Weight: 20 lbs (14.9 kg)
Available Color
  • Black

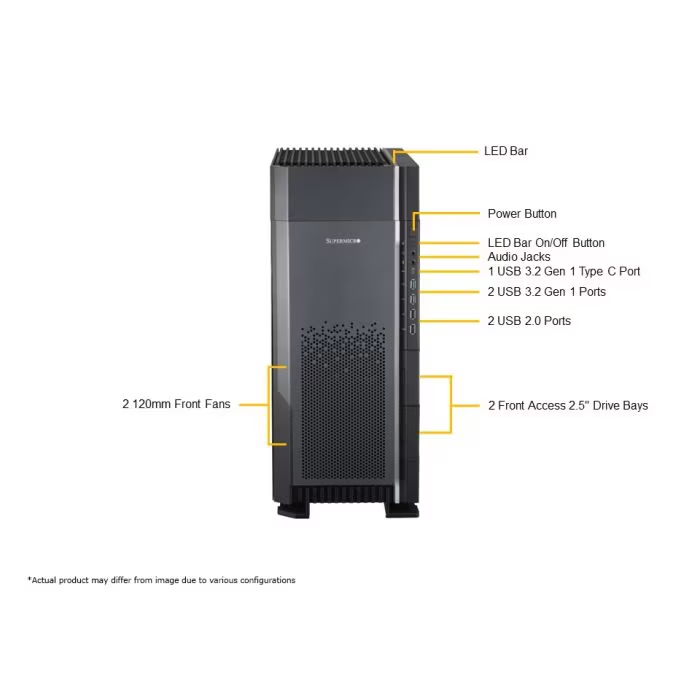

Front Panel
Port
  • Audio Jacks
  • USB 2.0
  • USB 3.0 Gen 1-Type-A
  • USB 3.0 Gen 1-Type-c
Buttons
  • LED light bar ON/OFF
  • Power On/Off button
LED
  • Power status LED
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 internal fixed 3.5″ SATA drive bay(s)
M.2
  • 4 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110)
Peripheral Bays
  • 2 5.25″ bay(s)
System Cooling
Fans
  • 1x 120mm Fan(s)
  • 2x 120mm Fan(s)
Power Supply
QtyWithPsu
  • 1x 2000W
Description
  • 1x 2000W Platinum Level (92%) power supply
Dimension (WxHxL)
  • 150 x 86 x 200 mm
AC Input
  • 1200W: 100-115Vac / 50-60Hz
    1500W: 115-200Vac / 50-60Hz
    2000W: 200-264Vac / 50-60Hz
+12V
  • Max: 100A / Min: 0.1A (100Vac-115Vac)
    Max: 125A / Min: 0.1A (115Vac-120Vac)
    Max: 166.6A / Min: 0.1A (200Vac-264Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • 24pin ATX
Certification
  • Platinum Level Certified  Platinum Level[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
